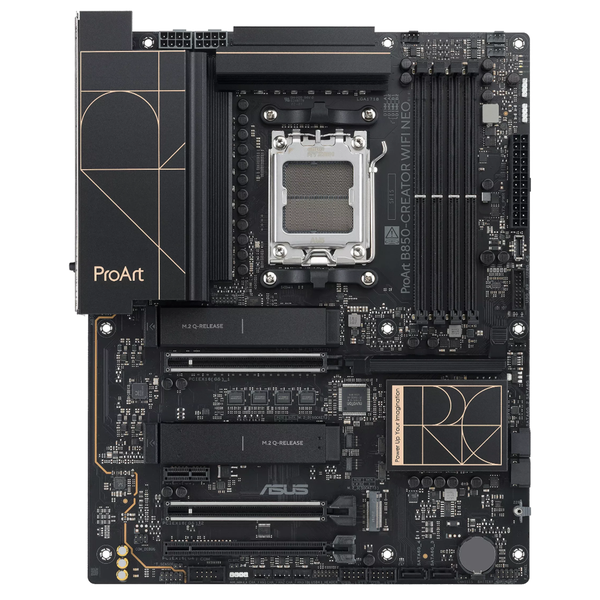

ProArt B850-Creator WiFi Neo
The ProArt B850-Creator WiFi Neo is designed to empower creators at every level, delivering optimized performance for the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, as well as AMD EPYC™ 4005 Series CPUs. Featuring a robust 14+2+1 power stage design, DDR5 support, PCIe® 5.0 expansion, and ultrafast connectivity—including dual 5G Ethernet and WiFi 7—it provides a reliable foundation for demanding creative workloads.
With a refined aesthetic that reflects a professional and elegant design philosophy, the motherboard showcases layered black tones accented with metallic gold details. This platform seamlessly combines performance, connectivity, and design, delivering the power required for today's advanced AI PC applications.

Ultrafast Networking Two 5G Ethernet ports
Two 5G Ethernet connectivity provides flexible network configuration for professional environments, enabling creators to allocate dedicated bandwidth for online connectivity and local storage systems to enhance workflow efficiency, data integrity, and system reliability.
WiFi 7
The revolutionary WiFi 7 is faster than standard WiFi 6*, thanks to tech like 160 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

USB Type-C® DisplayPort (DP Alt Mode)
This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 30 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display.

Quick charging your USB devices
USB 20Gbps Type-C front-panel connector with Quick Charge 4+
This header boosts data transfers with speeds of up to 20 Gbps. It also features Quick Charge 4+, which can quickly charge your pen display, tablet or mobile phone at up to 30 watts.

USB4® Support
ProArt B850-Creator WiFi Neo features USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card*, ProArt motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.

Robust Power Design
Designed to meet the needs of high-core-count CPUs, the ProArt B850-Creator WiFi Neo features 14(80A)+2(80A)+1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

AI Cache Boost
Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

ASUS AI Advisor
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

AI Cooling II
Balance the thermals and acoustics of any build with a single click.

PBO Enhancement
By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

Server-Grade DRAM Enhancement
Thanks to an upgraded memory slot layout and PCB design, now enthusiast-grade kits can achieve 9 GT/s on the ProArt B850-Creator WiFi Neo*.
*Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components.

ASUS Enhanced Memory Profile (AEMP)
This exclusive firmware feature for PMIC-restricted memory modules automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

PCIe® Slot Q-Release
A physical lever unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new graphics card or other compatible device.

M.2 Q-Release
The M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.

M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.

The Power of Minimalist Design
A spark of inspiration can breathe life into a concept that leads to a masterpiece. ProArt is a comprehensive ecosystem providing professional creators with a stable foundation for your inspiration. These custom workstations feature award-winning ProArt motherboards, graphics cards, CPU coolers and chassis, pairing with ProArt displays to accelerate your creative workflow and bring the boldest visions and ideas to life.

Customize Your Personal Settings
ProArt Creator Hub is your personal portal to monitor your PC status, personalize settings or optimize your workflow. It features an intuitive overview dashboard, with quickly switchable fan profiles and performance modes.
WorkSmart
To streamline your workflow, you can select up to 8 apps to be launched at the same time with a single desktop shortcut.

Upgraded UEFI BIOS
BIOS Q-Dashboard simplifies system setup with a clear, visual interface, while expanding the capacity to 64MB enables a more powerful experience and extended compatibility with current and future AM5 processors.

ASUS MB Manager
ASUS MB Manager delivers fast, fluid, and intuitive control over essential features, offering a smooth experience for monitoring system stats, accessing fan cooling controls, and fine-tuning advanced WiFi settings. It also works seamlessly with Armoury Crate to provide an even more comprehensive system management experience.

ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and perform optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. Users are invited to install ASUS DriverHub after OS installation.

ASUS GlideX
A cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets and smartphones via USB or WiFi. It is compatible with Windows, macOS, Android and iOS.

Trusted Stability
ProArt B850-Creator WiFi Neo is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset
AMD B850 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to
8400+(OC)/8200+(OC) MT/s with Ryzen™ 9000 Series Processors,
9000+(OC)/8600+(OC) MT/s with Ryzen™ 8000 Series Processors,
8000+(OC)/8000+(OC) MT/s Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered DIMM*
Supports up to 5600MT/s with AMD EPYC™ 4005 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
* Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components.
* XMP/EXPO/AEMP Profiles: Rated memory module speeds require a BIOS performance profile setting. Results may vary according to system components and can be impacted when four DIMM slots are used.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
4 x DIMM slots, max. 256GB, DDR5
Supports up to
8400+(OC)/8200+(OC) MT/s with Ryzen™ 9000 Series Processors,
9000+(OC)/8600+(OC) MT/s with Ryzen™ 8000 Series Processors,
8000+(OC)/8000+(OC) MT/s Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
* Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components.
* XMP/EXPO/AEMP Profiles: Rated memory module speeds require a BIOS performance profile setting. Results may vary according to system components and can be impacted when four DIMM slots are used.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Graphics
1 x DisplayPort**
1 x HDMI™ port***
1 x USB 10Gbps port (USB Type-C®) supports DisplayPort video output**
* Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K @ 30Hz as specified in DisplayPort 1.4.
*** Supports 4K @ 60Hz as specified in HDMI 2.1.
****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)***
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)****
1 x PCIe 4.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
*** When you use both PCIEX16(G5)_1 and PCIE16(G5)_2, they will run at x8 each.
**** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
AMD Ryzen™ 9000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)***
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)****
1 x PCIe 4.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
*** When you use both PCIEX16(G5)_1 and PCIE16(G5)_2, they will run at x8 each.
**** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 & 9000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
4 x SATA 6Gb/s ports
* The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 & 9000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
4 x SATA 6Gb/s ports
* The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
RAID Support
AMD RAIDXpert2 Technology
Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
Ethernet
2 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7 (Realtek® RTL8922AE)
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth® (suppports LE Audio)***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 8 ports)
2 x USB 10Gbps ports (1 x Type-C® +1 x Type-C® + Alt mode)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)**
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® output (USB Type-C Current): max. 5V/3A.
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
*** Once an EPYC CPU is installed, the onboard audio function will be disabled.
Back Panel I/O Ports
2 x USB 10Gbps ports (1 x Type-C® + 1 x Type-C® with Alt mode)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
2 x Realtek 5Gb Ethernet ports
3 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
1 x Thunderbolt™ (USB4®) header
1 x Thermal Sensor header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable RGB Gen2 headers
Bespoke Motherboard Design & Business Focused Features
- 24/7 reliability
- Overcurrent protection
Front Panel USB 20Gbps with Quick Charge 4+ Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output: 5V/9V max. 3A, 12V max 2.5A, 15V max2.0A
- Compatible with PD3.0
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- MLO Wizard
ASUS DriverHub
- ASUS MB Manager
- ASUS AI Advisor
- ASUS CPU-Z
-ASUS GlideX
-ProArt Creator Hub
-CreatonFirst
-USB Wattage Watcher
-TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
Integrated WiFi Driver Support
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.
** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.
Remote Management Features
IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS
64MB (512Mb) Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Slide package (2IN1)
1 x Rubber package for M.2 (2IN1)
1 x Screw for M.2 Q-Latch(1IN1)
1 x ProArt accessory bag
Documentation
1 x ACC Express activation key card
1 x Quick start guide
Operating System
AMD EPYC™ 4005 Series: Windows Server* 2025/2022
AMD Ryzen™ Series: Windows 11
*Wi-Fi and Bluetooth have limited support under Windows Server OS.
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
