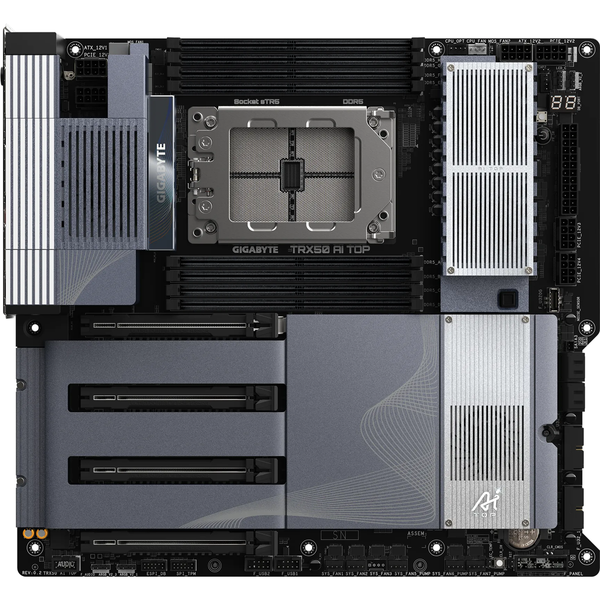

Gigabyte TRX50 AI TOP 2B For AMD Ryzen Threadripper Pro 9000 / 7000 WX Series ATX Motherboard
- CPU
- AMD Socket sTR5, support for:
- AMD Ryzen™ Threadripper™ PRO 9000-WX Series Processors/ AMD Ryzen™ Threadripper™ 9000 Series Processors/ AMD Ryzen™ Threadripper™ PRO 7000-WX Series Processors/ AMD Ryzen™ Threadripper™ 7000 Series Processors
- (Go to GIGABYTE's website for the latest CPU support list.)
- Chipset
- AMD TRX50″
- Memory
- Support for DDR5 ECC Registered memory modules (RDIMM/RDIMM-3DS)
- 8 x DDR5 DIMM sockets supporting up to 2 TB of system memory
- - AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX Series Processors support 8-Channel memory architecture
- - AMD Ryzen™ Threadripper™ 9000/7000 Series Processors support Quad Channel memory architecture
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
- (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
- Audio
- Realtek® ALC4080 CODEC (rear panel audio)
- - Support for DTS:X® Ultra
- - High Definition Audio
- - 2-channel
- Realtek® ALC897 CODEC (front panel audio)
- LAN
- 2 x Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps)
- Wireless Communication module
- Qualcomm® Wi-Fi 7 QCNCM865″
- - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- - BLUETOOTH 5.3″
- - Support for 11be 320MHz wireless standard
- (Actual data rate may vary depending on environment and equipment.)
- Expansion Slots
- 3 x PCI Express x16 slots (PCIEX16_1/PCIEX16_2/PCIEX16_3), integrated in the CPU:
- - AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX Series Processors support PCIe 5.0 x16 mode
- - AMD Ryzen™ Threadripper™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
- (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.)
- 1 x PCI Express x16 slot (PCIEX16_4), integrated in the CPU:
- - AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX/9000 Series Processors support PCIe 5.0 x16 mode
- - AMD Ryzen™ Threadripper™ 7000 Series Processors support PCIe 4.0 x16 mode
- Note: Supports consumer-grade graphics cards with built-in cooling solution only.
- Storage Interface
- 3 x M.2 connectors (M2C_CPU/M2B_CPU/M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- - AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX/9000 Series Processors support PCIe 5.0 x4/x2 SSD
- - AMD Ryzen™ Threadripper™ 7000 Series Processors support PCIe 4.0 x4/x2 SSD
- 1 x M.2 connector (M2D_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- - AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX Series Processors support PCIe 5.0 x4/x2 SSD
- * The M2D_CPU connector will become unavailable when using the AMD Ryzen™ Threadripper™ 9000/7000 Series Processors.
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
- RAID 0 and RAID 1 support for SATA storage devices
- USB
- CPU:
- - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- Chipset+Intel® USB4® controller:
- - 2 x USB4® USB Type-C® ports on the back panel
- Chipset:
- - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- Chipset+USB 3.2 Gen 1 Hub:
- - 4 x USB 3.2 Gen 1 ports available through the internal USB headers
- Chipset+USB 2.0 Hub:
- - 4 x USB 2.0/1.1 ports available through the internal USB headers
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
- 4 x PCIe power connectors
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 2 x system fan headers
- 4 x system fan/water cooling pump headers
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 4 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
- 2 x USB 3.2 Gen 1 headers
- 2 x USB 2.0/1.1 headers
- 1 x noise detection header
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
- 1 x power button
- 1 x Clear CMOS button
- 1 x reset button
- 1 x reset jumper
- 2 x temperature sensor headers
- 1 x Clear CMOS jumper
- Back Panel Connectors
- 1 x Q-Flash Plus button
- 2 x SMA antenna connectors (2T2R)
- 1 x DisplayPort In port
- 1 x USB4® USB Type-C® port (DisplayPort)
- 1 x USB4® USB Type-C® port
- 6 x USB 3.2 Gen 2 Type-A ports (red)
- 2 x RJ-45 port
- 2 x audio jacks
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
- * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
- Noise detection
- BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0″
- Unique Features
- Support for GIGABYTE Control Center (GCC)
- * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
- Bundled Software
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
- Operating System
- Support for Windows 11 64-bit
- Support for Ubuntu 24.04 LTS
- Form Factor
- E-ATX Form Factor; 30.5cm x 33.0cm
