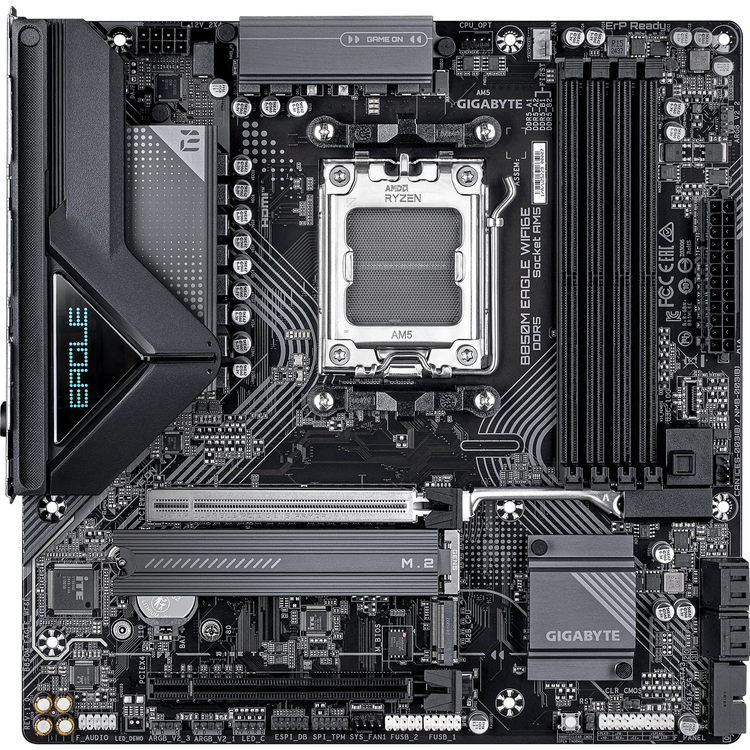

B850M EAGLE WIFI6E
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 8+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5 GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, 2*Displayport
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support


Performance


Thermal


Connectivity


DIY Friendly


Brand New Gaming Experience - X3D Turbo Mode
Unleash New Era Gaming Performance with One-Click Activation.
X3D Turbo Mode's unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode.
One-Click Acceleration :
Enhance Gaming FPS Performance with a single click.
- Enhance Up to 18%
* Differences in performance enhancement depending on the game.
AI Overclocking For peak performance
AORUS AI SNATCH
Unleash Ultimate Performance with One-Click Activation.
* Coming soon


Auto CPU & DDR5 Memory Boost
With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency.
One-Click Acceleration:
Enhance CPU & DDR5 speeds with a single click.
- Real time Analyze
- OC accuracy UP
- EZ to Pro
- Fast AI Performance
- Enhanced Computing Power
- EZ to Peak
- Safe OC
- Less Power Usage
Fast AI Performance
Accelerate AI processing for greater performance
- Up to 8% AI Performance*
- Accelerated AI decision-making
- Boosted reinforcement learning
- Streamlined language processing
*GeekBench AI PRO test conducted with High Bandwidth option manually enabled.
Boost CPU & Memory Performance
Raise system speed and performance.
- Up to 9% CPU & Memory Performance Boost
- Tailored-overclocking for your CPU and memory
- Faster data transfer and application loading
- Improved multitasking performance
- Optimized overall system performance
*Tested by AIDA64 Memory
**Tested by R23 Multi Core
Maximize performance in a snap
Enable users to easily become overclocking experts through a simple interface.
- EZ to Peak
Smart & Safe overclocking
Protect your motherboard through multiple over-temperature and over-current safeguards.
- OTP - Over Temperature Protection
- OCP - Over Current Protection
- OVP - Over Voltage Protection
- OPP - Over Power Protection
- UVP - Under Voltage Protection
- SCP - Short Circuit Protection
Less Power Usage Optimal power-efficiency
- Enhance Up to 9% CP/Per Watt*
With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet.
AI Design For MB signal enhancement
AI-Driven PCB Design
Redefining PCB Design with AI


AI-Driven PCB Technology -Redefining PCB Design with Artificial Intelligence
AI-Driven PCB Technology employs AI algorithms to optimize vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.
- AI-ViaFusion Technology - Optimized vias & pads for signal integrity
- AI-Trace Technology - Smart routing for peak performance
- AI-Layer Technology - Tailored stackups for enhanced functionality
Key Features:
- AI-Generated Design Recipes
- AI-Driven Simulation
- AI-Powered Signal Verification
- Single and cross-layer signal optimization
AI-ViaFusion™ Technology - AI-Powered Excellence in Signal Integrity
Reduction in Signal Reflection Up to 28.2%
AI-ViaFusion, an AI-assisted via optimization technology, determines optimal via and pad sizes across PCB areas. This technology enhances cross-layer signal integrity and transmission efficiency, outperforming traditional design methods.
Best-in-class Signal Quality
- Superior signal transmission efficiency
- Dramatically reduced signal reflection
- Elevated signal quality and reliability
- Enhanced cross-layer PCB signal performance


AI-ViaFusion Technology - AI-Engineered Via Design Formula
AI-ViaFusion is a proprietary AI-generated hybrid via structure design. This PCB technology, validated through AI simulations and testing, aims to enhance high-speed signal transmission.
- Optimized Via Design - Varied via sizes for optimized signal and power paths
- Driven Pad Optimization - Custom pad sizes for performance and production balance
- Precision Impedance Matching - Via & pad sizes selected for optimal signal impedance
Unlock AI-Powered Performance with AI-ViaFusion Technology
- Minimized Insertion Loss - Optimized vias reduce signal loss
- Enhanced Return Loss - Precision impedance matching reduces reflections
- Optimized Eye Diagram - Wider eye opening improves signal integrity
*Eye Diagram: Signal quality assessment tool in digital communications. Overlays bit cycle waveforms, forming eye-like pattern. Larger, clearer opening indicates better signal quality and transmission reliability.


AI-ViaFusion Technology - AI-Driven Revolution in PCB Design
Vias (Vertical Interconnect Access) are critical for multi-layer PCB connectivity. Via size significantly impacts signal integrity, affecting capacitance, reflections, and crosstalk.
AI-ViaFusion Technology optimizes PCB performance through:
- Strategic Via Sizing - Optimized for varied signals across PCB
- Enhanced Impedance Matching - Precise control via machine learning
- Space Optimization - Maximized layout efficiency with signal integrity
AI-Trace Technology -Revolutionizing PCB Routing with AI
AI-Trace Technology transforms PCB design by leveraging AI to optimize trace routing, resulting in enhanced performance and signal integrity.
- Fiber Weave Effect Mitigation - Optimized signal synchronization
- Shielded Memory Routing - Optimized signal shielding and precision
- Impedance-Optimized Topology - Refined traces with minimal resistance
- Isolated Memory Routing - Optimized trace layout and layer separation
- Daisy-Chained Routing - Innovative design eliminates signal bottlenecks
Experience next-gen PCB routing with GIGABYTE's AI-Trace Technology.
Mitigating Fiber Weave Effect with AI-Trace Technology
Fiber Weave Effect in high-speed PCBs stems from varying dielectric constants of epoxy resin and glass fibers, this causes varying signal propagation speeds, leading to signal integrity issues such as crosstalk and jitter. AI-Trace Technology implements innovative routing angles to mitigate this effect.
Benefits of Mitigation:
- Reduces signal distortion
- Improves transmission reliability
- Supports higher data rates
- Enhances overall system stability


AI-Layer Technology -Next-Generation Multi-Layer PCB Design
AI-Layer Technology creates innovative layer materials for multi-layer PCBs, delivering unparalleled performance.
Core Innovation:
AI-Optimized Layer Customized Design
- AI-optimized layer design
- Unique material for each layer
- - AI-verified signal integrity
- Tailored PCB for peak performance
Key Features:
- AI-optimized PCB layer and design material
- Server-Grade Low Loss PCB*
- Enhanced 2X Copper Technology
( * Low Loss for 8-layer PCB model only)


HyperTune BIOS
AI-Driven Advanced BIOS Optimization Technology
HyperTune BIOS - AI-Driven Advanced BIOS Optimization Technology - BIOS Efficiency Boost Up to 95%+
HyperTune BIOS uses AI to optimize signals. The 800 series implements this for peak efficiency, enabling significant memory clock speed boosts and enhanced overall performance.
AI-Enhanced Performance Optimization
- Adaptive signal strength tuning
- AI tuning accuracy exceeds 95%
- Continuous learning advances performance limits
Experience GIGABYTE's AI-Enhanced HyperTune - Unleashing next-gen BIOS performance


Memory - Infinite Memory Performance
EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
* Memory overclocking and XMP/EXPO support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.
- DDR5 Overclocking Up to 8200 MT/s


Sturdy VRM Design - Steady Power
Eagle Series with steady power keeps your AI operation smooth.
Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
8 VCORE Phases DrMOS 60A
Unlock the full power of your multi-core CPU for unmatched performance.
*4+4 phases parallel power design
2 SOC Phase DrMOS 60A
Optimized for integrated GPU performance and memory management within the CPU.
2 MISC Phases Ppak
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.


Cooling - Comprehensive Thermal
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Premium VRM Thermal Armor for Superior Cooling
"Stay Cool, Game On"
High-coverage MOSFETs with integrated molded heatsinks
4X larger surface area for enhanced heat dissipation
- With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.
5 W/mK thermal pad for efficient thermal conductivity
- High-performance thermal pad
- Keeps your system cool and running at peak efficiency
Multi-cut design with channels for improved airflow
- More grooves, more airflow.
- Better airflow, cooler system.
True one-piece heatsink design
- Outperforms competitors' multi-piece solutions
- Integrated design and expanded surface area deliver exceptional cooling performance


M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.


Small Vents, Big Cooling Power
* Test results are for reference only and may vary in different circumstances.
- Up To 7°C lower temperature


Smart Fan 6
Superior cooling performance and whisper-quiet operation for your gaming rig.
High Current Support
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection
Precision Control
- Multiple temperature and fan speed points
- Customizable fan curves for optimal performance
Dual Curve Mode
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences
Fan Stop Technology
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads


Smart Fan 6 BIOS UI
Note: Images are for illustrative purposes and may differ based on your model.
Enhance Fan Curve UI
- 7 adjustable control points
- Expanded speed graph for precise adjustments
Slope/Stair Dual Graph Mode
- Slope mode: Smooth fan speed curve
- Stair mode: Steady speeds within temperature ranges
- Easy switching between modes
Manual Input
- Fine-tune fan speeds for optimal performance
- Precise control for enthusiasts
EZ Tuning
- Quick setup with 4 temperature and fan speed points
- Automatic optimization of fan curve
Fan Curve Profile
- Save personalized settings to BIOS ROM
- Maintain custom settings through BIOS updates


Easy & Friendly - Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.


EZ-Latch Designs
User-friendly designs simplifying the assembly process.
* Images for reference only
M.2 EZ-Latch Click
screwless installation for M.2 heatsink


M.2 EZ-Latch Plus
screwless installation for M.2 SSDs


PCIe EZ-Latch Plus
Easy ejection with single click for graphics cards


Fast-Access Controls
Handy, Revert, Refresh
- EZ Debug Zone
- Q-FLASH Auto Scan


EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.
* Photo for reference only.


Optimal DRAM Installation Indicator
The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.


Q-FLASH Auto Scan
The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.


Q-FLASH PLUS
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.
STEP 1
Connect the 24-pin and 8-pin power cables directly to the motherboard.


STEP 2
Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.


STEP 3
Press the Q-FLASH PLUS button to trigger automatic BIOS updating.


Connectivity - All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.


2.5G LAN
design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Benefit of Wi-Fi 6E
- Dedicated spectrum in 6GHz band for less interference
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience


Wi-Fi 6E bring you the Ultimate VR experience!
Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video.
Wi-Fi 6E compared to Wi-Fi 5 provide…
- 40% faster speed for smoother gaming/streaming experience
- 50% higher resolution for video game related content
- Better battery life for VR devices


Wi-Fi 6E Advantage
Spectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.


Immerse Audio
High-End Audio Capacitors
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.


Audio Noise Guard
Essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.


Ultra Durable™ - Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.
PCIe UD Slot
GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.
- 1.7X stronger shearing test
- 3.2X stronger retention force test
- Reduced Signal Degradation with SMD Technology PCIe UD Slot


UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.
- Solid Pins - Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.


Tailored Computing - Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.
UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.
Multi-Theme
Now users can choose different BIOS themes with one simple click It not only delivers an immersive user experience but also offers a brand new user-friendly theme: Grayscale.


AIO Fan Control
Enable non-windows users to adjust AIO fan speed in the BIOS before entering the OS.
* Supports for AORUS WATERFORCE X II series AIO only


Refined BIOS Interface
GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimized experience through an easy-to-navigate layout and attractive design for optimal usability.


Quick Access Function
GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.


GIGABYTE Control Center
A unified software platform encompassing multiple GIGABYTE product.
RGB Fusion
Personalize the RGB illumination on your motherboard and connected peripherals.
Spotlight your flair
Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.


Varnish your shine
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
* The information provided is for reference; please prioritize your specific setup and specifications.
1x RGB LED header
3x ARGB LED headers
AORUS & HWiNFO Co-branded OSD
AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.


Default AORUS skin
When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well.
*AORUS skin auto-applies when detecting a GIGABYTE motherboard.


Memory Timings Monitor
Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.


Detailed BIOS information
GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.

CPU

AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

AMD B850

Memory

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz
* Support for HDMI 2.1 version and HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.

- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160 @ 144 Hz
* Support for DisplayPort 1.4 version.

(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Realtek® Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors

1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x Q-Flash Plus button
1 x PS/2 keyboard/mouse port
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors (2T2R)
3 x audio jacks

(Note) Actual support may vary by CPU.

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm
