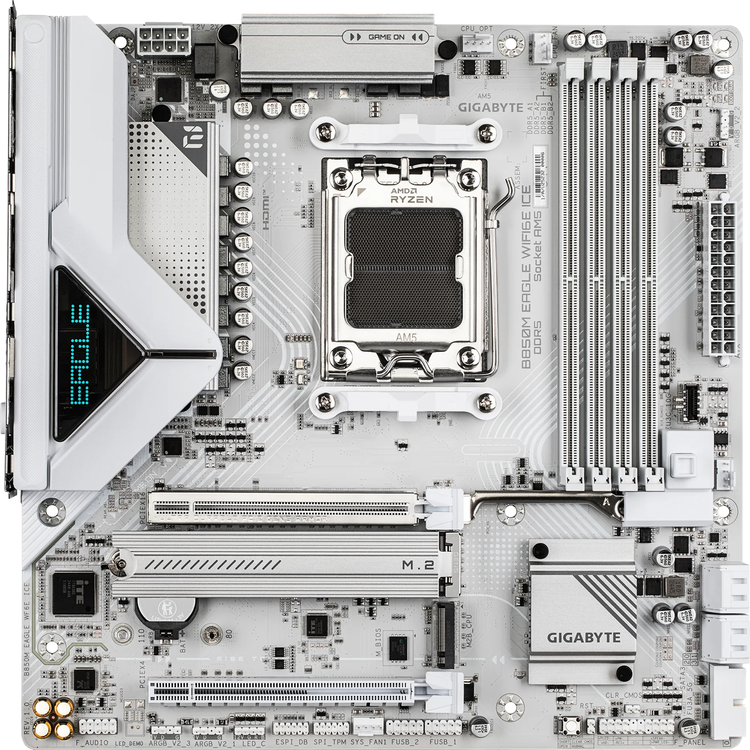

Gigabyte B850M EAGLE WIFI6E ICE AMD Socket AM5 - B850 Chipset - MATX Motherboard

Gigabyte B850M EAGLE WIFI6E ICE AMD Socket AM5 - B850 Chipset - MATX Motherboard Supports AMD Ryzen 9000 / 8000 / 7000 Series Processor - 2x M.2, 4x DDR5, 2x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, Wifi 6E + BT

B850M EAGLE WIFI6E ICE - X3D Turbo Mode : Unleash new era gaming performance- DDR5 OC up to 8200MT/s- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors- Digital twin 8+2+2 phases VRM solution- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation- EZ-Latch Plus : PCIe and M.2 slots with Quick Release &; Screwless Design- EZ-Latch Click : M.2 heatsinks with screwless design- Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4- Efficient Thermal : VRM Thermal Armor Advanced &; M.2 Thermal Guard- Fast Networking : 2.5 GbE LAN &; Wi-Fi 6E with directional Ultra-high gain antenna- Extended Connectivity : HDMI, 2*Displayport- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support

Performance

Thermal

Connectivity

DIY Friendly

Brand New Gaming Experience - X3D Turbo Mode Unleash New Era Gaming Performance with One-Click Activation. X3D Turbo Mode's unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance &; Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode. One-Click Acceleration :Enhance Gaming FPS Performance with a single click. - Enhance Up to 18% * Differences in performance enhancement depending on the game. AI Overclocking For peak performance AORUS AI SNATCHUnleash Ultimate Performance with One-Click Activation. * Coming soon

Auto CPU &; DDR5 Memory BoostWith just a single click, unleash the full potential of CPU &; DDR5 memory, instantly boosting your gaming and work efficiency. One-Click Acceleration:Enhance CPU &; DDR5 speeds with a single click. - Real time Analyze- OC accuracy UP- EZ to Pro - Fast AI Performance- Enhanced Computing Power- EZ to Peak- Safe OC- Less Power Usage Fast AI PerformanceAccelerate AI processing for greater performance - Up to 8% AI Performance* - Accelerated AI decision-making- Boosted reinforcement learning- Streamlined language processing *GeekBench AI PRO test conducted with High Bandwidth option manually enabled. Boost CPU &; Memory PerformanceRaise system speed and performance. - Up to 9% CPU &; Memory Performance Boost - Tailored-overclocking for your CPU and memory- Faster data transfer and application loading- Improved multitasking performance- Optimized overall system performance *Tested by AIDA64 Memory**Tested by R23 Multi Core Maximize performance in a snapEnable users to easily become overclocking experts through a simple interface. - EZ to Peak Smart &; Safe overclockingProtect your motherboard through multiple over-temperature and over-current safeguards. - OTP - Over Temperature Protection- OCP - Over Current Protection- OVP - Over Voltage Protection- OPP - Over Power Protection- UVP - Under Voltage Protection- SCP - Short Circuit Protection Less Power Usage Optimal power-efficiency- Enhance Up to 9% CP/Per Watt*With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet. AI Design For MB signal enhancement AI-Driven PCB DesignRedefining PCB Design with AI

AI-Driven PCB Technology -Redefining PCB Design with Artificial IntelligenceAI-Driven PCB Technology employs AI algorithms to optimize vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process. - AI-ViaFusion Technology - Optimized vias &; pads for signal integrity- AI-Trace Technology - Smart routing for peak performance- AI-Layer Technology - Tailored stackups for enhanced functionality Key Features:- AI-Generated Design Recipes- AI-Driven Simulation- AI-Powered Signal Verification- Single and cross-layer signal optimization AI-ViaFusion™ Technology - AI-Powered Excellence in Signal IntegrityReduction in Signal Reflection Up to 28.2%AI-ViaFusion, an AI-assisted via optimization technology, determines optimal via and pad sizes across PCB areas. This technology enhances cross-layer signal integrity and transmission efficiency, outperforming traditional design methods. Best-in-class Signal Quality- Superior signal transmission efficiency- Dramatically reduced signal reflection- Elevated signal quality and reliability- Enhanced cross-layer PCB signal performance

AI-ViaFusion Technology - AI-Engineered Via Design FormulaAI-ViaFusion is a proprietary AI-generated hybrid via structure design. This PCB technology, validated through AI simulations and testing, aims to enhance high-speed signal transmission. - Optimized Via Design - Varied via sizes for optimized signal and power paths- Driven Pad Optimization - Custom pad sizes for performance and production balance- Precision Impedance Matching - Via &; pad sizes selected for optimal signal impedance Unlock AI-Powered Performance with AI-ViaFusion Technology - Minimized Insertion Loss - Optimized vias reduce signal loss- Enhanced Return Loss - Precision impedance matching reduces reflections- Optimized Eye Diagram - Wider eye opening improves signal integrity *Eye Diagram: Signal quality assessment tool in digital communications. Overlays bit cycle waveforms, forming eye-like pattern. Larger, clearer opening indicates better signal quality and transmission reliability.

AI-ViaFusion Technology - AI-Driven Revolution in PCB DesignVias (Vertical Interconnect Access) are critical for multi-layer PCB connectivity. Via size significantly impacts signal integrity, affecting capacitance, reflections, and crosstalk. AI-ViaFusion Technology optimizes PCB performance through:- Strategic Via Sizing - Optimized for varied signals across PCB- Enhanced Impedance Matching - Precise control via machine learning- Space Optimization - Maximized layout efficiency with signal integrity AI-Trace Technology -Revolutionizing PCB Routing with AIAI-Trace Technology transforms PCB design by leveraging AI to optimize trace routing, resulting in enhanced performance and signal integrity. - Fiber Weave Effect Mitigation - Optimized signal synchronization- Shielded Memory Routing - Optimized signal shielding and precision- Impedance-Optimized Topology - Refined traces with minimal resistance- Isolated Memory Routing - Optimized trace layout and layer separation- Daisy-Chained Routing - Innovative design eliminates signal bottlenecks Experience next-gen PCB routing with GIGABYTE's AI-Trace Technology. Mitigating Fiber Weave Effect with AI-Trace TechnologyFiber Weave Effect in high-speed PCBs stems from varying dielectric constants of epoxy resin and glass fibers, this causes varying signal propagation speeds, leading to signal integrity issues such as crosstalk and jitter. AI-Trace Technology implements innovative routing angles to mitigate this effect. Benefits of Mitigation:- Reduces signal distortion- Improves transmission reliability- Supports higher data rates- Enhances overall system stability

AI-Layer Technology -Next-Generation Multi-Layer PCB DesignAI-Layer Technology creates innovative layer materials for multi-layer PCBs, delivering unparalleled performance. Core Innovation:AI-Optimized Layer Customized Design - AI-optimized layer design- Unique material for each layer- - AI-verified signal integrity- Tailored PCB for peak performance Key Features:- AI-optimized PCB layer and design material- Server-Grade Low Loss PCB*- Enhanced 2X Copper Technology ( * Low Loss for 8-layer PCB model only)

HyperTune BIOS AI-Driven Advanced BIOS Optimization Technology HyperTune BIOS - AI-Driven Advanced BIOS Optimization Technology - BIOS Efficiency Boost Up to 95%+HyperTune BIOS uses AI to optimize signals. The 800 series implements this for peak efficiency, enabling significant memory clock speed boosts and enhanced overall performance. AI-Enhanced Performance Optimization- Adaptive signal strength tuning- AI tuning accuracy exceeds 95%- Continuous learning advances performance limits Experience GIGABYTE's AI-Enhanced HyperTune - Unleashing next-gen BIOS performance

Memory - Infinite Memory Performance EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. * Memory overclocking and XMP/EXPO support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model. - DDR5 Overclocking Up to 8200 MT/s

Sturdy VRM Design - Steady Power Eagle Series with steady power keeps your AI operation smooth. Digital Twin VRM DesignDelivers consistent, high-powered performance to elevate your overclocking to the next level. 8 VCORE Phases DrMOS 60AUnlock the full power of your multi-core CPU for unmatched performance.*4+4 phases parallel power design 2 SOC Phase DrMOS 60AOptimized for integrated GPU performance and memory management within the CPU. 2 MISC Phases PpakDeliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Cooling - Comprehensive Thermal Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient. Premium VRM Thermal Armor for Superior Cooling"Stay Cool, Game On"High-coverage MOSFETs with integrated molded heatsinks 4X larger surface area for enhanced heat dissipation- With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance. 5 W/mK thermal pad for efficient thermal conductivity- High-performance thermal pad- Keeps your system cool and running at peak efficiency Multi-cut design with channels for improved airflow- More grooves, more airflow.- Better airflow, cooler system. True one-piece heatsink design- Outperforms competitors' multi-piece solutions- Integrated design and expanded surface area deliver exceptional cooling performance

M.2 Thermal Guard The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Small Vents, Big Cooling Power * Test results are for reference only and may vary in different circumstances. - Up To 7°C lower temperature

Smart Fan 6 Superior cooling performance and whisper-quiet operation for your gaming rig. High Current Support- Supports both PWM and DC fans, plus water cooling pumps- Up to 24W (12V x 2A) capacity per fan header- Built-in over-current protection Precision Control- Multiple temperature and fan speed points- Customizable fan curves for optimal performance Dual Curve Mode- Choose between slope and stair modes- Tailor cooling to your specific needs and preferences Fan Stop Technology- Fans can be completely turned off at low temperatures- Ensures silent operation during light loads

Smart Fan 6 BIOS UI Note: Images are for illustrative purposes and may differ based on your model. Enhance Fan Curve UI- 7 adjustable control points- Expanded speed graph for precise adjustments Slope/Stair Dual Graph Mode- Slope mode: Smooth fan speed curve- Stair mode: Steady speeds within temperature ranges- Easy switching between modes Manual Input- Fine-tune fan speeds for optimal performance- Precise control for enthusiasts EZ Tuning- Quick setup with 4 temperature and fan speed points- Automatic optimization of fan curve Fan Curve Profile- Save personalized settings to BIOS ROM- Maintain custom settings through BIOS updates

Easy &; Friendly - Hassle-free Assembly Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process. WIFI EZ-Plug The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

EZ-Latch Designs User-friendly designs simplifying the assembly process. * Images for reference only M.2 EZ-Latch Clickscrewless installation for M.2 heatsink

M.2 EZ-Latch Plusscrewless installation for M.2 SSDs

PCIe EZ-Latch PlusEasy ejection with single click for graphics cards

Fast-Access Controls Handy, Revert, Refresh - EZ Debug Zone- Q-FLASH Auto Scan

EZ Debug Zone Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer. * Photo for reference only.

Optimal DRAM Installation Indicator The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.

Q-FLASH Auto Scan The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.

Q-FLASH PLUS Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU. STEP 1Connect the 24-pin and 8-pin power cables directly to the motherboard.

STEP 2Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.

STEP 3Press the Q-FLASH PLUS button to trigger automatic BIOS updating.

Connectivity - All-round Connectivity Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

2.5G LANdesign deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services. 802.11ax Wi-Fi 6EThe latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission. Benefit of Wi-Fi 6E- Dedicated spectrum in 6GHz band for less interference- 4X better network capacity, no traffic jams especially in those dense area with lots of devices- Network efficiency increase for better user experience

Wi-Fi 6E bring you the Ultimate VR experience!Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video. Wi-Fi 6E compared to Wi-Fi 5 provide…- 40% faster speed for smoother gaming/streaming experience- 50% higher resolution for video game related content- Better battery life for VR devices

Wi-Fi 6E AdvantageSpectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.

Immerse Audio High-End Audio CapacitorsThese high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

Audio Noise GuardEssentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

Ultra Durable™ - Born from Ultra Durable™ Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel. PCIe UD SlotGIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards. - 1.7X stronger shearing test- 3.2X stronger retention force test- Reduced Signal Degradation with SMD Technology PCIe UD Slot

UD Power ConnectorOur innovative UD Power Connector design enhances power conductivity and thermal dissipation. - Solid Pins - Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.

Tailored Computing - Collaborative Excellence in Computing GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power. UC BIOS Restructured with user-centered and intuitive performance adjustment mechanisms. Multi-ThemeNow users can choose different BIOS themes with one simple click It not only delivers an immersive user experience but also offers a brand new user-friendly theme: Grayscale.

AIO Fan ControlEnable non-windows users to adjust AIO fan speed in the BIOS before entering the OS. * Supports for AORUS WATERFORCE X II series AIO only

Refined BIOS InterfaceGIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimized experience through an easy-to-navigate layout and attractive design for optimal usability.

Quick Access FunctionGIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.

GIGABYTE Control Center A unified software platform encompassing multiple GIGABYTE product. RGB FusionPersonalize the RGB illumination on your motherboard and connected peripherals. Spotlight your flairLiberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.

Varnish your shineProgrammable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC. * The information provided is for reference; please prioritize your specific setup and specifications. 1x RGB LED header3x ARGB LED headers AORUS &; HWiNFO Co-branded OSD AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.

Default AORUS skinWhen using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well. *AORUS skin auto-applies when detecting a GIGABYTE motherboard.

Memory Timings MonitorThanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.

Detailed BIOS informationGIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.
