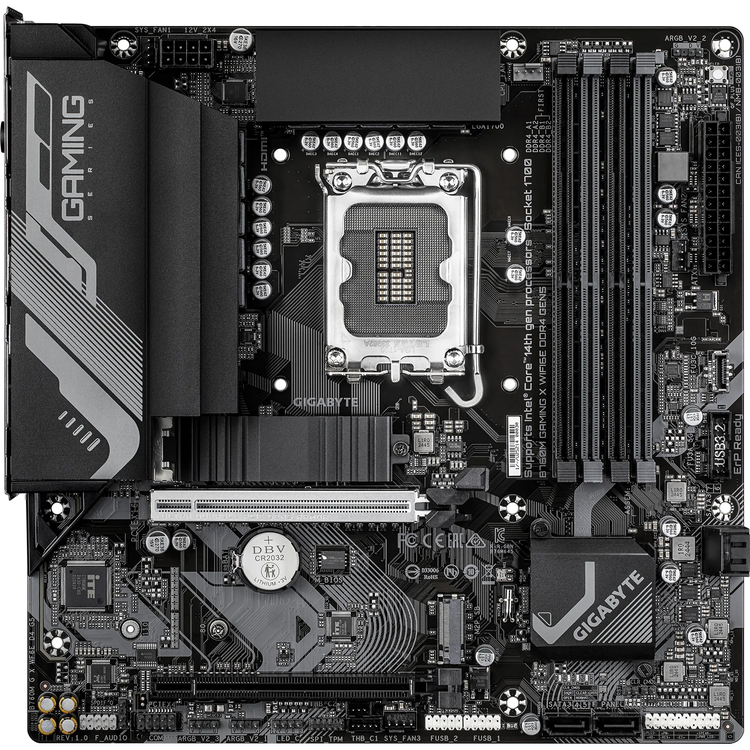

Gigabyte B760M Gaming X WIFI6E DDR4 GEN5 Intel B760 LGA1700, mATX Motherboard
View all GigabyteSold by PB Tech
Description
Gigabyte B760M Gaming X WIFI6E DDR4 GEN5 Intel B760 LGA1700, mATX Motherboard Socket LGA1700, B760, DDR4,
B760M GAMING X WIFI6E DDR4 GEN5
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th/12 processors
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 8+1+1 Phases VRM Solution
- Dual Channel DDR4 : 4*DIMMs with XMP Memory Module Support
- Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : Front USB-C® 10Gb/s, DP, HDMI
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Performance
Thermal
Connectivity
DIY Friendly
PCIe Gen5 - Express to PCIE5 Performance
The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
Cooling - Fully Covered Thermal Design
High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
Fully Covered MOSFET Heatsink
- 4X Massive cooling surface Advanced heat dissipation
- 5 W/mK thermal pad
4X Large Surface
Increased surface area up to 4X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.
Multi-Cut Design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Smart Fan 6
Superior cooling performance and whisper-quiet operation for your gaming rig.
High Current Support
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection
Precision Control
- Multiple temperature and fan speed points
- Customizable fan curves for optimal performance
Dual Curve Mode
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences
Fan Stop Technology
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads
Smart Fan 6 BIOS UI
Note: Images are for illustrative purposes and may differ based on your model.
Enhance Fan Curve UI
- 7 adjustable control points
- Expanded speed graph for precise adjustments
Slope/Stair Dual Graph Mode
- Slope mode: Smooth fan speed curve
- Stair mode: Steady speeds within temperature ranges
- Easy switching between modes
Manual Input
- Fine-tune fan speeds for optimal performance
- Precise control for enthusiasts
EZ Tuning
- Quick setup with 4 temperature and fan speed points
- Automatic optimization of fan curve
Fan Curve Profile
- Save personalized settings to BIOS ROM
- Maintain custom settings through BIOS updates
Easy & Friendly - Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience.
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
WIFI Compass
features auto detection to help users find the best antenna position for stronger Wi-Fi signal.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
* Images for reference only
PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Fast-Access Controls
Handy, Revert, Refresh
Q-FLASH PLUS
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.
STEP 1
Connect the 24-pin and 8-pin power cables directly to the motherboard.
STEP 2
Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.
STEP 3
Press the Q-FLASH PLUS button to trigger automatic BIOS updating.
Ultra Durable™ - Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GIGABYTE motherboards are engineered to endure and excel.
PCIe UD Slot
GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.
- 1.7X stronger shearing test
- 3.2X stronger retention force test
- Reduced Signal Degradation with SMD Technology
UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.
- Solid Pins Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.
Memory - Support for DDR4 XMP Up to 5333MHz and Beyond*
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
* Memory overlocking and XMP profile support may vary depending on hardware configuration. * Please see the complete validated memory support list. Product features may vary by model.
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
Optimal VRM Design - Optimal Power
Maximum Turbo Boost and overclocking performance
Hybrid VRM Design
To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GAMING series motherboard equip the best VRM design ever built with the highest quality components.
8 VCORE Phases DrMOS 60A
To unleash full potential of multi-cores CPU performance.
1 VCCGT Phase DrMOS 50A
For CPU integrated GPU performance.
1 VCCAUX Phase
Provide stable power for CPU integrated PCIe & Memory controller.
Connectivity - All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
* Photo for reference only.
Benefit of Wi-Fi 6E
- Dedicated spectrum in 6GHz band for less interference
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience
Wi-Fi 6E bring you the Ultimate VR experience!
Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video.
Wi-Fi 6E compared to Wi-Fi 5 provide…
- 40% faster speed for smoother gaming/streaming experience
- 50% higher resolution for video game related content
- Better battery life for VR devices
Wi-Fi 6E Advantage
Spectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.
2.5G LAN
design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.
Connecting the Future - Front USB3.2 Gen 2 Type-C®
USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
* Photo for reference only.
Hi-Fi Audio
High-End Audio Capacitors
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.
Audio Noise Guard
Essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
Personalization - Customize to fit your unique personality
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
UC BIOS - Redesigned UI and UX
an intuitive operation interface with an aesthetically pleasing design.
Quick Access
9 customizable option slots for effortless access in Easy Mode.
PerfDrive
exclusive BIOS settings that optimize the performance based on the cooling configuration.
Enhanced Intuitive UX
GIGABYTE User-Centred(UC) BIOS has enhanced the BIOS UX to provide users with an optimized experience featuring an intuitive operation interface and an aesthetically pleasing design.
* Images for reference only and may vary by model.
Quick Access Function
GIGABYTE UC BIOS' Quick Access function selects 9 practical preset options from ADVANCE MODE and places them in EASY MODE for effortless access without switching or searching.
* Images for reference only and may vary by model.
GIGABYTE PerfDrive
PerfDrive technology integrates exclusive BIOS settings from GIGABYTE, enabling easy balance of performance, power consumption, and temperature with Intel® Core™ processors.
Max Turbo
Unleashes the maximum Turbo Boost speed of Intel® Core™ CPUs.
Optimization Mode
Strikes a balance between high performance and low temperature for Intel® Core™ CPUs.
Spec Enhance Mode
Enables high-performance operation of Intel® Core™ CPUs at lower temperature settings.
E-Core™ Disable Mode
Dedicates CPU resources exclusively to the P-core, enhancing gaming performance while reducing overall power consumption.
GIGABYTE Control Center
Unified software platform for all Gigabyte supported products.
- Intuitive user interface
- Modularized control
- Auto update
Spotlight your flair
Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.
Varnish your shine
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
- 1x RGB LED header
- 3x ARGB LED headers
* The information provided is for reference; please prioritize your specific setup and specifications.
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304 @ 60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel® Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
3 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
B760M GAMING X WIFI6E DDR4 GEN5
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th/12 processors
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 8+1+1 Phases VRM Solution
- Dual Channel DDR4 : 4*DIMMs with XMP Memory Module Support
- Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : Front USB-C® 10Gb/s, DP, HDMI
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Performance
Thermal
Connectivity
DIY Friendly
PCIe Gen5 - Express to PCIE5 Performance
The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
Cooling - Fully Covered Thermal Design
High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
Fully Covered MOSFET Heatsink
- 4X Massive cooling surface Advanced heat dissipation
- 5 W/mK thermal pad
4X Large Surface
Increased surface area up to 4X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.
Multi-Cut Design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Smart Fan 6
Superior cooling performance and whisper-quiet operation for your gaming rig.
High Current Support
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection
Precision Control
- Multiple temperature and fan speed points
- Customizable fan curves for optimal performance
Dual Curve Mode
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences
Fan Stop Technology
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads
Smart Fan 6 BIOS UI
Note: Images are for illustrative purposes and may differ based on your model.
Enhance Fan Curve UI
- 7 adjustable control points
- Expanded speed graph for precise adjustments
Slope/Stair Dual Graph Mode
- Slope mode: Smooth fan speed curve
- Stair mode: Steady speeds within temperature ranges
- Easy switching between modes
Manual Input
- Fine-tune fan speeds for optimal performance
- Precise control for enthusiasts
EZ Tuning
- Quick setup with 4 temperature and fan speed points
- Automatic optimization of fan curve
Fan Curve Profile
- Save personalized settings to BIOS ROM
- Maintain custom settings through BIOS updates
Easy & Friendly - Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience.
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
WIFI Compass
features auto detection to help users find the best antenna position for stronger Wi-Fi signal.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
* Images for reference only
PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Fast-Access Controls
Handy, Revert, Refresh
Q-FLASH PLUS
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.
STEP 1
Connect the 24-pin and 8-pin power cables directly to the motherboard.
STEP 2
Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.
STEP 3
Press the Q-FLASH PLUS button to trigger automatic BIOS updating.
Ultra Durable™ - Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GIGABYTE motherboards are engineered to endure and excel.
PCIe UD Slot
GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.
- 1.7X stronger shearing test
- 3.2X stronger retention force test
- Reduced Signal Degradation with SMD Technology
UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.
- Solid Pins Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.
Memory - Support for DDR4 XMP Up to 5333MHz and Beyond*
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
* Memory overlocking and XMP profile support may vary depending on hardware configuration. * Please see the complete validated memory support list. Product features may vary by model.
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
Optimal VRM Design - Optimal Power
Maximum Turbo Boost and overclocking performance
Hybrid VRM Design
To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GAMING series motherboard equip the best VRM design ever built with the highest quality components.
8 VCORE Phases DrMOS 60A
To unleash full potential of multi-cores CPU performance.
1 VCCGT Phase DrMOS 50A
For CPU integrated GPU performance.
1 VCCAUX Phase
Provide stable power for CPU integrated PCIe & Memory controller.
Connectivity - All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
* Photo for reference only.
Benefit of Wi-Fi 6E
- Dedicated spectrum in 6GHz band for less interference
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience
Wi-Fi 6E bring you the Ultimate VR experience!
Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video.
Wi-Fi 6E compared to Wi-Fi 5 provide…
- 40% faster speed for smoother gaming/streaming experience
- 50% higher resolution for video game related content
- Better battery life for VR devices
Wi-Fi 6E Advantage
Spectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.
2.5G LAN
design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.
Connecting the Future - Front USB3.2 Gen 2 Type-C®
USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
* Photo for reference only.
Hi-Fi Audio
High-End Audio Capacitors
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.
Audio Noise Guard
Essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
Personalization - Customize to fit your unique personality
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
UC BIOS - Redesigned UI and UX
an intuitive operation interface with an aesthetically pleasing design.
Quick Access
9 customizable option slots for effortless access in Easy Mode.
PerfDrive
exclusive BIOS settings that optimize the performance based on the cooling configuration.
Enhanced Intuitive UX
GIGABYTE User-Centred(UC) BIOS has enhanced the BIOS UX to provide users with an optimized experience featuring an intuitive operation interface and an aesthetically pleasing design.
* Images for reference only and may vary by model.
Quick Access Function
GIGABYTE UC BIOS' Quick Access function selects 9 practical preset options from ADVANCE MODE and places them in EASY MODE for effortless access without switching or searching.
* Images for reference only and may vary by model.
GIGABYTE PerfDrive
PerfDrive technology integrates exclusive BIOS settings from GIGABYTE, enabling easy balance of performance, power consumption, and temperature with Intel® Core™ processors.
Max Turbo
Unleashes the maximum Turbo Boost speed of Intel® Core™ CPUs.
Optimization Mode
Strikes a balance between high performance and low temperature for Intel® Core™ CPUs.
Spec Enhance Mode
Enables high-performance operation of Intel® Core™ CPUs at lower temperature settings.
E-Core™ Disable Mode
Dedicates CPU resources exclusively to the P-core, enhancing gaming performance while reducing overall power consumption.
GIGABYTE Control Center
Unified software platform for all Gigabyte supported products.
- Intuitive user interface
- Modularized control
- Auto update
Spotlight your flair
Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.
Varnish your shine
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
- 1x RGB LED header
- 3x ARGB LED headers
* The information provided is for reference; please prioritize your specific setup and specifications.
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304 @ 60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel® Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
3 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Allowances
As an international traveller you are entitled to bring a certain amount/value of goods that are free of Customs duty and exempt Goods and Services tax (GST) into New Zealand. This is called your duty free allowance and personal goods concession. It is important to review these for any purchases you make on The Mall.
Your duty free allowance entitles you to bring into New Zealand the following quantities of alcohol products free of customs duty and GST provided you are over 17 years of age. You do need to be 18 years or over to purchase.
- Up to six bottles (4.5 litres) of wine, champagne, port or sherry or
- Up to twelve cans (4.5 litres) of beer
- And three bottles (or other containers) each containing not more than 1125ml of spirits, liqueur, or other spirituous beverages
Goods other than alcohol and tobacco, whether purchased overseas or purchased duty free in New Zealand, that have a combined total value not exceeding NZ$700 may also be brought as part of your personal goods concession.
When travelling overseas there are legal limits on the amount of duty free alcohol and other goods you can take with you. These amounts will vary depending on the country you are flying into. We always recommend you check the latest limits and exemptions.
Click & Collect
Your order can be picked up at an Auckland Airport Collection Point. There is one in departures and one at arrivals in the international terminal. Alternatively, if you are arriving between 11pm and 6am you will be able to collect your order from our lockers. See map
Please bring your order confirmation email and your passport. If you are collecting from lockers you will have been sent an email with your access code, be sure to have this on you in order to collect your order.
If you’re departing Auckland Airport, we recommend that you come to the Auckland Airport Collection Point at least 60 minutes before your flight. If you miss your pickup time or your flight details have changed please let us know as soon as possible.
When you collect your order you will have the opportunity to inspect the items and sign for them.
If you need to return an item, our Collection Point team are there to help you. If you are collecting after hours please return the item to your locker and our team will be in touch as soon as possible. You may also like to view our Returns & refunds which provides information on how this works and outlines the individual retailer's returns and refunds policies.
After Hours Collections
If your order needs to be collected after the Auckland Airport Collection Point desk is closed, your order will be placed in the lockers next to the desk. All the details you will need to collect your order will be provided in your Order Confirmation and Ready to Collect Email.
