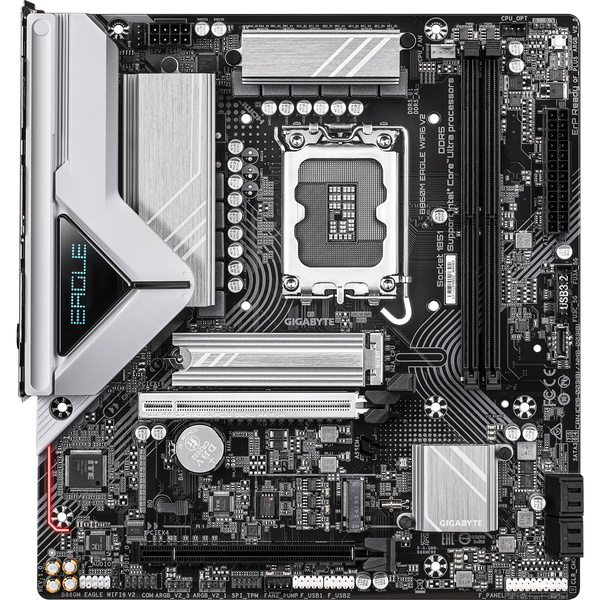

Gigabyte B860M EAGLE WIFI6 V2 For Intel LGA1851 - B860 Chipset - mATX Motherboard

Gigabyte B860M EAGLE WIFI6 V2 For Intel LGA1851 - B860 Chipset - mATX Motherboard PCIE 5.0 - 2x M.2, 2x DDR5, 2x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, Wifi 6 + BT

B860M EAGLE WIFI6 V2 - Supports Intel® Core™ Ultra processors (Series 2)- Digital 6+1+2 phases VRM solution- Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support- D5 Bionic Corsa for Infinite Memory Performance- AI Perfdrive : Provides optimal and customized BIOS preset profile for users- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation- EZ-Latch Plus : M.2 slots with Quick Release &; Screwless Design- EZ-Latch Click : M.2 heatsinks with screwless design- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4- Efficient Thermal : VRM Thermal Armor Advanced &; M.2 Thermal Guard- Fast Networking : 2.5GbE LAN &; Wi-Fi 6- Extended Connectivity : HDMI, DisplayPort

Performance

Thermal

Connectivity

DIY Friendly

Memory - Infinite Memory Performance EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. * Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model. - DDR5 Overclocking Up to 9066 MT/s Effortlessly Boost Your DDR5 Memory Speed DDR5 XMP Booster feature offers ready-to-use settings derived from analysis of memory IC and PMIC vendor. This allows users to maximize DDR5 memory performance without the hassle of manual tweaking for overclocked DDR5 memory kits. * DDR5 MEMORY UPGRADE involves DDR5 memory overclocking, overclocking capability depends on users' hardware configuration. Boost instantlyInstant memory performance uplift Hands-off memory tuningEliminate manual entry of complex memory settings such as clock, voltage, and timings. Hassle-free overclockingSeamlessly overclock for both standard and XMP 3.0 DDR5 memory frequencies. Incorporated databaseBuilt-in library of pre-optimized configurations for diverse memory chip suppliers

Boost DDR5 Memory Performance with Optimized Tuning: Leverage XMP 3.0 User Profile to fine-tune memory settings for peak system performance. Customizable SPD Profiles or retrieve from database:Create and transfer two custom SPD profiles between systems. Quick Performance Simulator:Rapidly assess potential memory performance by entering clock speeds and timing parameters. Profile Management:Store and retrieve memory configurations for online sharing. Unlock non-overclockable DDR5 Potential:Enhance clock speeds of non-overclockable DDR5 modules. Instant Reset:Revert memory settings with a single click.

Auto-Overclocking Software by AI model Unleash Ultimate Performance with One-Click Activation. Auto CPU &; DDR5 Memory Boost With just a single click, unleash the full potential of CPU &; DDR5 memory, instantly boosting your gaming and work efficiency. One-Click Acceleration: Enhance CPU &; DDR5 speeds with a single click. - Real time Analyze- OC accuracy UP- EZ to Pro - Enhanced Computing Power- Fast AI Performance- EZ to Peak- Safe OC- Less Power Usage

Fast AI Performance Accelerate AI processing for greater performance - Up to 11% AI Performance* - Accelerated AI decision-making- Boosted reinforcement learning- Streamlined language processing *Tested by GeekBench AI PRO Boost CPU &; Memory Performance Raise system speed and performance. - Up to 7% Memory Performance Boost*- Up to 5% CPU Performance Boost** - Tailored-overclocking for your CPU and memory- Faster data transfer and application loading- Improved multitasking performance- Optimized overall system performance *Tested by AIDA64 Memory**Tested by R23 Multi Core Maximize performance in a snap Enable users to easily become overclocking experts through a simple interface. - EZ to Peak Smart &; Safe overclocking Protect your motherboard through multiple over-temperature and over-current safeguards. - OTP - Over Temperature Protection- OCP - Over Current Protection- OVP - Over Voltage Protection- OPP - Over Power Protection- UVP - Under Voltage Protection- SCP - Short Circuit Protection Less Power Usage Optimal power-efficiency - Enhance Up to 3% CP/Per Watt* With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet. AI SNATCH Engine The AI model, trained by AI TOP on diverse overclocking datasets, improves precision and stability while optimizing performance. This model serves as the core of AORUS AI Snatch software. - OC to 20% higher speed- OC Efficiency UP- No more try and error- Optimal performance-stability balance. AI Flow Chart Data Augmentation - Expands dataset size- Reduces overfitting risk- Simulate more realistic conditions

Precise Dataset AI-Driven Overclocking Analysis - List overclocking parameters- Generate OC attribute weights and relevance matrix- Create correlation heatmap- Identified critical attributes

AI-Driven PCB Technology -Redefining PCB Design with Artificial Intelligence AI-Driven PCB Technology employs AI algorithms to optimize vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process. AI-ViaFusion TechnologyOptimized vias &; pads for signal integrity AI-Trace TechnologySmart routing for peak performance AI-Layer TechnologyTailored stackups for enhanced functionality Key Features:AI-Generated Design RecipesAI-Driven SimulationAI-Powered Signal VerificationSingle and cross-layer signal optimization AI-ViaFusion™ Technology - AI-Powered Excellence in Signal Integrity Reduction in Signal Reflection Up to 28.2%AI-ViaFusion, an AI-assisted via optimization technology, determines optimal via and pad sizes across PCB areas. This technology enhances cross-layer signal integrity and transmission efficiency, outperforming traditional design methods. Best-in-class Signal Quality - Superior signal transmission efficiency- Dramatically reduced signal reflection- Elevated signal quality and reliability- Enhanced cross-layer PCB signal performance

AI-ViaFusion Technology - AI-Engineered Via Design Formula AI-ViaFusion is a proprietary AI-generated hybrid via structure design. This PCB technology, validated through AI simulations and testing, aims to enhance high-speed signal transmission. Optimized Via DesignVaried via sizes for optimized signal and power paths Driven Pad OptimizationCustom pad sizes for performance and production balance Precision Impedance MatchingVia &; pad sizes selected for optimal signal impedance Unlock AI-Powered Performance with AI-ViaFusion Technology Minimized Insertion LossOptimized vias reduce signal loss Enhanced Return LossPrecision impedance matching reduces reflections Optimized Eye DiagramWider eye opening improves signal integrity *Eye Diagram: Signal quality assessment tool in digital communications. Overlays bit cycle waveforms, forming eye-like pattern. Larger, clearer opening indicates better signal quality and transmission reliability.

AI-ViaFusion Technology - AI-Driven Revolution in PCB Design Vias (Vertical Interconnect Access) are critical for multi-layer PCB connectivity. Via size significantly impacts signal integrity, affecting capacitance, reflections, and crosstalk. AI-ViaFusion Technology optimizes PCB performance through: Strategic Via SizingOptimized for varied signals across PCB Enhanced Impedance MatchingPrecise control via machine learning Space OptimizationMaximized layout efficiency with signal integrity AI-Trace Technology -Revolutionizing PCB Routing with AI AI-Trace Technology transforms PCB design by leveraging AI to optimize trace routing, resulting in enhanced performance and signal integrity. Fiber Weave Effect MitigationOptimized signal synchronization Shielded Memory RoutingOptimized signal shielding and precision Impedance-Optimized TopologyRefined traces with minimal resistance Isolated Memory RoutingOptimized trace layout and layer separation Daisy-Chained RoutingInnovative design eliminates signal bottlenecks Experience next-gen PCB routing with GIGABYTE's AI-Trace Technology.

Mitigating Fiber Weave Effect with AI-Trace Technology Fiber Weave Effect in high-speed PCBs stems from varying dielectric constants of epoxy resin and glass fibers, this causes varying signal propagation speeds, leading to signal integrity issues such as crosstalk and jitter. AI-Trace Technology implements innovative routing angles to mitigate this effect. Benefits of Mitigation: - Reduces signal distortion- Improves transmission reliability- Supports higher data rates- Enhances overall system stability

AI-Layer Technology -Next-Generation Multi-Layer PCB Design AI-Layer Technology creates innovative layer materials for multi-layer PCBs, delivering unparalleled performance. Core Innovation:AI-Optimized Layer Customized Design - AI-optimized layer design- Unique material for each layer- AI-verified signal integrity- Tailored PCB for peak performance Key Features:AI-optimized PCB layer and design materialServer-Grade Low Loss PCB*Enhanced 2X Copper Technology (* Low Loss for 8-layer PCB model only)

HyperTune BIOS - AI-Driven Advanced BIOS Optimization Technology - BIOS Efficiency Boost Up to 95%+ HyperTune BIOS uses AI to optimize MRC and adapt to signals. Z890 series implements this for peak efficiency, enabling significant memory clock speed boosts and enhanced overall performance. AI-Enhanced Performance Optimization- AI-driven MRC parameter optimization- Adaptive signal strength tuning- AI tuning accuracy exceeds 95%- Continuous learning advances performance limits Experience GIGABYTE's AI-Enhanced HyperTune - Unleashing next-gen BIOS performance. HyperTune BIOS - Advanced MRC Optimization Memory Reference Code (MRC) is a critical component in BIOS that initializes and configures system memory. HyperTune BIOS leverages AI to optimize MRC, pushing memory performance to new heights while maintaining system stability. Benefits of HyperTune BIOS MRC Optimization- Boosted memory clock speeds- Faster system response- Improved stability under load- Auto-adapts to memory modules

Sturdy VRM Design - Steady Power Better Play EAGLE Series, steady power keeps your computing smooth. Digital VRM Design Delivers consistent, high-powered performance to elevate your overclocking to the next level. 6 VCORE Phases Ppak 50AUnlock the full power of your multi-core CPU for unmatched performance. 1 VCCGT Phase Ppak 50AOptimized for integrated GPU performance and memory management within the CPU. 2 VCCSA Phases Ppak 50ADeliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Cooling - Comprehensive Thermal EAGLE motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient. Premium VRM Thermal Armor for Superior Cooling "Stay Cool, Game On"High-coverage MOSFETs with integrated molded heatsinks 4X larger surface area for enhanced heat dissipation- With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance. Multi-cut design with channels for improved airflow- More grooves, more airflow.- Better airflow, cooler system. 5 W/mK thermal pad for efficient thermal conductivity- High-performance thermal pad- Keeps your system cool and running at peak efficiency

M.2 Thermal Guard The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

RL-ILM design The RL-ILM (Reduced Load-independent loading mechanisms) significantly improves thermal performance up to 4°C and avoids possible bending of the CPU IHS (integrated heat spreader), allowing overclockers and enthusiasts to push their CPUs beyond the limit without any worries. - Reduce up to 4°C

Smart Fan 6 Superior cooling performance and whisper-quiet operation for your gaming rig. High Current Support- Supports both PWM and DC fans, plus water cooling pumps- Up to 24W (12V x 2A) capacity per fan header- Built-in over-current protection Precision Control- Multiple temperature and fan speed points- Customizable fan curves for optimal performance Dual Curve Mode- Choose between slope and stair modes- Tailor cooling to your specific needs and preferences Fan Stop Technology- Fans can be completely turned off at low temperatures- Ensures silent operation during light loads

Smart Fan 6 BIOS UI Note: Images are for illustrative purposes and may differ based on your model. Enhance Fan Curve UI- 7 adjustable control points- Expanded speed graph for precise adjustments Slope/Stair Dual Graph Mode- Slope mode: Smooth fan speed curve- Stair mode: Steady speeds within temperature ranges- Easy switching between modes Manual Input- Fine-tune fan speeds for optimal performance- Precise control for enthusiasts EZ Tuning- Quick setup with 4 temperature and fan speed points- Automatic optimization of fan curve Fan Curve Profile- Save personalized settings to BIOS ROM- Maintain custom settings through BIOS updates

Easy &; Friendly - Hassle-free Assembly Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process. WIFI EZ-Plug The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

EZ-Latch Designs User-friendly designs simplifying the assembly process. * Images for reference only M.2 EZ-Latch Clickscrewless installation for M.2 heatsink

M.2 EZ-Latch Plusscrewless installation for M.2 SSDs

EZ Debug Zone Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer. * Photo for reference only.

Optimal DRAM Installation Indicator The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.

Q-FLASH Auto Scan The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.

Q-FLASH PLUS Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU. STEP 1Connect the 24-pin and 8-pin power cables directly to the motherboard. STEP 2Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port. STEP 3Press the Q-FLASH PLUS button to trigger automatic BIOS updating. Connectivity - All-round Connectivity Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds. 802.11ax Wi-Fi 6 The Wireless solution 802.11ax Wi-Fi 6 enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5.3 provides 4X range over BT 4.2 and with faster transmission.

2.5G LAN Design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.

Hi-Fi Audio High-End Audio CapacitorsThese high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects. * Photo for reference only.

Audio Noise GuardEssentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. * Photo for reference only.

Ultra Durable™ - Born from Ultra Durable™ Technology embodies our commitment to excellence, providing users with a platform that's not only powerful but also built for longevity and reliability. EAGLE series motherboards are engineered to endure and excel. PCIe UD Slot GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards. - 1.7X stronger shearing test- 3.2X stronger retention force test- Reduced Signal Degradation with SMD Technology

UD Power Connector Our innovative UD Power Connector design enhances power conductivity and thermal dissipation. Solid PinsDelivers superior conductivity and signal transmission and reduces metal wear from repeated connections.

Tailored Computing - Collaborative Excellence in Computing GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power. Multi-Theme Now users can choose different BIOS themes with one simple click It not only delivers an immersive user experience but also offers a brand new user-friendly theme: Grayscale.

AIO Fan Control Enable non-windows users to adjust AIO fan speed in the BIOS before entering the OS. * Supports for AORUS WATERFORCE X II series AIO only

AI PerfDrive Featuring "Recommand me profile" function, AI Perfdrive uses the loading tool to make intelligent evaluation and predictions of the optimal usage scenarios for users. Based on the actual temperature performance of the user's system, it can provide users the most optimal and customized "preset profile" recommendations.

Refined BIOS Interface GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimized experience through an easy-to-navigate layout and attractive design for optimal usability.

Quick Access Function GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.

Spotlight your flair Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.

Varnish your shine Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC. * The information provided is for reference; please prioritize your specific setup and specifications. - 1x RGB LED header- 3x ARGB LED headers AORUS &; HWiNFO Co-branded OSD AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.

Default AORUS skin When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well. *AORUS skin auto-applies when detecting a GIGABYTE motherboard.

Memory Timings Monitor Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.

Detailed BIOS information GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.
