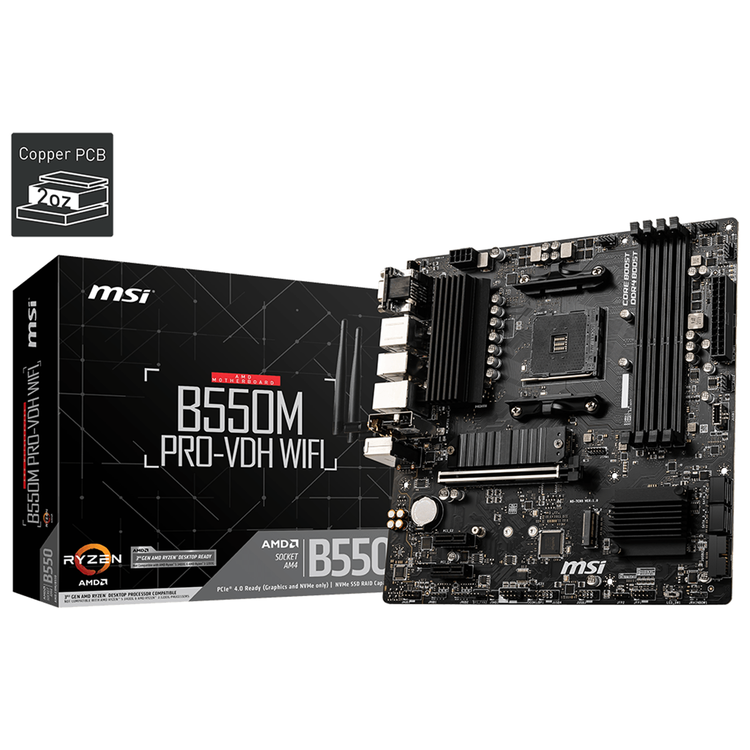

MSI MAG B550M PRO-VDH WIFI For AMD 3rd Gen 5000 Series CPU - Socket AM4 mATX Motherboard
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.
- Design
- Compatibility
- Reliable Components
Cooling
M.2 SHIELD FROZR
World's fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
- Prevents throttling
- Maximizes drive performance
- Higher maximum SSD speeds
*performance vary by model configuration
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked 'keep-out-zone' allows for easy and safe installation and a perfect fit.
CONNECTIVITY
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers' need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
- Wifi
- Storage
- USB
- Other Expansion
EXPERIENCE MORE
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.
- Performance
- Audio
- Bios & Software
B550M PRO-VDH WIFI
- Support for 3rd Gen AMD Ryzen™ processors and future AMD Ryzen™ processors with BIOS update
- Supports DDR4 Memory, up to 4400(OC) MHz
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
CPU
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset
AMD B550 Chipset
Memory
4x DDR4 memory slots, support up to 128GB 1
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHZ
1DPC 2R max speed 3733 MHZ
2DPC 1R max speed 3866 MHZ
2DPC 2R max speed 3466 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory
Supports un-buffered memory
Expansion Slot
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
2x PCIe 3.0 x1 slots
Onboard Graphics
1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2
Support HDCP 1.4 & 2.3
Maximum shared memory of 16 GB
Storage
AMD B550 Chipset
4x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4 1
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio
Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio
LAN
1x Realtek® 8111HN Gigabit LAN controller
Wireless LAN & Bluetooth
Wi-Fi AC
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
Internal Connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper
Back Panel Ports
VGA
USB 3.2 Gen 1 5Gbps Type-A
Keyboard / Mouse
LAN
Flash BIOS Button
DisplayPort
HDMI™
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
Wi-Fi Antenna connectors
3x Audio jacks
Dimensions
Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Mounting
8 mounting holes
