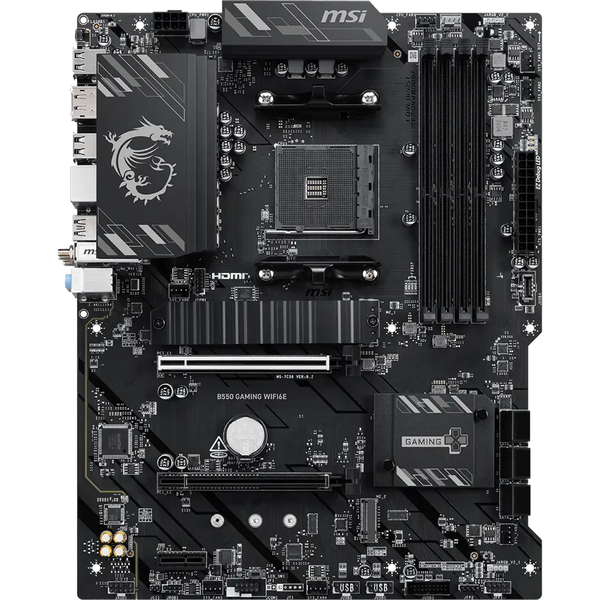

MSI B550 GAMING WIFI6E For AMD 3rd Gen 5000 Series CPU - Socket AM4 ATX Motherboard
- Chipset
- AMD B550
- CPU
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- Socket AM4
- Memory
- 4x DDR4, Maximum Memory Capacity 128GB
- Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
- Max. overclocking frequency:
- - 1DPC 1R Max speed up to 4800+ MHz
- - 1DPC 2R Max speed up to 3866+ MHz
- - 2DPC 1R Max speed up to 4000+ MHz
- - 2DPC 2R Max speed up to 3600+ MHz
- - Dual channel memory architecture
- - Supports non-ECC UDIMM memory
- - Supports ECC UDIMM memory (non-ECC mode)
- - Supports un-buffered memory
- - Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product's Support page or visit https://www.msi.com/support/.
- Onboard Graphics
- 1x HDMI™
- Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
- 1x DisplayPort
- Support DisplayPort 1.2, maximum resolution of 4K 60Hz*
- *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 2x PCI-E x16 slot
- 1x PCI-E x1 slot
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
- PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
- *The supported specification depends on installed processor.
- **When installing PCIe SSD in M.2_2 slot, PCI_E2 slot will be unavailable.
- Audio
- Realtek® ALC897
- 7.1-Channel High Definition Audio
- Storage
- 2x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices
- M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
- 6x SATA 6G
- USB
- 4x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 2x USB 5Gbps Type A (Rear)
- 2x USB 5Gbps Type A (Front)
- 1x USB 5Gbps Type C (Front)
- 1x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Rear)
- LAN
- Realtek® 8111H 1G LAN
- Internal IO
- 1x Power Connector(ATX_PWR)
- 1x Power Connector(CPU_PWR)
- 1x CPU Fan
- 1x Combo Fan (Pump_Sys Fan)
- 6x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Com Port (JCOM)
- 2x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 2x USB 5Gbps Type A ports
- 1x USB 5Gbps Type C ports
- WIRELESS LAN & BLUETOOTH
- Wi-Fi 6E Solution
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Dual-band 1T1R mode
- Supports MU-MIMO RX
- Supports 2.4GHz/ 5GHz/ 6GHz* frequency band
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.3**
- * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country's regulations.
- ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details.
- LED FEATURE
- 4x EZ Debug LED
- BACK PANEL PORTS
- USB 2.0
- DisplayPort 1.2
- 1G LAN
- USB 10Gbps (Type-A)
- Wi-Fi / Bluetooth
- Audio Connectors
- Flash BIOS Button
- HDMI™
- USB 2.0
- USB 5Gbps (Type-A)
- USB 10Gbps (Type-C)
- OPERATING SYSTEM
- Support for Windows® 11 64-bit
- PCB Info
- ATX
- 243.84mmx304.8mm
