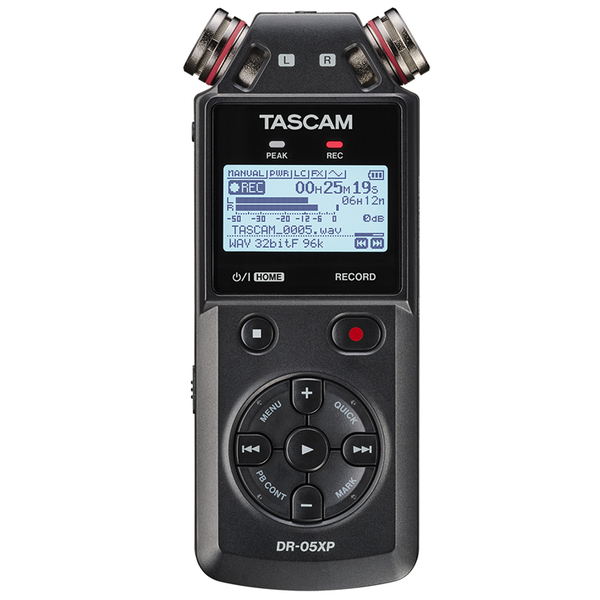

TASCAM DR-05XP 2-Channel 32-Bit Float Portable Handheld Recorder With USB-C Interface The TASCAM DR-05XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels. With easy one-handed operation, the DR-05XP makes it simple to start recording with minimal setup time. - 2-channel portable handheld audio recorder with up to 512GB microSDXC card storage- Flexible recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3- Omnidirectional condenser microphones handle loud environments and sources (up to 125dB SPL)- 2-in/2-out USB-C audio interface for recording directly to your computer- Up to 17.5 hours of operation with 2 x AA alkaline batteries
Capture Pro-Level Recordings Every Time With its 32-bit float recording mode, the DR-05XP ensures your audio recordings will always be clear, distinct, and free of distortion that could ruin your recording - and you'll never need to worry about setting input levels. Recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3.
Built-in Condenser Microphones The DR-05XP features omnidirectional condenser microphones that can withstand high sound pressure levels (up to 125dB SPL), reducing the risk of mic distortion even in loud environments.
Simplicity in Your Palm With the DR-05XP, the complexities of audio recording are a thing of the past. Easily access every feature from the palm of your hand. Plus, the backlit LCD screen means no squinting; just clear and concise navigation any time of day, in any environment.
Your Portable Recording Studio The DR-05XP isn't only a powerful portable recorder - it's also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.
Ideal for Musicians The DR-05XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.
On Location With its compact size, the DR-05XP can travel anywhere for exceptional field recording. Choose from four different low cut filter options for getting rid of unwanted noises. As a companion for video, the DR-05XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.
Record Anything, Anywhere From dialogue to vlogs, whether you're in an alley or a recording booth, the DR-05XP captures clear, crisp audio with ease. In addition to the built-in mics, use the stereo mini jack to add microphones with plug-in power or external line inputs to capture audio from any source in mono or stereo. Connect the unit to a computer via USB-C for use as a USB microphone.
Long Battery Life With up to 17.5 hours of continual usage from two AA alkaline batteries, users can focus on the audio rather than how much power is left.
Large Recording Capacity Supports up to 512GB microSDXC cards gives you ample recording capacity for on-the-go use.
Sound-Sensitive Auto Recording Automatically start recording when sound is detected with Auto Recording mode.
Ready for DSLR and iPhone Whether you're always on-the-go or find yourself creating impromptu content, the DR-05XP can easily fit into your iPhone video rig or your DSLR camera rig. Auto Tone output for DSLR optimizes DR-05XP for use in videography and content creation.
RF Noise Shielding With superior shielding of sensitive components, DR-05XP is able to effectively cut interference from Radio Frequency (RF), Wi-Fi, and other digital signals - ensuring a clean, noise-free signal.
Built-in Reference Speaker A built-in monaural speaker allows you to check your recordings without putting on headphones.
External Inputs Equipped with a stereo mini jack for external stereo microphones, as well as stereo line-level input.
- Recording media/file systems
- microSD cards / microSDHC cards / microSDXC cards (up to 512 GB)
- Sampling frequency
- 44.1 kHz / 48 kHz / 96 kHz
- Quantization bit depth
- 16-bit / 24-bit / 32-bit float
- Sampling frequency
- 44.1 / 48 kHz
- Quantization bit depth
- 32 / 64 / 96 / 128 / 192 / 256 / 320 kbps
- Maximum number of input channels
- 2
- Maximum number of recordable tracks
- 2
- Connector
- 3.5mm (1/8") stereo mini jack
- Input Impedance
- 18 kohm or more (when plug-in power is turned off)
- 2 kohm or more (when plug-in power is turned on)
- Nominal input level
- - 20 dBV
- Maximum input level
- -4 dBV
- Connector
- 3.5mm (1/8") stereo mini jack
- Output impedance
- 12 ohm
- Nominal output level
- - 14 dBV (10kohm loaded)
- Maximum output level
- +2 dBV (10kohm loaded)
- Maximum output
- 20 mW + 20 mW (32 ohm load)
- Working impedance
- 16 - 250ohm
- Output
- 0.3W (monaural)
- Connector
- USB Type-C
- Format
- USB 2.0 High Speed Mass Storage Class
- USB 1.1 Full Speed Audio Class
- Sampling rate
- 44.1 / 48 kHz
- Quantization bit depth
- 24-bit
- Number of inputs
- 2 channels (output from this unit)
- Number of outputs
- 2 channels (input to this unit)
- Power
- 2AA batteries (alkaline or NiMH)
- USB bus power (5V/0.5A) from a computer, etc.
- TASCAM PS-P520U AC adapter (sold separately)
- Power consumption
- 1.7 W (maximum)
- Weight
- 174 g / 0.384 lb (including batteries)
- 126 g / 0.278 lb (not including batteries)
- Operating temperature range
- 0 - 40 °C / 32 - 104 °F
- Dimensions
- 60.5 x 142.3 x 27 mm
- 2.39 x 5.61 x1.07 inch
- (W x H x D, including protrusions)
- Included items
- DR-05XP x1
- Safety guide (including warranty) x1
- TASCAM ID registration guide x1
- Note
- 0 dBV=1 Vrms, 0 dBu=0.775 Vrms
