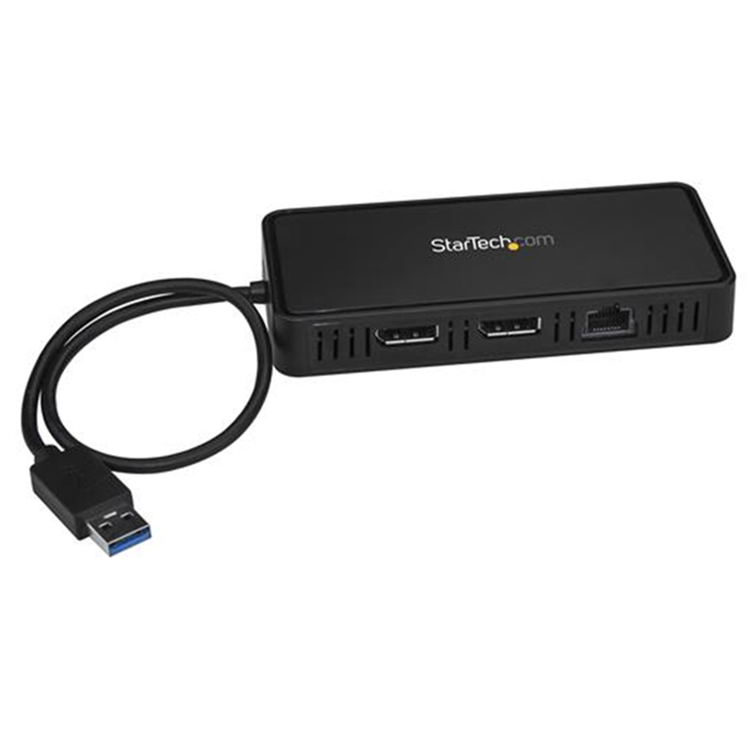

StarTech.com USBA2DPGB USB 3.0 Mini Dock - Dual Monitor USB-A
This USB to dual DisplayPort mini docking station makes it easy to create a high-performance dual-4K workstation, connecting your MacBook or Windows® laptop to two DisplayPort monitors plus Gigabit Ethernet wired network. The dock features a compact design that's perfect for business professionals who need a highly functional workstation when working or traveling between multiple office locations, or when using shared workspaces.
Enhance your productivity with two 4K monitors
The mini docking station lets you transform your laptop into a highly productive workstation, by expanding the display capabilities of your laptop across two Ultra HD 4K monitors, even if your laptop video card doesn't natively support it. The USB 3.0 docking station supports low-latency, high-resolution 4K graphics on both video ports, using DisplayPort monitors. It works with any laptop that has an available USB 3.0 (USB-A) port. The mini dock supports DisplayLink® graphics technology, with the DisplayLink-6950 chipset, to provide support for dual 4Kp60 displays. With the dual-4K mini dock, you can connect:
2x 4K DisplayPort displays at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz
Single 5K display at 5120 x 2880 @ 60Hz
The mini docking station is ideal for producers, graphic and web designers, engineers, architects and many other professionals who work on advanced graphics applications. It offers a fast and easy way to maximize your laptop's workable screen space, giving you three screens in total when coupled with your laptop's display.
Easily adaptable to multiple workspaces
The mini dock's compact size is ideal for business professionals working in space restricted workspaces or multiple locations, and require a high-performance dual-monitor workstation. The Gigabit Ethernet port provides a reliable network connection in areas where Wi-Fi is limited or unavailable.
Effortless setup
The mini docking station ensures easy plug-and-play setup with no drivers required. It's bus-powered from your laptop, so no external power adapter is required.
HARDWARE
4K Support
Yes
Bus Type
USB 3.0
Chipset ID
DisplayLink - DL-6950
Displays Supported
2
Fast-Charge Port(s)
No
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0/1.1
PERFORMANCE
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions
Dual displays - DisplayPort - 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
No
CONNECTOR(S)
Connector Type(s)
2 - DisplayPort Female
1 - Ethernet Gigabit Female
1 - USB Type-A (9 pin) USB 3.0 Male
SOFTWARE
OS Compatibility
Windows® 7, 8, 8.1, 10
macOS X 10.10 to 10.13
POWER
Power Source
USB-Powered
ENVIRONMENTAL
Humidity
10-90% RH
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 60°C (14°F to 140°F)
PHYSICAL CHARACTERISTICS
Cable Length
5.5 in [140 mm]
Color
Black
Product Height
0.8 in [20 mm]
Product Length
5.1 in [130 mm]
Product Weight
4.4 oz [126 g]
Product Width
2.3 in [58 mm]
PACKAGING INFORMATION
Shipping (Package) Weight
7.6 oz [215 g]
WHAT'S IN THE BOX
Included in Package
1 - mini dock
1 - quick-start guide
