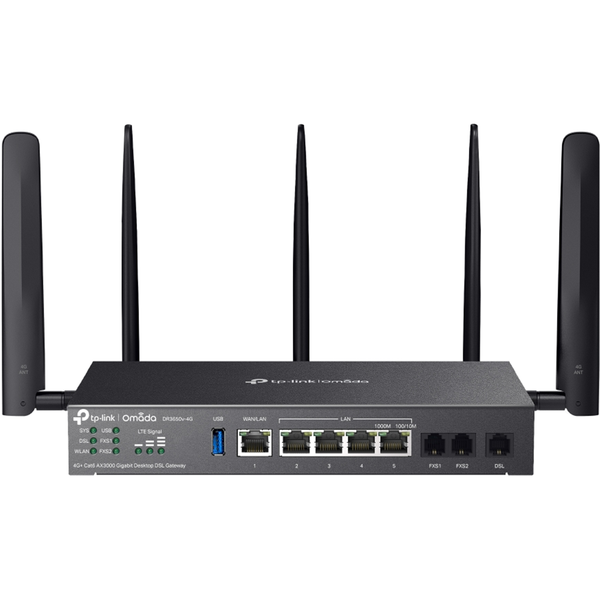

TP-Link Omada DR3650v-4G 4G+ CAT6 Gigabit Multi-WAN VPN ADSL/VDSL Gateway with Dual-Band WiFi 6 AX3000
DR3650v-4G Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway - AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*1- 4G+ Cat6 up to 300Mbps- 3x RJ11 Ports (2x FXS, 1x DSL) &; 5x RJ45 Gigabit Ports &; 1x USB 3.0 Port- 2x Nano SIM for 4G/LTE Failover- VDSL2 35b: Supports 350Mbps DSL Access*2- VDSL2/ADSL2+/ADSL2/ADSL Compatibility- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN- Load Balancing Across DSL, 4G, and Ethernet WAN for Optimized Connectivity- Centralized Cloud Management- Desktop/Wall/Rack Mounting (Purchase Rackmount Kit-D226 Separately)
Get the Higher DSL Speeds Cost-Effectively The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.
Get Instant 4G+ LTE - Internet up to 300 Mbps
Versatile Connectivity DR3650v-4G's compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the FXS ports supports VoIP for reliable voice communication. The USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.
Up to 3.0 Gbps Business-Level Wi-Fi 6 Empowers Small and Medium Business* HE 160Double the data at peak transmission times on a single stream OFDMAEnables different devices to share one transmission stream, increasing efficiency 1024 QAM25% more data encoded at one time
Software Defined Networking (SDN) with Cloud Access Centralised cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.
High-Security and High-Performance VPN SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN &; OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
In the Box
Build Features
- Access Control
- Source/Destination IP Based Access Control
- Filtering
- Web Group Filtering*5
- URL Filtering
- Web Security*5
- ARP Inspection
- Sending GARP Packets
- ARP Scanning*5
- IP-MAC Binding
- Attack Defense
- TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
- Interface
- 1× Gigabit WAN/LAN Port
- 4× Gigabit LAN Ports
- 1× DSL Port
- 2× FXS Ports
- 1× USB 3.0 (supports USB LTE dongle and USB Storage)
- Dual Nano SIM Slot (4G+ Cat6)
- Button
- Reset Button
- Power Supply
- 12V DC / 3.3A Power Adapter
- Wi-Fi Frequency & Signal Rate
- 2.4 GHz: 574 Mbps
- 5 GHz: 2402 Mbps (HE160)
- Flash
- 256 MB NAND
- DRAM
- 512 MB DDR4
- Dimensions ( W x D x H )
- 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)
- Antenna
- Wi-Fi: 3× 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable antennas
- LTE: 2× 4.0dBi omnidirectional detachable antennas
- Mounting
- Desktop/Wall-mounting/Rackmount (with Kit-D226, sold separately)
- Max. Power Consumption
- Power adapter not included: 28.482 W (Full load + USB)
- Power adapter included: 31.42 W (Full load + USB)
- GRE
- Unencrypted: 541.8Mbp
- Encrypted: 289.2Mbps
- WireGuard VPN
- 311.6Mbps
- Concurrent Session
- 150,000
- New Sessions /Second
- 3,800
- NAT (Static IP)
- 937.2 Mbps / 936.1Mbps
- NAT(DHCP)
- 945.8 Mbps / 940.6Mbps
- NAT(PPPoE)
- 942.9 Mbps / 942.9Mbps
- NAT (L2TP)
- 837.4 Mbps / 881.5Mbps
- NAT (PPTP)
- 803.0 Mbps / 910.5 Mbps
- IPsec VPN Throughput
- ESP-SHA1-AES256: 569.9Mbps
- ESP-SHA256-AES256: 543.3Mbps
- ESP-SHA384-AES256: 549.0Mbps
- ESP-SHA512-AES256: 539.3Mbps
- OpenVPN
- 129.3Mbps
- L2TP VPN Throughput
- Unencrypted: 909.4 Mbps
- Encrypted: 494.9Mbps
- PPTP VPN Throughput
- Unencrypted: 897.5 Mbps
- Encrypted: 190.8 Mbps
- SSL VPN Throughput
- 126.7Mbps
- 66 Byte Packet Forwarding Rate
- 1,453,489 pps / 1,453,488 pps
- 1,518 Byte Packet forwarding rate
- 81,274 pps / 91,275 pps
- Advanced Features
- Seamless Roaming
- Mesh (with EAP that supports Mesh)
- OFDMA
- Beamforming
- Enable/Disable SSID Broadcast
- Enable/Disable Wireless Radio
- MU-MIMO
- Load Balance
- Automatic Channel Selection Algorithm
- Airtime Fairness
- Rate Limit: Based on SSID/Client
- Transmit Power Control: Adjust transmit Power on dBm
- Multiple SSIDs: 16 in total (8 per radio)
- Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
- Guest Network
- Support
- WAN Connection Type
- Static IP
- Dynamic IP
- PPPoE (supports MRU Configuration)
- PPTP
- L2TP
- MAC Clone
- Modify WAN Address
- DHCP
- DHCP Server
- DHCPv6 PD Server (only in Standalone Mode)
- DHCP Options Customization
- DHCP Address Reservation
- Multi-IP Interfaces
- Multi-Net DHCP
- IPv6
- StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
- VLAN
- 802.1Q VLAN
- IPTV
- IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
- Advanced Routing
- Static Routing
- Policy Routing
- RIP*5
- OSPF*5
- Bandwidth Control
- IP-Based Bandwidth Control
- Load Balance
- Intelligent Load Balance
- Application Optimized Routing
- Link Backup(Timing, Failover)
- Online Detection
- NAT
- One-to-One NAT
- Multi-Net NAT
- Virtual Server
- Port Triggering*5
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG
- UPnP
- Session Limit
- IP-Based Session Limit
- GRE
- Only in Standalone Mode
- SSL VPN
- 50 Tunnels
- IPsec VPN
- 100 IPSec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- IPsec Failover
- IKE v1/v2
- MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
- PPTP VPN
- PPTP VPN Server
- PPTP VPN Client (10)*6
- 50 Tunnels
- PPTP with MPPE Encryption
- L2TP VPN
- L2TP VPN Server
- L2TP VPN Client (10)*6
- 50 Tunnels
- L2TP over IPSec
- OpenVPN
- OpenVPN Server
- OpenVPN Client (5)*6
- 55 OpenVPN Tunnels
- "Certificate + Account" Mode
- Full Mode
- WireGuard VPN
- Yes
- Web Authentication
- No Authentication
- Simple Password*6
- Hotspot (Local User / Voucher*6 / SMS*6 / Radius*6)
- External Radius Sever
- External Portal Sever*6
- LDAP
- Omada App
- Yes
- Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
- Cloud Access
- Yes. Require the use of Omada Controller.
- Service
- Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
- Maintenance
- Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute)*5
- NTP Synchronize*5
- Port Mirroring
- CLI (only in Standalone Mode)
- Syslog Support
- TR-069 (data models of TR-098 and TR181 are supported)
- Zero-Touch Provisioning
- Yes. Require the use of Omada Controller.
- Management Features
- Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
- Certification
- CE, RoHS
- Package Content
- DR3650v-4G
- Power Adapter
- Ethernet Cable
- Phone Cable
- Quick Installation Guide
- System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
- MAC OS, NetWare, UNIX or Linux
- Environment
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 90% non-condensing
- Notes
- *1Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and coverage are not guaranteed and will vary.
- *2Maximum wired signal rates are the physical rates. Actual data throughput is not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors.
- *3Omada Mesh Technology requires the use of EAPs that support mesh functionality. Please refer to https://www.tp-link.com/en/omada-mesh/product-list/ to confirm which Omada EAPs are compatible with Omada Mesh. Additionally, ER706W also supports standalone Mesh. Please refer to https://www.tp-link.com/en/standalonemesh/product-list/ to confirm the models that support standalone Mesh.
- *4Use of Wi-Fi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions.
- *5Supported only in Standalone Mode.
- *6Supported only in Controller Mode.
- *7The Omada cloud-based controller offers the Essentials version of cloud services for free, while the Standard version, which includes advenced features, requires a license.
