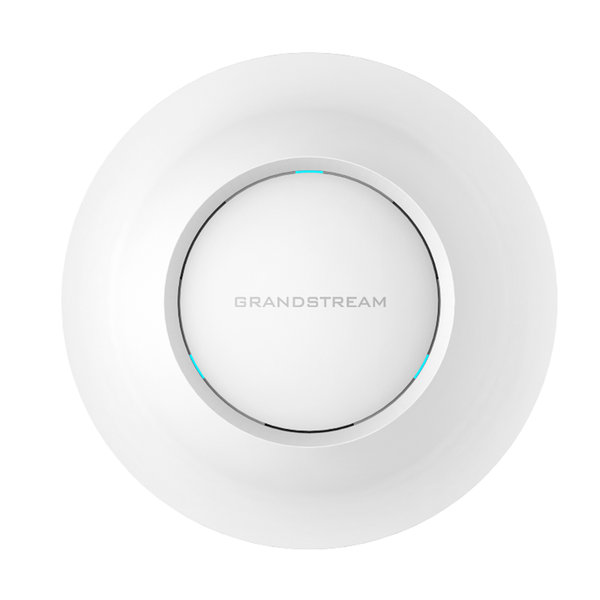

Grandstream GWN7605 (AC1200) Dual-Band 4-Stream Wi-Fi 5 Access Point
802.11ac Wave-2 2x2:2 Wi-Fi Access Point
The GWN7605 is an affordable 802.11ac Wave-2 Wi-Fi access point ideal for small to medium wireless network deployments with medium user density. It offers dual-band 2x2:2 MU-MIMO with beam-forming technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7605 uses a controller-less distributed network management design in which the controller is embedded within the product's web user interface. The GWN7605 is also supported by GWN. Cloud and GWN Manager, Grandstream's cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voiceover-Wi-Fi deployments and offers a seamless connection with Grandstream's Wi-Fi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 100+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7605 is a scalable Wi-Fi solution for deployments such as retail locations, restaurants, small offices and more.
Gigabit
1.27Gbps aggregate wireless throughput and 2xGigabit wireline ports
2X2 MIMO Technology
Dual-band 2x2:2 MU-MIMO with beamforming technology
PoE
Self power adaptation upon auto detection of PoE/PoE+
Supports Most Devices
Supports 100+ concurrent Wi-Fi client devices
165 Meter Range
Up to 165-meter coverage range
Advanced QoS
Advanced QoS to ensure real-time performance of low-latency applications
Encryption security
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Web Configuration
Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller
Wi-Fi Standards
IEEE 802.11a/b/g/n/ac (Wave-2)
Antennas
2 dual band internal antennas
2.4GHz, gain 3dBi
5 GHz, gain 4dBi
Wi-Fi Data Rates
IEEE 802.11ac: 6.5 Mbps to 867 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps;
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
2.4 GHz Radio: 2412 – 2484 MHz
5 GHz Radio: 5180-5825 MHz
Channel Bandwidth
2.4G: 20 and 40 MHz
5G: 20,40 and 80 MHz
Wi-Fi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical
data/control lockdown via digital signatures, unique security certificate and random default
password per device
MIMO
2x2:2 2.4GHz (MIMO)
2x2:2 5GHz (MU-MIMO)
Coverage Range
Up to 165 meters
*coverage range can vary based on environment
Maximum TX Power
2.4G:24dBm
5G:22dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
2.4G
802.11b: -96dBm @ 1Mbps, -88dBm @ 11Mbps; 802.11g: -93dBm @ 6Mbps, -75dBm @ 54Mbps;
802.11n 20MHz: -73dBm @ MCS7; 802.11n 40MHz:-70dBm @ MCS7
5G
802.11a: -92dBm @ 6Mbps, -74dBm @ 54Mbps; 802.11ac 20MHz: -67dBm @ MCS8; 802.11ac: HT40:-
63dBm @ MCS9; 802.11ac 80MHz: -59dBm @ MCS9
SSIDs
8 SSIDs per radio
Concurrent Clients
100+
Network Interfaces
2 x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1 x Reset Pinhole, 1 x Kensington lock
Mounting
Indoor wall or ceiling mount, kits included
LEDs
3 x tri-color LED for device tracking and status indication
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
PoE 802.3af/ 802.3at;
Maximum Power Consumption:10.16W
Environmental
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical
Unit Dimension: 180.4mmx180.4mmx40.8mm; Unit Weight: 388.2g
Entire Package Dimension: 228.5x220x79mm; Entire Package Weight: 719.3g
Package Content
GWN7605 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
Compliance
FCC, CE, RCM, IC
