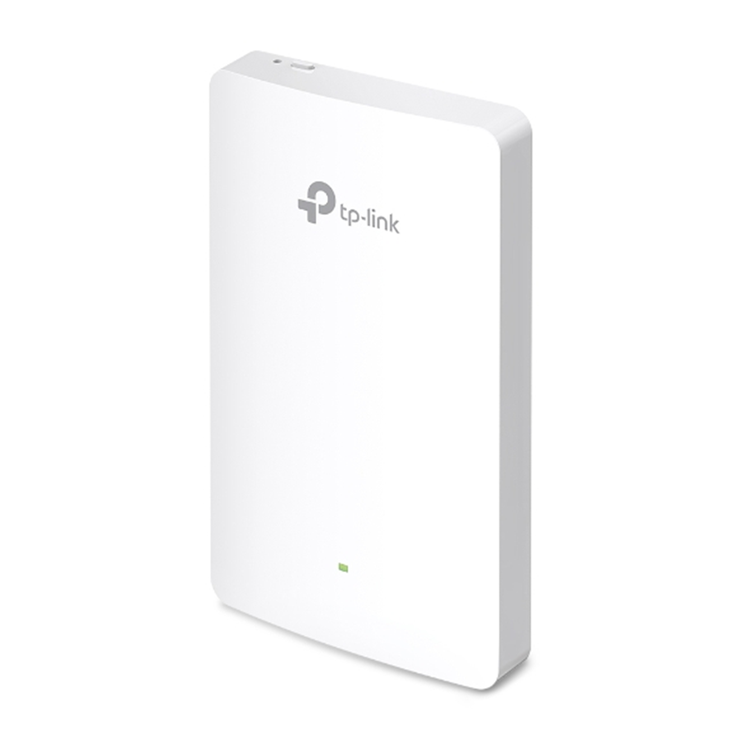

TP-Link Omada EAP615-Wall (AX1800) Dual-Band 4-Stream Wall-Plate Wi-Fi 6 Access Point
EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point - Superior WiFi 6 Speeds - Delivers dual-band speeds of up to 18 Gbps powered by the latest WiFi 6 technology- Complete In-Room WiFi Coverage - Guarantees strong signals and corner-to-corner WiFi coverage in each room- Higher Network Efficiency - OFDMA and DL/UL MU-MIMO* deliver data to multiple devices simultaneously with less lag- Full Gigabit Ports - Connect multiple devices with four gigabit ports and one downlink port offering PoE pass-through- Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management
Futureproof Your Network with WiFi 6 Connectivity Connect more devices at the same time with WiFi 6 speeds of up to 1800 Mbps. Corner-to-Corner Indoor WiFi Coverage Guests can enjoy strong private networks that paint their entire space by installing EAP615-Walls in each guest room.
*Uplink MU-MIMO requires further firmware upgrades.**Product is being developed and the pictures are design sketches for reference only.
- Interface
- Uplink: 1× 10/100/1000 Mbps Ethernet Port
- Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
- Physical Security Lock
- Yes
- Button
- Reset
- Power Supply
- 802.3af/at PoE
- Power Consumption
- EU: 10W (802.3at PoE, PoE Out off)
- US: 11.5W (802.3at PoE, PoE Out off)
- Dimensions
- 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
- Antenna
- 2 Dual-Band Antennas
- 2.4 GHz: 2× 3 dBi
- 5 GHz: 2× 4 dBi
- Mounting
- Wall Plate Mounting
- Wireless Standards
- IEEE 802.11ax/ac/n/g/b/a
- Frequency
- 2.4 GHz and 5 GHz
- Signal Rate
- 5 GHz: Up to 1201 Mbps
- 2.4 GHz: Up to 574 Mbps
- Wireless Functions
- 16 SSIDs (Up to 8 SSIDs on each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Seamless Roaming
- Beamforming
- MU-MIMO
- Rate Limit
- Load Balance
- Airtime Fairness
- Band Steering
- Reboot Schedule
- Wireless Schedule
- RADIUS Accounting
- MAC Authentication
- Wireless Statistics
- Static IP/Dynamic IP
- Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power
- CE:
- < 20 dBm (2.4 GHz, EIRP)
- < 23 dBm (5 GHz, EIRP)
- FCC:
- < 21 dBm (2.4 GHz)
- < 21 dBm (5 GHz)
- Omada App
- Yes
- Centralized Management
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access
- Yes (Through OC300, OC200, or Omada Software Controller)
- Email Alerts
- Yes
- LED ON/OFF Control
- Yes
- Management MAC Access Control
- Yes
- SNMP
- v1, v2c, v3
- System Logging Local/Remote Syslog
- Local/Remote Syslog
- SSH
- Yes
- Web-based Management
- HTTP/HTTPS
- L3 Management
- Yes
- Multi-site Management
- Yes
- Management VLAN
- Yes
- Certification
- CE, FCC, RoHS
- Package Contents
- AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
- Installation Guide
- Mounting Kits
- System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
- Environment
- Operating Temperature: 0-40 C (32-104 F)
- Storage Temperature: -40-70 C (-40-158 F)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
