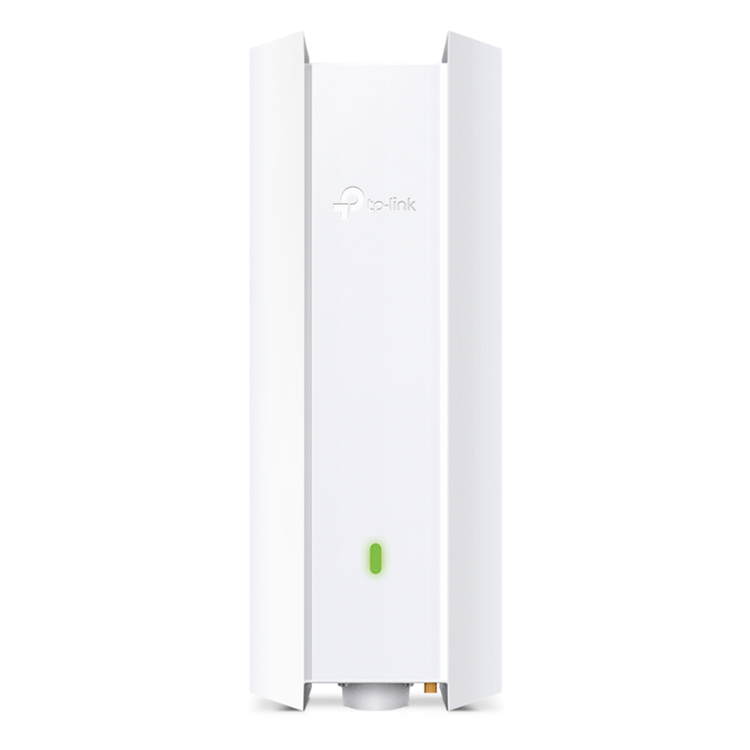

TP-Link Omada EAP650-Outdoor (AX3000) Dual-Band 4-Stream IP67 Outdoor Wi-Fi 6 Access Point
Lightning-Fast AX3000 WiFi 6 Speeds New-era business Wi-Fi 6 with speeds up to 2976 Mbps brings more than twice the speed of Wi-Fi 5.*1 Every application feels more fluid with drastically improved Wi-Fi speeds. Higher Efficiency for More Devices OFDMA and MU-MIMO greatly improve multi-user efficiency to provide simultaneous connections for dozens of clients in large open areas. Long-Range Coverage Professional antennas equipped with high-power amplifiers utilize WiFi 6 technology to provide strong and expansive wireless coverage to various outdoor environments. Experience the Peak ofWiFi 6 with Smart Antennas TP-Link Smart Antenna technology brings lower interference, longer coverage, and higher performance. EAP650-Outdoor is equipped with horizontally polarized antennas and vertically polarized antennas, while its intelligent algorithms automatically select the optimal antennas to ensure the peak WiFi experience ideal for outdoor applications. Less Wiring with Mesh With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas. Powered with PoE+ Switch Powered and connected by an 802.3at PoE+ switch using one single cable for convenient deployment. Powered with Passive PoE Powered and connected by the provided passive PoE adapter using one single cable, ideal for home WiFi deployment. IP67 Weatherproof Enclosure for Outdoor Environments EAP650-Outdoor is resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments. Versatile Mounting Solutions Our mounting kits provide flexible installation, whether inside or outside. Seamless Integration into the Omada SDN Platform The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralised cloud management and create a highly scalable network-all controlled from a single interface. Easy Management with the Omada Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a phone or tablet.
- Interface
- 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
- Button
- Reset
- Power Supply
- 802.3at PoE / 48V Passive PoE
- Power Consumption
- 802.3at PoE / 48V Passive PoE
- Dimensions ( W x D x H )
- 280.4×106.5×56.8 mm (without antenna & mounting kit)
- Antenna
- 2.4 GHz: 2× 4 dBi
- 5 GHz: 2× 5 dBi
- Weatherproof Enclosure
- IP67
- Mounting
- Pole/Wall Mounting (Kits included)
- Wireless Standards
- IEEE 802.11ax/ac/n/g/b/a
- Frequency
- 2.4 GHz, 5 GHz
- Signal Rate
- 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
- 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Transmit Power
- CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
- FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
- Wireless Functions
- 1024-QAM
- 4× Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS (WMM)
- MU-MIMO
- Omada Mesh3
- Seamless Roaming3
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
- Wireless Security
- Captive Portal Authentication3
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Omada App
- Yes
- Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access
- Yes, through
- - Omada Cloud-Based Controller
- - OC300
- - OC200
- - Omada Software Controller
- Email Alerts
- Yes
- Management MAC Access Control
- Yes
- SNMP
- v1, v2c
- System Logging Local/Remote Syslog
- Yes
- SSH
- Yes
- Web-based Management
- Yes
- L3 Management
- Yes
- Multi-site Management
- Yes
- Management VLAN
- Yes
- Zero-Touch Provisioning
- Yes. Requiring the use of Omada Cloud-Based Controller
- Package Contents
- - Access Point EAP650-Outdoor
- - Passive PoE Adapter
- - Power Cord
- - Mounting Kits
- - Installation Guide
- System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
- Environment
- - Operating Temperature: -30-70 ? (-22-158 ?)
- - Storage Temperature: -40-70 ? (-40-158 ?)
- - Operating Humidity: 10-90% RH non-condensing
- - Storage Humidity: 5-90% RH non-condensing
