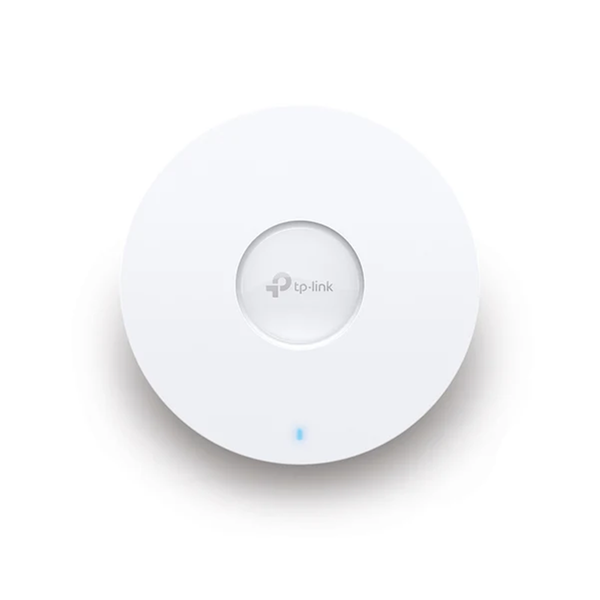

TP-Link Omada EAP653 UR (AX3000) Dual-Band 4-Stream Ultra-Range Wi-Fi 6 Access Point
AX3000 Ceiling Mount WiFi 6 Access Point - Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz†- Ultra-range wireless coverage by more antennas with higher transmit power- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc‡- Advanced Features: Omada Mesh, Seamless Roaming, etc§- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)- Ultra-Slim Design: F6.3 in × 1.3 in elegant design brings more agility- Integrates with the Omada SDN platform for centralised management
- Interface
- 1x Gigabit PoE+ Port
- Button
- Reset
- Power Supply
- - 802.3at PoE
- - 12V DC / 1.5 A (Power Adapter IS NOT included)
- - 48V Passive PoE
- Power Consumption
- - EU: 14.2 W
- - US: 15.5 W
- Dimensions ( W x D x H )
- 6.3 x 6.3 x 1.3 in (160 × 160 × 33.6 mm)
- Antenna Type
- Internal Omni
- - 2.4 GHz: 2x 5 dBi
- - 5 GHz: 3x 5 dBi
- Mounting
- - Ceiling /Wall Mounting (Kits included)
- - Junction Box Mounting
- Coverage
- 140?(1500 ft²)***
- Concurrent Clients
- 250+**
- Wireless Standards
- IEEE 802.11ax/ac/n/g/b/a
- Frequency
- 2.4 GHz and 5 GHz
- Signal Rate
- - 5 GHz: Up to 2402 Mbps†
- - 2.4 GHz: Up to 574 Mbps†
- Wireless Functions
- - 1024-QAM
- - 4x Longer OFDM Symbol
- - OFDMA
- - Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- - Enable/Disable Wireless Radio
- - Automatic Channel Assignment
- - Transmit Power Control (Adjust Transmit Power on dBm)
- - QoS(WMM)
- - MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)
- - HE160 (160 MHz Bandwidth)‡
- - Seamless Roaming(802.11k/v/r)§
- - Omada Mesh§
- - Band Steering
- - Load Balance
- - Airtime Fairness
- - Beamforming
- - Rate Limit
- - Reboot Schedule
- - Wireless Schedule
- - Wireless Statistics based on SSID/AP/Client
- Wireless Security
- - Captive Portal Authentication§
- - Access Control
- - Wireless Mac Address Filtering
- - Wireless Isolation Between Clients
- - SSID to VLAN Mapping
- - Rogue AP Detection
- - 802.1X Support
- - WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power
- - CE:
- <20 dBm(2.4 GHz, EIRP)
- <23 dBm(5 GHz, Band1 & Band2, EIRP)
- <29 dBm(5 GHz, Band3, EIRP)
- - FCC:
- <26 dBm (2.4 GHz)
- <27 dBm (5 GHz)
- Omada App
- Yes
- Centralized Management
- - Omada Hardware Controller (OC300)
- - Omada Hardware Controller (OC200)
- - Omada Software Controller
- - Omada Cloud-Based Controller
- Cloud Access
- Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Email Alerts
- Yes
- LED ON/OFF Control
- Yes
- Management MAC Access Control
- Yes
- SNMP
- v1, v2c, v3
- System Logging Local/Remote Syslog
- Local/Remote Syslog
- SSH
- Yes
- Web-based Management
- HTTP/HTTPS
- L3 Management
- Yes
- Multi-site Management
- Yes
- Management VLAN
- Yes
- Zero-Touch Provisioning
- Yes. Requiring the use of Omada Cloud-Based Controller.
- Certification
- CE, FCC, RoHS
- Package Contents
- - EAP653 UR
- - Ceiling/Wall Mounting Kit
- - Installation Guide
- Note: DC adapter is not included in the package, and is sold separately.
- System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
- Environment
- - Operating Temperature: 0-40 ? (32-104 ?)
- - Storage Temperature: -40-70 ? (-40-158 ?)
- - Operating Humidity: 10-90% RH non-condensing
- - Storage Humidity: 5-90% RH non-condensing
