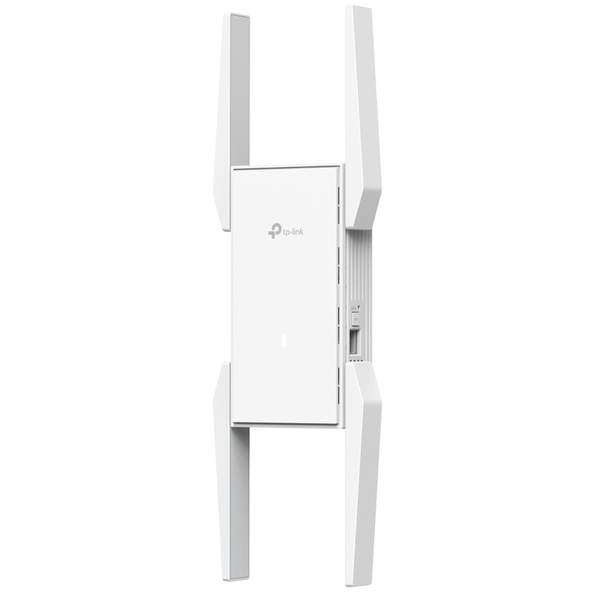

TP-Link Omada EAP673-Extender (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access Point / Mesh Extender
AX5400 Mesh Wi-Fi 6 Extender
- AX5400 Dual-Band Wi-Fi 6: Up to 5.4 Gbps wireless speeds .†
- Wi-Fi Dead-Zone Killer: Four high-gain external antennas extend Wi-Fi signals to every dead zone.
- AP Mode: Simply plug in an Ethernet cable to create a new Wi-Fi AP.
- Seamless Mesh Networking: Supports Omada Mesh and Roaming for reliable networking, ideal for large-scale scenarios.§
- Easy & Quick Installation: Standard AC power supply for flexible deployment.
- Quick adoption: Conveninet operation via Omada web or app once the extender powers on.
- Centralised Cloud Management: Integrates into Omada SDN for cloud access and remote management.
Seamless Coverage to Remove Dead Zones
EAP673-Extender, featuring four high-gain antennas and mesh technology, eliminates dead zones, extending coverage by 1500 ft² (140 m²) . Enjoy seamless roaming for uninterrupted connectivity.
Effortless Installation with AC Power
Overcome cabling challenges with EAP673-Extender, delivering seamless Wi-Fi via AC power. Enjoy stable, high-performance coverage—no extra wires needed.
AP Mode for Flexible Deployment
EAP673-Extender's built-in AP mode delivers a robust, stable Wi-Fi signal without a PoE switch or infrastructure renovations, enhancing flexibility and reducing costs.
HARDWARE FEATURES
Interface
1× Gigabit Ethernet Port
Physical Security Lock
No
Button
Reset, LED
Power Supply
100-240 V ~ 50/60 Hz
Power Consumption
18 W
Dimensions
6.3 × 3.1 × 1.5 in (160 × 80 × 37.8 mm)
Antenna
4× External Antennas
- 2.4 GHz: 2× 3 dBi
- 5 GHz: 4× 5 dBi
Mounting
Plug in
WIRELESS FEATURES
Coverage
140 ? (1500 ft²)***
Concurrent Clients
250+**
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
- 5 GHz: Up to 4804 Mbps
- 2.4 GHz: Up to 574 Mbps
Wireless Functions
- 16 SSIDs (Up to 8 SSIDs on each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Seamless Roaming§
- Beamforming
- Rate Limit
- Load Balance
- Airtime Fairness
- Band Steering
- Reboot Schedule
- Wireless Schedule
- RADIUS Accounting
- MAC Authentication
- Wireless Statistics
- Static IP/Dynamic IP
Wireless Security
- Captive Portal Authentication§
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE:
<20 dBm (2.4 GHz, EIRP)
<23 dBm (5 GHz, band1 & band2, EIRP)
<30 dBm (5 GHz, band3, EIRP)
- FCC:
<25 dBm (2.4 GHz)
<28 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
- Omada Hardware Controller
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access
Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Yes
SSH
Yes
Web-based Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification
CE, FCC, IC, RoHS, UL
Package Contents
- AX5400 Mesh WiFi 6 Extender EAP673-Extender
- Installation Guide
Environment
- Operating Temperature: 0–40 ? (32–104 ?)
- Storage Temperature: -40–70 ? (-40–158 ?)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
