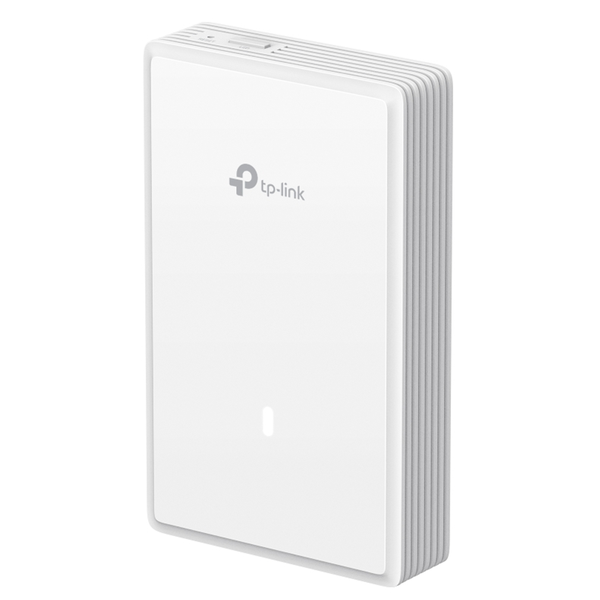

TP-Link Omada EAP725-Wall (BE3600) Dual-Band 4-Stream Wall-Plate Wi-Fi 7 Access Point
BE3600 Wall Plate Wi-Fi 7 Access Point
- BE3600 Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).*
- 1× 2.5G PoE input port + 1× 2.5G pass-through port + 2× Gigabit RJ45 downlink ports.
- 160 MHz bandwidth enables many more simultaneous transmissions.**
- Multi-RUs ensure the high performance of your network.**
- Advanced Functions: Centralised management, Mesh, and Seamless Roaming.***
BE3600 Wi-Fi 7 Wall Plate Access Point for Ultra-Fast Connectivity
Wi-Fi 7: Swifter, Smoother, Stronger
Dual-Band Wi-Fi 7 Throughput
Dedicated and Complete, Private Wi-Fi Networks for Every Room
Optimised Wired Performance with 2.5G PoE Ports
With 2.5G PoE input and pass-through ports, along with two Gigabit RJ45 ports, enjoy high-speed data transfers and connect multiple devices to your gigabit network. Wired devices, such as VoIP phones, can be powered without the need for additional electrical cables.
*The PoE pass-through feature requires 802.3at/bt PoE input.
Boosted Network Security
Seamless Integration into the Omada SDN
Remotely manage your access points, switches, and routers across multiple sites — all from a single interface.
Build Features
Note
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 160 MHz bandwidth is only available on the 5GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
**Use of Wi-Fi 7 (802.11be) and features including 160 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.
***Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
Hardware
Interface
Uplink: 1× 2.5G Ethernet Port
Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input.)
Physical Security Lock
No
Button
Reset, LED
Power Supply
802.3at/bt PoE
Max. Power Consumption
802.3bt: 17W (PoE Out support 15.4W)
802.3at: 17W (PoEOut support 7W)
Dimensions ( W x D x H )
143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in)
Antenna
4× Internal Antennas
2.4 GHz: 2× 4 dBi
5 GHz: 2× 5 dBi
Mounting
Wall Mounting (Kits included)
Wireless
Coverage
50 m²(600 ft²)
Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
Concurrent Clients
250+
The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 2882 Mbps
2.4 GHz: Up to 688 Mbps
Wireless Functions
16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming
Beamforming
Rate Limit (Based on SSID/Client)
Load Balance
Airtime Fairness
Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Management
Omada App
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
System Log
SSH
Yes
Web-based Management
Yes
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.
Others
Certification
CE, RoHS
Package Content
BE3600 Wall Plate Wi-Fi 7 Access Point
Installation Guide
Mounting Kits
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
Operating Temperature: 0-40 ? (32-104 ?)
Storage Temperature: -40-70 ? (-40-158 ?)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
- Interface
- Uplink: 1× 2.5G Ethernet Port
- Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input.)
- Physical Security Lock
- No
- Button
- Reset, LED
- Power Supply
- 802.3at/bt PoE
- Max. Power Consumption
- 802.3bt: 17W (PoE Out support 15.4W)
- 802.3at: 17W (PoEOut support 7W)
- Dimensions ( W x D x H )
- 143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in)
- Antenna
- 4× Internal Antennas
- 2.4 GHz: 2× 4 dBi
- 5 GHz: 2× 5 dBi
- Mounting
- Wall Mounting (Kits included)
- Coverage
- 50 m²(600 ft²)
- Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
- Concurrent Clients
- 250+
- The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
- Wireless Standards
- IEEE 802.11 a/b/g/n/ac/ax/be
- Frequency
- 2.4 GHz and 5 GHz
- Signal Rate
- 5 GHz: Up to 2882 Mbps
- 2.4 GHz: Up to 688 Mbps
- Wireless Functions
- 16 SSIDs (Up to 8 SSIDs on each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Seamless Roaming
- Beamforming
- Rate Limit (Based on SSID/Client)
- Load Balance
- Airtime Fairness
- Band Steering
- Reboot Schedule
- Wireless Schedule
- RADIUS Accounting
- MAC Authentication
- Wireless Statistics
- Static IP/Dynamic IP
- Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Omada App
- Yes
- Centralized Management
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
- Cloud Access
- Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Email Alerts
- Yes
- LED ON/OFF Control
- Yes
- Management MAC Access Control
- Yes
- SNMP
- v1, v2c, v3
- System Logging Local/Remote Syslog
- System Log
- SSH
- Yes
- Web-based Management
- Yes
- L3 Management
- Yes
- Multi-site Management
- Yes
- Management VLAN
- Yes
- Zero-Touch Provisioning
- Yes. Requiring the use of Omada Cloud-Based Controller.
- Certification
- CE, RoHS
- Package Content
- BE3600 Wall Plate Wi-Fi 7 Access Point
- Installation Guide
- Mounting Kits
- System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
- Environment
- Operating Temperature: 0-40 ? (32-104 ?)
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
