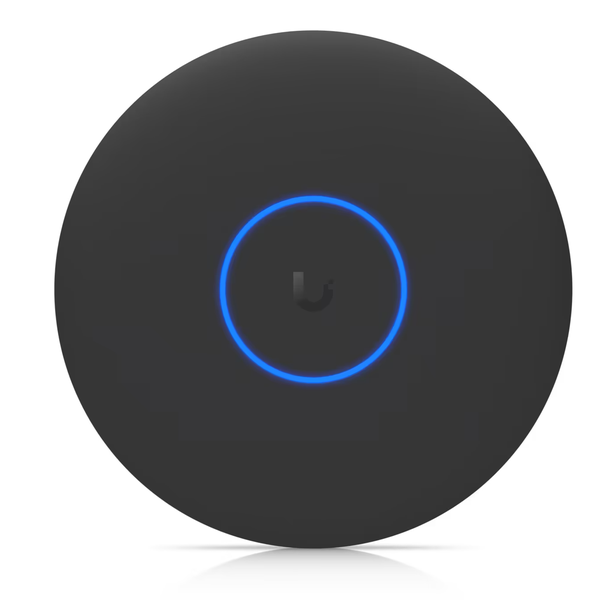

Ubiquiti UniFi U7-PRO-XGS (BE15000) Tri-Band 8-Stream Wi-Fi 7 Access Point with 10GbE x1 (PoE++ 29W)
The U7 Pro XGS Black is Ubiquiti's premium, ceiling- or wall-mounted Wi-Fi 7 access point, tailored for high-density enterprise environments such as campuses, hotels, and large offices. It operates on tri-band (2.4 GHz, 5 GHz, 6 GHz) with eight spatial streams (2x2 MIMO on 2.4 GHz and 6 GHz; 4x4 MIMO on 5 GHz), enabling total throughput of up to 8.6 Gbps on 5 GHz, 5.8 Gbps on 6 GHz, and 688 Mbps on 2.4 GHz. The combined aggregate bandwidth reaches approximately 15 Gbps, supporting over 500 simultaneous clients and covering around 160 m² (1,750 ft²). Distinctively, the U7 Pro XGS features a dedicated spectral scanning radio that performs real-time interference analysis-optimizing channel selection and system performance in crowded wireless environments. Its fanless, flat-metal base design serves as a robust passive heat sink, enhancing reliability and reducing noise compared to earlier UniFi models. The device includes a single 10 Gigabit Ethernet (10GBASE-T) RJ45 port, backward-compatible with 5 G, 2.5 G, and 1 G speeds, and delivers power over PoE++ (802.3bt). It supports a voltage range of 42.5 - 57 V DC and consumes up to 29 W. In terms of radio performance, the device offers antenna gain of 6 dBi on both the 5 GHz and 6 GHz bands, and 4 dBi on 2.4 GHz. The maximum transmit powers are rated at 29 dBm (5 GHz), 24 dBm (6 GHz), and 23 dBm (2.4 GHz). It supports up to eight BSSIDs per radio, and wide channel bandwidths-from 20 up to 240 MHz on 5 GHz, and up to 320 MHz on 6 GHz. This access point integrates a full suite of enterprise software features, including band steering, mesh networking, 802.11k/r/v roaming, Zero-Wait DFS, Passpoint (Hotspot 2.0), spectral analysis, guest portal authentication (voucher, payment, PPSK, RADIUS/TLS, VLAN), client isolation, per-SSID speed limits, and schedule-based control. It requires UniFi Network Controller version 9.1.120 or later.
- Dimensions
- 215 (diameter) x 32.5 mm
- WiFi Standard
- WiFi 7
- Spatial Streams
- 8
- Coverage Area
- 160 m² (1,750 ft²)
- Max. Client Count
- 500+
- Uplink
- 10 GbE
- Mounting
- Ceiling, Wall (Lite Mount Included)
- Power Method
- PoE++
- MIMO
- 6 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 4 x 4 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 6 GHz: 5.8 Gbps (BW320)
- 5 GHz: 8.6 Gbps (BW240)
- 2.4 GHz: 688 Mbps (BW40)
- Antenna Gain
- 6 GHz: 6 dBi
- 5 GHz: 6 dBi
- 2.4 GHz: 4 dBi
- Max. TX Power
- 6 GHz: 24 dBm
- 5 GHz: 29 dBm
- 2.4 GHz: 23 dBm
- Max. BSSIDs
- 8 per Radio
- Supported Data Rates
- 802.11be (WiFi 7)
- 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
- 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
- 802.11ax (WiFi 6)
- 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
- 802.11ac (WiFi 5)
- 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- 802.11n
- 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
- Wireless Meshing
- Yes
- Band Steering
- Yes
- 802.11v BSS Transition Management
- Yes
- 802.11r Fast Roaming
- Yes
- 802.11k Radio Resource Management (RRM)
- Yes
- Zero-Wait DFS
- Yes
- Advanced Radio Management
- Yes
- Real-Time Spectral Analysis
- Yes
- Passpoint (Hotspot 2.0)
- Yes
- Custom Branding Landing Page
- Yes
- Voucher Authentication
- Yes
- Payment-Based Authentication
- Yes
- External Portal Server Support
- Yes
- Password Authentication
- Yes
- Guest Network Isolation
- Yes
- Private Pre-Shared Key (PPSK)
- Yes
- WiFi Speed Limiting
- Yes
- Client Device Isolation
- Yes
- WiFi Schedules
- Yes
- RADIUS over TLS (RadSec)
- Yes
- Dynamic RADIUS-assigned VLAN
- Yes
- Max. Power Consumption
- 29W
- Supported Voltage Range
- 42.5-57V DC
- Networking Interface
- (1) 10 GbE RJ45 port
- Weight
- 800 g (1.8 lb)
- Management
- Ethernet
- Enclosure Material
- UV-stabilized polycarbonate, aluminum alloy
- Mount Material
- Stainless steel (SUS304), galvanized steel (SGCC)
- LEDs
- System: White/Blue
- Channel Bandwidth
- HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
- NDAA Compliant
- Yes
- Certifications
- CE, FCC, IC
- Ambient Operating Temperature
- -30 to 40° C (-22 to 104° F)
- Ambient Operating Humidity
- 5 to 95% noncondensing
- Application Requirements
- UniFi Network: Version 9.1.120 and later
