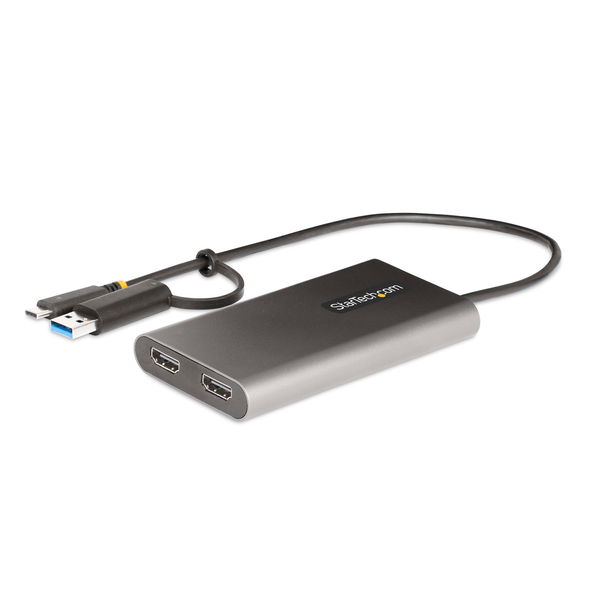

StarTech.com 109B-USBC-HDMI USB-C to Dual-HDMI Adapter 4K 60Hz PD
Power Delivery Pass-Through
The USB video adapter features USB Power Delivery (PD) 3.0 pass-through (up to 100W), enabling powering and charging of a laptop when connected to a USB-C power adapter. The adapter runs on USB bus-power when no USB-C power adapter is connected. PD 3.0 features Fast Role Swap (FRS) that prevents USB data disruption when USB-C power is disconnected and the adapter switches to USB bus power.
DisplayLink Certified 4K 60Hz Resolution
The USB multi-monitor adapter is DisplayLink Certified and supports high-performance dual-monitor 4K 60Hz video resolutions with an integrated DisplayLink DL-6950 Controller.
Comprehensive Compatibility
The USB video adapter is compatible with Windows, macOS, Ubuntu, and Chrome OS. The integrated USB-C to USB-A adapter enables the flexibility of connecting to any host that is running a compatible operating system. The built-in 1ft (30cm) USB-C/A cable is ideal for on the go use. The length of the cable and the strain reliefs reduce connector/port strain.
- USB TO DUAL HDMI: This USB-C or USB-A to Dual-HDMI Adapter adds up to two 4K 60Hz HDMI monitors to a computer; 100W Power Delivery pass-through with up to 90W host charging; 5.1ch HDMI Audio; 2x DisplayLink based HDMI Outputs
- APPLE M1/M2 COMPATIBLE: Works with macOS enabling extended dual displays on USB-C and Thunderbolt 3/4 laptops including Apple M1 / M2 MacBooks which are not natively capable of driving more than one external display; Requires Driver Download for macOS
- DISPLAYLINK CERTIFIED: Universal Adapter works w/ Windows, macOS, Ubuntu, and ChromeOS; Automatic driver install in Windows & ChromeOS; Works with USB 3.2 Gen 1 (5Gbps), USB-C, USB4, Thunderbolt 3/4; 1ft/30cm built-in cable to reduce port/connector strain
- EXTERNAL VIDEO GRAPHICS ADAPTER: Connect additional displays when extra video ports are not available on the laptop or dock; Use with two external monitors and a workstation laptop screen; Ideal for business productivity apps, not ideal for gaming
- RELIABLE PERFORMANCE: USB bus powered or 100W PD pass-through (10W reserved for adapter + 90W for laptop charging); Prevents device dropouts, video flickering, and power overdraw; Aluminum enclosure provides EMI shielding and helps with heat dissipation
Connector(s)
Connector A
1 - USB 3.2 Type-C (Power Delivery + Data, 24 Pin, Gen 1, 5 Gbps)
1 - USB Type-A (9 pin, 5 Gbps)
Connector B
2 - HDMI
1 - USB Type-C (24 pin) USB Power Delivery Only
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
20 to 80% RH
Hardware
Active or Passive Adapter
Active
AV Input
USB-C/USB 3.2 Gen 1 (5Gbps)
Ports
2
AV Output
HDMI
Audio
Yes
USB Pass-Through
No
Chipset ID
DisplayLink - DL6950
Packaging Information
Package Length
5.6 in [14.3 cm]
Package Width
6.9 in [17.4 cm]
Package Height
1.2 in [3.0 cm]
Shipping (Package) Weight
7.1 oz [200.0 g]
Package Quantity
1
Performance
Maximum Digital Resolutions
3840 x 2160 @ 60Hz
Supported Resolutions
3840×2160, 2560×1440, 1920×1080, 1600×900, 1280×720
Lower resolutions may be supported
Wide Screen Supported
Yes
Audio Specifications
HDMI - 5.1 Channel Audio
Physical Characteristics
Color
Gray
Product Length
4.4 in [11.3 cm]
Product Width
2.4 in [6.0 cm]
Product Height
0.6 in [1.5 cm]
Weight of Product
4.3 oz [121.0 g]
Material
Aluminum and Plastic
Cable Length
11.8 in [30 cm]
Power
Power Source
Bus Powered and Host USB-C Power Adapter
Laptop Charging via Power Delivery
90W
Power Consumption (In Watts)
10W
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
macOS 10.11 - 10.12, 10.14 - 10.15, 11.0, 12.0, 13.0
Ubuntu 18.04, 20.04
ChromeOS™ v55+
