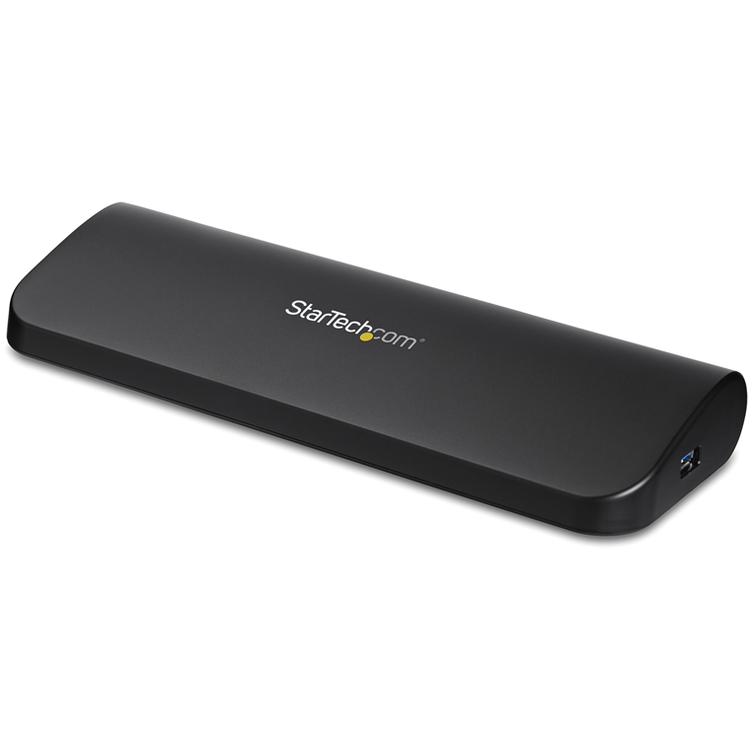

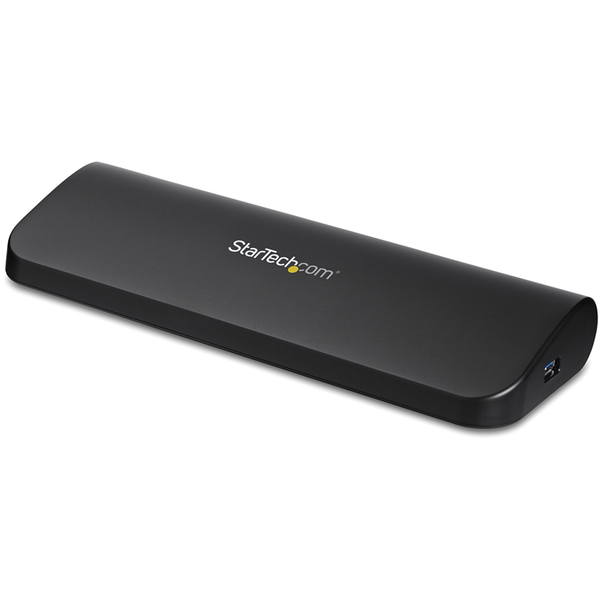

StarTech.com USB 3.0 Dual 2K HDMI x1, DVI x1, VGA x1, Docking Station.
This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.
Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.
Available display combinations:
- HDMI + VGA
- HDMI + DVI
Integrated USB Hub
The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.
Applications
- Shared workspaces
- Hot/Remote desks
- Convert laptop to desktop workstation
The StarTech.com Advantage
- Save time by connecting multiple peripherals through a single cable
- Increase available screen space with dual independent HD video outputs
- Expand connectivity with additional USB 3.0 ports
HARDWARE
4K Support
No
Bus Type
USB 3.0
Chipset ID
DisplayLink - DL-3900
Genesys Logic - GL3520
Realtek - RTL8211E
Displays Supported
2
Fast-Charge Port(s)
No
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0
PERFORMANCE
Audio Specifications
The HDMI port supports audio output
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Maximum Analog Resolutions
2048x1152 (VGA)
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions
1920x1200 (DVI-D)
1920x1080 (HDMI)
Lower resolutions are also supported.
Type and Rate
USB 3.0 - 5 Gbit/s
CONNECTOR(S)
Connector Type(s)
1 - DVI-D (25 pin) Female
1 - HDMI (19 pin) Female
1 - RJ-45 Female
1 - USB Type-B (9 pin) USB 3.0 Female
1 - VGA (15 pin, High Density D-Sub) Female
2 - 3.5 mm Mini-Jack (3 Position) Female
3 - USB Type-A (9 pin) USB 3.0 Female
SOFTWARE
OS Compatibility
Windows® XP SP3 (32-bit), Vista, 7, 8, 8.1, 10
macOS 10.6 - 10.12, 10.14
SPECIAL NOTES / REQUIREMENTS
System and Cable Requirements
Available AC electrical outlet
HDMI (and either DVI-D or VGA if dual display is desired) enabled display device(s) e.g. monitor, projector, HTDV, etc. with cables
USB 3.0 enabled computer system with available USB 3.0 port
POWER
Center Tip Polarity
Positive
Input Current
0.9 A
Input Voltage
100 ~ 240 AC
Output Current
4 A
Output Voltage
5 DC
Plug Type
B
Power Consumption (In Watts)
20
Power Source
AC Adapter Included
ENVIRONMENTAL
Humidity
0~90% RH
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 60°C (14°F to 140°F)
PHYSICAL CHARACTERISTICS
Cable Length
3 ft [0.9 m]
Color
Black
Enclosure Type
Plastic
Product Height
1.7 in [44 mm]
Product Length
12 in [304 mm]
Product Weight
10.4 oz [295 g]
Product Width
7 in [178 mm]
