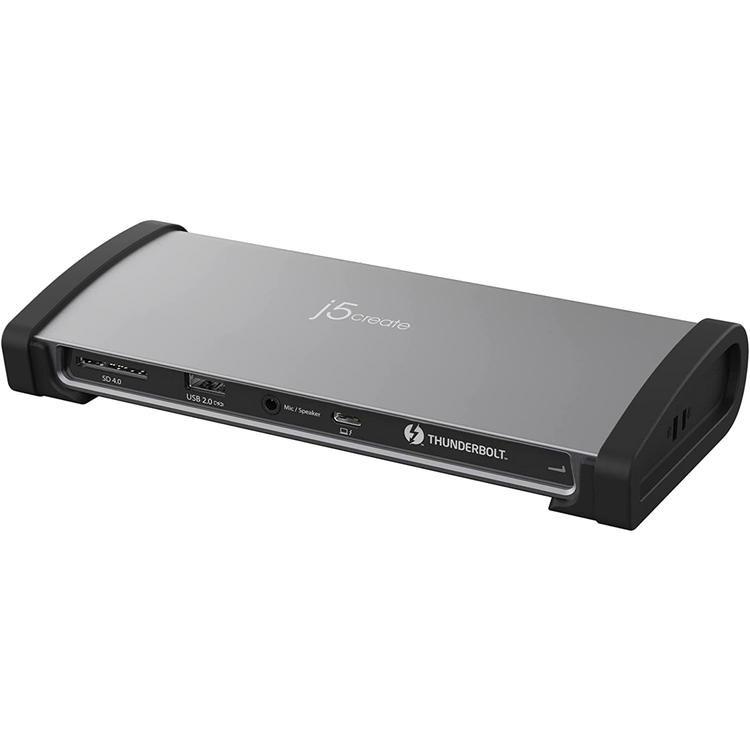

This Thunderbolt™ 4 Docking Station turns your Mac® or Windows® laptop into a full workstation with three Thunderbolt™ 4 outputs. Supports resolution up to dual display 4K or one display at 8K. Great for content creators, professionals, and enthusiast that require high resolution displays for the best visual experience.
With 96W Power Delivery, three USB™ 3.2 ports, and a USB-C® port, this docking station is perfect for your MacBook®, or Windows® laptop that support Thunderbolt™ 4 allowing you to add high-speed ports to your laptop. This Thunderbolt™ 4 docking station also has an RJ45 Gigabit Ethernet port, SD™ 4.0 memory card reader/writer, and combo audio jack for added flexibility.
All 11 ports are combined into one slim docking station, so you will have all the connections you need to stay productive!
11-in-1 Functions
Maximize productivity with 11-in-1 functions
High Quality Video Experience with 8K 60Hz Resolution
Increase Productivity with Dual 6K 60Hz Display
Comes With Two 4K DisplayPort™ Cables (JCA141)
With refresh rates of 4K 144 Hz and 8K 60 Hz, you can get the most out of your movie and gaming experiences.
Thunderbolt™ Daisy Chain Support
Equipped with 3 Thunderbolt™ 4 ports with 40Gbps ultra-high speeds and let you create 3 separate daisy chains.
Extreme Speed of 40Gbps for Maximum Performance
Large files, such as videos or images, can be transferred in seconds.
High-Speed Charging
PD 96W and USB™ BC1.2 quick-charging capabilities for your laptop and mobile device.
Wide Compatibility
With an Intel® Thunderbolt™ 4 chip specifically designed for MacBook Pro® 2021 and Thunderbolt™ 4 laptops.
Premium Aluminum Construction
High-quality, long-lasting construction offers excellent protection and effcient heat dissipation.
Anti-Theft Protection
Security slot to prevent equipment theft in a wide range of business or institutional environments.
Hardware
Audio SupportedYesHost Connector
1 - Thunderbolt™ 4 Female
Network InterfaceRJ45 (Gigabit Ethernet)Ports
1 - USB-C® Power Delivery 96W (Host)
3 - Thunderbolt™ 4 USB-C® 40Gbps
3 - USB™ 3.2 Type-A Gen 2 10Gbps
1 - USB™ 2.0 Type-A with BC1.2 fast charging
1 - SD™ 4.0 UHS-II 312 MB/s memory card
reader/writer
1 - 3.5 mm combo audio jack
1 - RJ45 Gigabit Ethernet
Power SourceSelf-poweredVideo Output
3 - Thunderbolt™ 4 Female
Performance
Audio Channel
3 -Thunderbolt™ 4 / 3.5 combo audio jack
Compatible Networks
10/100/1000 Base-T, auto-negotiating
Displays Supported
2
Max Data Transfer Rate
40Gbps
Max Display Refresh Rate
60 Hz via Thunderbolt™ 4
Max Display Resolution
Thunderbolt™ Mode
2 - 4K @ 60 Hz
1 - 4K @ 120 Hz (Via DP™)
1 - 4K @ 144 Hz (with DSC)
1 - 8K @ 30 Hz
1 - 8K @ 60 Hz (with DSC)
MFDP Mode (Base on HBR3 Host)
1 - 4K @ 60 Hz
Power
Input Current
2.5A
Input Voltage
110V-240V
Output Current
6.75A
Output Voltage
20V
Power Consumption
1.2A
Power Delivery
96W
Physical Specifications
Cable Length
2.3 ft. / 70 cm
Color
Black / Space Grey
Enclosure Type
Aluminum
Operating Humidity
< 85% non-condensing
Operating Temperature
32 to 118°F (0 to 48°C)
Product Depth
1.21in./ 30.85 mm
Product Height
7.64 in./194 mm
Product Weight
14.5 oz /411g
Product Width
3.32 in./ 84.39 mm
Storage Humidity
< 85% non-condensing
Storage Temperature
14 to 149°F (-10 to 65°C)
Package Contents
1 - JTD562 Thunderbolt™ 4 Docking Station
1 - 135W AC adapter with up to 96W PD charge
1 - Thunderbolt™ 4 to Thunderbolt™ 4 Cable (2.3 ft / 70 cm)
2 - USB-C® to 4K DisplayPort™ Cable (JCA141)
1 - Quick Installation Guide (QIG)
