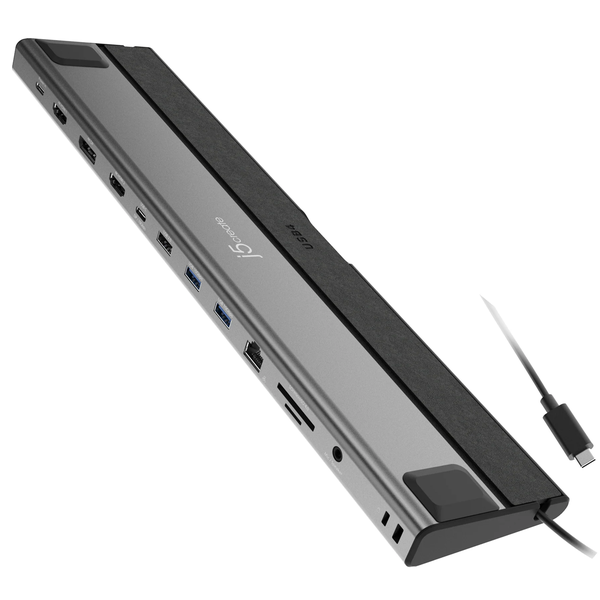

J5create USB4 Triple 4K Display Docking Station with 85W Power Delivery
JCD554 USB4® Triple 4K Display Docking Station This high-performance USB4® Triple 4K Display Docking Station is the first USB-C® docking to incorporate a USB4® controller from Intel®, offering compatibility with Thunderbolt™ 4 and USB4® laptops. No driver installation is required for use making it an easy-to-use docking station solution. With up to 40Gbps of throughput and dynamic data and display bandwidth allocation for efficient display data flow, you can easily create a Triple-monitor setup with up 4K resolution using DisplayPort™ , HDMI™ or USB-C® and access data faster without affecting system performance. Additionally, it has three USB™ 3.2 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals, as well as a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W pass-through power. A USB™ 2.0 port is also included for connecting your wireless USB™ mouse or keyboard with reduced latency. 12 Functions In One Sleek Design For All Your Needs
Supports Up to Triple 4K60 Display For Improved Productivity It's recommended to connect to Thunderbolt™ 4 or USB4® computers for the best performance.
Latest Intel® USB4® High-Performance Controller
Include A USB-C® Port Supports 4K60 Display And 10Gbps Transfer Speed
Supports USB™ 3.2 Gen 2 10Gbps Ultra-High Speed
Connect Your Peripherals Without Hassle
Integrate A Ultra-High Speed SD™/ microSD™ 4.0 Card Reader
Supports A Gigabit Ethernet for Faster And More Stable Internet Connection
Offers Powerful Pass-Through Charging For Your Laptop
Premium Aluminum Construction with Exquisite Leather Craftsmanship
Equipped with a K-Slot To Protect Against Theft
Cable Storage With Dual Openings, Allows You To Connect A Laptop With Ease
Compatible with Thunderbolt™ 4 and USB4®, Works With Windows® and macOS®
Elevate your workspace with this perfect companion for optimal productivity
- Audio supportedYeshost connector
- 1 - USB4® Male
- Network interface
- RJ45 (Gigabit Ethernet)
- Ports
- 1 - USB-C® 10Gbps with DP™ Alt mode
- 1 - USB™ Type-A USB™ 2.0 (480 Mbps)
- 2 - USB™ Type-A 3.2 Gen 2 (10Gbps)
- 1 - 4K DisplayPort™
- 2 - 4K HDMI™
- 1 - SD™ / microSD™ 4.0 Card
- 1 - Gigabit Ethernet
- 1 - USB-C® Power Delivery 3.0
- 1 - 3.5mm Audio combo
- Power source
- Bus-powered or self-powered
- Video output
- 1 - DisplayPort™ Female
- 2 - HDMI™ Female
- 1 - USB-C® with DisplayPort™ Alternate Mode
- Audio channe
- l2.1 via HDMI™ / DP™ / USB-C®
- Compatible networks
- Yes
- Displays supported
- 3
- Max data transfer rate
- 10Gbps
- Max display refresh rate
- 4K @ 60 Hz
- Max display resolution
- Single Display with DSC:
- - 3840 x 2160 @ 60 Hz
- - 2560 x 1440 @ 120Hz / 144 Hz
- - 1920 x 1080 @ 144 Hz
- Dual Display with DSC:
- - 3840 x 2160 @ 60 Hz
- - 3840 x 2160 @ 60 Hz
- Triple Display with DSC:
- Windows® (TBT4 / USB4® + MST)
- - 3840 x 2160 @ 60 Hz
- - 3840 x 2160 @ 60 Hz
- - 3840 x 2160 @ 60 Hz
- Input current
- Up to 3A
- Input voltage
- Up to 20V
- Output current
- Up to 4.25A
- Output voltage
- Up to 20V
- Power consumption
- 900 mA
- Power delivery
- Up to 85W via USB-C®
- Cable length
- 1.64 ft (50 cm)
- Color
- Space Gray & Black
- Enclosure type
- Aluminum
- Operating humidity
- < 85% non-condensing
- Operating temperature
- 30 to 116°F (-1 to 41°C)
- Product depth
- 3.20 in. (81.39 mm)
- Product height
- 0.93 in. (23.56 mm)
- Product weight
- ˜ 16.33 oz (463g)
- Product width
- 13.54 in. (344mm)
- Storage humidity
- < 85% non-condensing
- Storage temperature
- 0 to 155°F (-17 to 68°C)
- Package Contents
- 1 - JCD554 USB4® Triple 4K Display Docking Station
- 1 - Quick Installation Guide (QIG)
