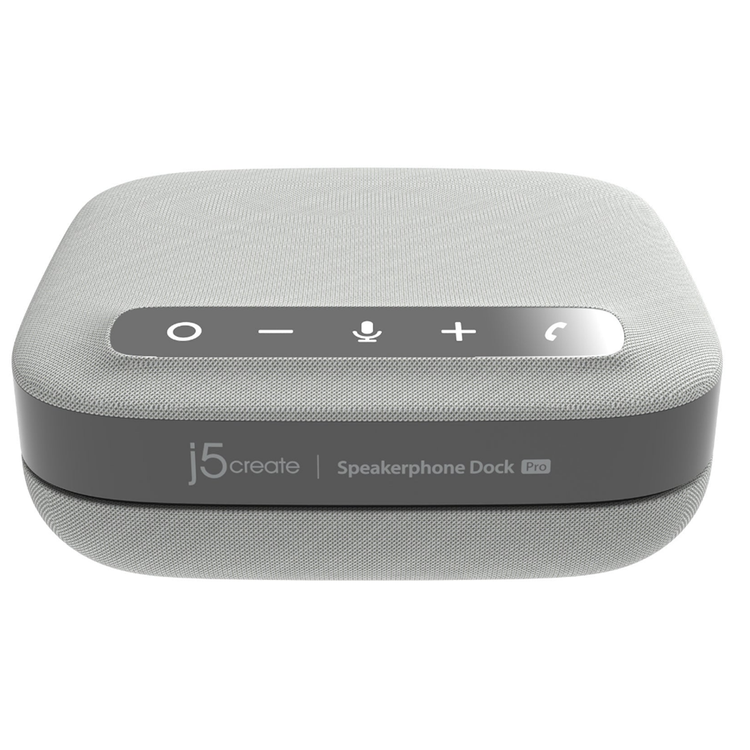

The USB-C® Dual 4K Speakerphone Dock Pro that turns your laptop into a full workstation and conferencing device. Includes two 4K HDMI™ outputs and one Type-C Power In port that supports up to 100W Power Delivery for charging laptops with a Type-C power adapter. Has two USB™ Type-A 10Gbps ports, and one USB-C® 10Gbps port for connecting a variety of USB™ devices. The docking station is also equipped with an RJ45 Gigabit Ethernet port for high-speed network connectivity.
The speaker & microphone function provides crystal-clear audio for conference calls. Four omnidirectional microphones are included to pick up voices from around the conference table and uses Acoustic Echo Cancellation to eliminate echo and unwanted background noise. The built-in buttons make it simple to initiate calls, hang up and mute/unmute and adjust the volume. The speakerphone dock is small and lightweight for easy placement and transportation. It’s plug-and-play and ready to use with your favorite video conferencing apps. All docking and speakerphone functions are combined into one compact docking station, so you will have all the connections you need to stay productive!
- Docking station with meeting controls and speakerphone
- Built-in 4 microphones array which deliver natural vocal sound with reduced background noise
- Support MST dual 4K display * macOS® doesn’t support MST, will only support mirroring two monitors on Mac® devices
- Bluetooth® 5.2 or USB™ plug-and-play connection
- High-quality, crystal-clear audio
- Digital signal processing technologies:
- Acoustic Echo Cancellation (AEC) reduces background noise and blocks the microphone from
receiving sound from your own speakers
- Automatic Noise Reduction (ANR) reduces background noise
- Automatic Gain Control (AGC) built into the microphone to ensure conference audio quality
- Compatible with video conferencing apps: Amazon Chime™, BlueJeans™, Cisco®, Facebook™, Messenger, Google Meet™, GoToMeeting®, Microsoft Teams™, Skype™, Skype™ for business, Slack™, Zoom™, etc.
Hardware
Audio Supported
Yes
Controls
Touch Key
- Volume Up
- Volume Down
- Microphone Mute / Unmute
- Answer call / Hang Up
- Bluetooth® / USB™ mode switch
Host Connector
USB-C® Female
Network Interface
RJ45 (Gigabit Ethernet)
Ports
2 x HDMI™ 4K@60Hz HDR
2 x USB™ Type-A 3.2 Gen 2 (10Gbps)
1 x USB-C® 3.2 Gen 2 (10Gbps)
1 x RJ45 Gigabit Ethernet
1 x USB-C® PD 100W
Power Source
Bus-powered or Self-powered
Speaker - Mic
4 x mic array
1 x 5W speaker
Video Output
2 - 4K HDMI™ Female
Performance
Audio Channel
2.0 via HDMI™
Audio Microphone
- Frequency: 100 Hz - 8 kHz
- Sampling rate: 16KHz
Audio Speaker
- Frequency: 150 Hz - 20 kHz
- Max Output Level: 80 dB SPL @ 1 Meter
- Neodymium magnet
- Sampling rate: 16bit
Compatible Networks
10/100/1000 Base-T, auto-negotiating
Displays Supported
2 (4K HDMI™) - Windows® (MST)
Max Data Transfer Rate
10Gbps
Max Display Resolution
Single Display:
- 3840 x 2160 @ 60 Hz
- 2560 x 1440 @ 144 Hz
- 1920 x 1080@ 144 Hz
Dual Display:
- 3840 x 2160 @ 60 Hz + 3840 x 2160 @ 60 Hz
Microphone
Built-in 4 microphones array
*Audio pickup radius of 400cm / 13 ft
Speakerphone
Built-in 5W speaker with bass diaphragm
Voice Processing
- Acoustic Echo Cancellation (AEC)
- Automatic Gain Control (AGC)
- Automatic Noise Reduction (ANR)
Power
Input Current
5A
Input Voltage
20V
Output Current
4.25A
Output Voltage
20V
Power Consumption
= 300 mA
Power Delivery
100W
Physical Specifications
Cable Length
39.37 in. (100 cm)
Color
Dark Grey & White
Enclosure Type
PC+ABS
Operating Humidity
< 85% non-condensing
Operating Temperature
32 to 118°F (0 to 48°C)
Product Depth
5.11 in. (130 mm)
Product Height
1.88 in. (47.8 mm)
Product Weight
0.83 lbs. (377 g)
Product Width
5.11 in. (130 mm)
Storage Humidity
< 85% non-condensing
Storage Temperature
14 to 149°F (-10 to 65°C)
Package Contents
1 - JCDS337 USB-C® Dual 4K Speakerphone Dock Pro
1 - USB-C® cable (Length: 100 cm / 3.3 ft.)
1 - Quick Installation Guide (QIG)
