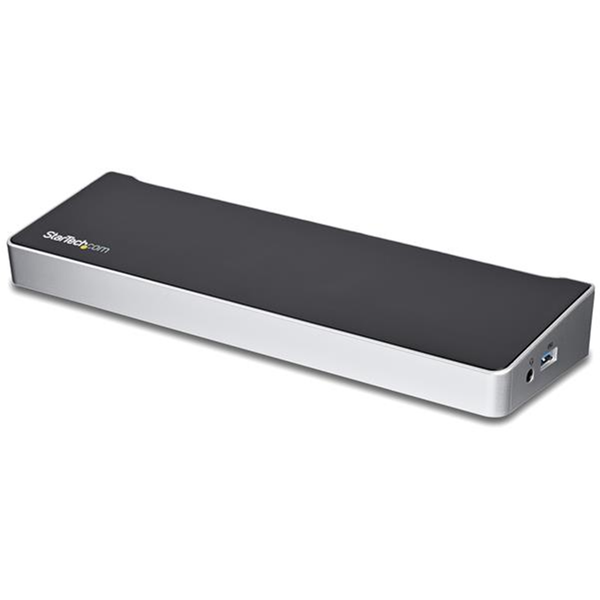

StarTech.com USB-C Triple 4K Docking Station with 100W Power Delivery
This triple-4K dock for Mac, Windows and Chrome USB-C laptops?helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.
You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported. Enhance Productivity The 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect: 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports. 100W Power Delivery Using a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.
Powerful Connections This triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports. Applications - Ideal for 4K video editing or working with high-resolution graphics- Work on multiple documents simultaneously in office applications- View multiple monitors at a glance, in financial or investment firms- Enhanced Power Delivery (100W) supports power-hungry laptops
- 4K Support
- Yes
- Bus Type
- USB-C
- Chipset ID
- DisplayLink - DL-6950
- Genesys Logic - GL3523
- Genesys Logic - GL3523S
- Texas Instruments - TPS65982
- Parade Technologies - PS176
- Displays Supported
- 3
- Fast-Charge Port(s)
- Yes
- Industry Standards
- USB Power Delivery Specification Rev. 2.0
- USB Battery Charging Specification Rev. 1.2
- DisplayPort 1.2
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- USB 3.0 - Backward compatible with USB 2.0 and 1.1
- Auto MDIX
- Yes
- Compatible Networks
- 10/100/1000 Mbps
- Full Duplex Support
- Yes
- Maximum Data Transfer Rate
- 5 Gbps (USB 3.0)
- 2 Gbps (Ethernet; Full-Duplex)
- Maximum Digital Resolutions
- 1x HDMI (DP Alt Mode) - 4096 x 2160p @24Hz / 3840 x 2160p @30Hz
- 2x DisplayPort (DisplayLink) - 4096 x 2160p @60Hz / 3840 x 2160p @60Hz
- 1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz
- Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
- Type and Rate
- USB 3.0 - 5 Gbit/s
- UASP Support
- Yes
- Connector Type(s)
- 2 - DisplayPort (20 pin) Female
- 1 - HDMI (19 pin) Female
- 2 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
- 1 - USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female
- 3 - USB Type-A (9 pin) USB 3.0 Female
- 1 - RJ-45 Female
- 1 - 3.5 mm Mini-Jack (4 Position) Female
- 2 - 3.5 mm Mini-Jack (3 Position) Female
- 1 - Security Lock Slot Female
- OS Compatibility
- Windows® 7, 8, 8.1, 10
- macOS 10.9 - 10.12, 10.14
- Chrome OS™ v55+
- Note
- - Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
- - 4K resolution is supported on all 3 video ports. A 4K-capable display is required to achieve 4Kx2K resolution
- - If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included)
- - USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
- - 5K resolution is supported by connecting the two DisplayPort video ports to a single 5K display. A 5K-capable display is required to achieve 5K (5120 x 2880 60Hz) resolutions
- - The dock connects to the USB-C port on your laptop. The dock can also be connected to the USB-A port on laptops using a USB-C to A cable, sold separately, but only dual display is supported, and Power Delivery to charge your laptop is not available through USB-A
- System and Cable Requirements
- USB-C enabled computer with an available USB Type-C port
- Center Tip Polarity
- Positive
- Input Current
- 2.5 A
- Input Voltage
- 100 ~ 240 AC
- Output Current
- 7.5 A
- Output Voltage
- 20V DC
- Plug Type
- N
- Power Delivery
- 100W
- Power Source
- AC Adapter Included
- Humidity
- 0~70% RH
- Operating Temperature
- 0°C to 40°C (32°F to 104°F)
- Storage Temperature
- -20°C to 60°C (-4°F to 140°F)
- Color
- Black & Silver
- Enclosure Type
- Plastic
- Product Height
- 1.3 in [3.4 cm]
- Product Length
- 10.6 in [27 cm]
- Product Width
- 3.2 in [82 mm]
- Weight of Product
- 13.6 oz [385 g]
