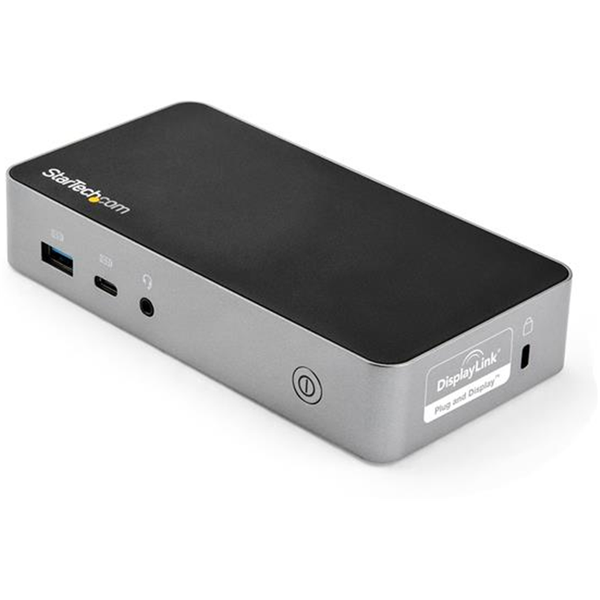

StarTech.com USB-C Dual FHD Docking Station with 65W Power Delivery
FULL FEATURE USB-C DOCKING STATION
Offers dual screen 1080p HDMI video, 3x USB-A, 1x USB-C, 60W Power Delivery, Gigabit Ethernet and 3.5mm audio providing an efficient USB 3.1 5Gbps docking solution.
WIDE DEVICE COMPATIBILITY
Compatible with Thunderbolt 3, this USB-C dock works with HP, Lenovo, Dell, MacBook, Surface & Chromebooks & is DisplayLink Certified ensuring monitor compatibility.
EASY DEPLOYMENT
This USB-C dock supports all major operating systems (Windows, macOS, ChromeOS, Ubuntu) and includes MAC address changer & DisplayLink update utilities for hassle-free IT management.
EASY WORKSPACE INTEGRATION
This universal USB 3.0 Type-C dock is designed to fit into any work environment including shared workspaces or hoteling. It features mounting holes, K-Slot & 1m USB-C cable.
POWER & CHARGE YOUR LAPTOP
This USB Type-C port replicator powers and charges while you work with 60W PD for ultrathin laptops like Thinkpad T Series, X1 Carbon, Surface Pro7, & USB-C Chromebooks.
This USB-C docking station is ideal for use in large organizations to meet widespread office productivity requirements and compatibility with all USB-C and Thunderbolt 3 laptops. The USB-C dock features support for Dual HDMI monitors, 60W Power Delivery 3.0, fast-charge, and both USB-C and USB-A peripheral ports.
Dual Full HD 1080p HDMI Displays
The USB-C docking station adds dual HDMI monitors support to your workstation, with full high definitions resolutions of 1920x1080 or 1920x1200 at 60Hz. With more screen space, you can access multiple applications and reference material on one display while composing on the other.
Charge Devices via USB-C & USB-A
The USB-A and USB-C charge ports can charge your smartphone, tablet or other USB peripherals whether you're working or away from your desk, and even if you disconnect your laptop.
60W Power Delivery
Using a single cable, the dock powers and charges your laptop as you work with 60W PD for faster charging, using the 90W power adapter.
Convenient Setup with a Modest Desktop Footprint
With a smaller size and extended length 3.3' (1 meter) host cable, this USB-C dock fits easily into a workspace environment. Even where desk space is limited, this dock can be mounted to the wall, monitor or underneath the desk with StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA). These mounting brackets are specifically designed for our docks and hubs to give you the customized setup you need.
The Connections You Need
Connect your devices with four USB 3.1 ports: 1x USB[CC2] -C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (Wake-on-LAN) and a 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.
Hardware
4K Support
No
Audio
Yes
Bus Type
USB 3.1 Gen 1
Chipset ID
DisplayLink DL3900
Realtek RTS5423
Realtek RTS5411E
Displays Supported
2
Interface
USB 3.1 Gen 1
K-Lock Slot
Kensington Standard Slot (K-Slot)
Ports
4
USB-C Device Port(s)
USB Power Delivery
USB-C Host Connection
Yes
Performance
Audio Specifications
Dual-Channel 3.5mm Stereo Audio Output
Single-Channel 3.5mm Microphone Input
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
No
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
1 Gbps (Ethernet)
Maximum Digital Resolutions
Dual HDMI Displays: 1080p (1920x1080, 1920x1200 @ 60Hz)
Supported Charging Modes
Charging Downstream Port (CDP)
Type
Copper
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
Connector(s)
Connector Type(s)
1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
1 - USB 3.0 A (Fast-Charge, 9 pin) Female
2 - USB Type-A (9 pin) USB 3.0 Female
2 - HDMI 1.4 Female Output
1 - RJ-45 Female
1 - 3.5 mm Mini-Jack (4 Position) Female Female
1 - USB Type-C (Fast-Charge, 24 pin) USB 3.0 Female
Software
OS Compatibility
Windows® 7, 8, 8.1, 10
macOS 10.11 - 10.12, 10.14
Chrome OS™ v55+
Power
Center Tip Polarity
Positive
Input Current
1.5A
Input Voltage
100 - 240 AC
Output Current
4.5A
Output Voltage
20V DC
Plug Type
N
Power Delivery
60W
Power Source
AC Adapter Included
Environmental
Humidity
0% to 95% (non-condensing) at 25°C
Operating Temperature
0 to 50°C
Storage Temperature
-20 to 70°C
- 4K Support
- No
- Audio
- Yes
- Bus Type
- USB 3.1 Gen 1
- Chipset ID
- DisplayLink DL3900
- Realtek RTS5423
- Realtek RTS5411E
- Displays Supported
- 2
- Interface
- USB 3.1 Gen 1
- K-Lock Slot
- Kensington Standard Slot (K-Slot)
- Ports
- 4
- USB-C Device Port(s)
- USB Power Delivery
- USB-C Host Connection
- Yes
- Audio Specifications
- Dual-Channel 3.5mm Stereo Audio Output
- Single-Channel 3.5mm Microphone Input
- Compatible Networks
- 10/100/1000 Mbps
- Full Duplex Support
- No
- Maximum Data Transfer Rate
- 5 Gbps (USB 3.0)
- 1 Gbps (Ethernet)
- Maximum Digital Resolutions
- Dual HDMI Displays: 1080p (1920x1080, 1920x1200 @ 60Hz)
- Supported Charging Modes
- Charging Downstream Port (CDP)
- Type
- Copper
- Type and Rate
- USB 3.0 - 5 Gbit/s
- UASP Support
- Yes
- Connector Type(s)
- 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
- 1 - USB 3.0 A (Fast-Charge, 9 pin) Female
- 2 - USB Type-A (9 pin) USB 3.0 Female
- 2 - HDMI 1.4 Female Output
- 1 - RJ-45 Female
- 1 - 3.5 mm Mini-Jack (4 Position) Female Female
- 1 - USB Type-C (Fast-Charge, 24 pin) USB 3.0 Female
- OS Compatibility
- Windows® 7, 8, 8.1, 10
- macOS 10.11 - 10.12, 10.14
- Chrome OS™ v55+
- Center Tip Polarity
- Positive
- Input Current
- 1.5A
- Input Voltage
- 100 - 240 AC
- Output Current
- 4.5A
- Output Voltage
- 20V DC
- Plug Type
- N
- Power Delivery
- 60W
- Power Source
- AC Adapter Included
- Humidity
- 0% to 95% (non-condensing) at 25°C
- Operating Temperature
- 0 to 50°C
- Storage Temperature
- -20 to 70°C
