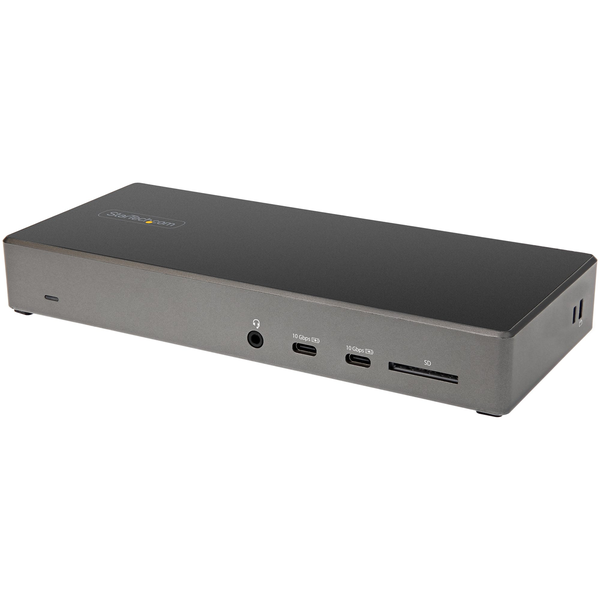

This USB-C Gen 2 10Gbps docking station?turns your USB-C ® or Thunderbolt™ 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C &; USB-A downstream peripheral ports to 100W Power Delivery. HDMI &; DisplayPort for Multiple Monitor Outputs This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements. Power &; Charge with 100W Power Delivery Power and charge USB-C/Thunderbolt 3 workstation laptops &; ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected. Integrated 6-Port USB Hub &; SD Card Reader This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD (4.0) card reader for media storage.2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Aways-On)2x USB-A 3.2 Gen 1 - 5 Gbps2x USB-A 2.0 - 480 MbpsSD 4.0 Card ReaderAlso included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic. Additional Security Features This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock. Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:Advanced Windows Layout Utility: To setup and save custom windows layouts.Mac Address Pass-Through Utility: To improve network security.USB Event Monitoring Utility: To track and log connected USB devicesWi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
- 2 - External Ports
- USB Type-C (Fast-Charge, 24 pin) USB 3.0
- USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps)
- USB Type-A (4 pin) USB 2.0
- DisplayPort
- Security Lock Slot
- 1 - External Ports
- HDMI
- SD / MMC Slot
- RJ-45
- 3.5 mm Stereo Audio
- 1 - Host Connectors
- USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps)
- Operating Temperature
- 0C to 50C
- Storage Temperature
- -20C to 70C
- Humidity
- 0% to 95% (non-condensing) at 25 degrees
- Displays Supported
- 3
- 4K Support
- Yes
- Fast-Charge Port(s)
- Yes
- Audio
- Yes
- Interface
- USB 3.2 Gen 2 - 10 Gbit/s
- Bus Type
- USB 3.2 Gen 2 10Gbps
- Industry Standards
- 1 Gigabit connectivity to any 1000Base-T device (IEEE802.3ab compliant)
- 100 Megabit connectivity to any 100Base-TX device (IEEE802.3u compliant)
- 10 Megabit connectivity to any 10Base-T device (IEEE802.3i compliant)
- Chipset ID
- Cypress - CYPD3125
- Cypress - CYPD4236
- Synaptics - VMM5320BJG-R
- Genesys - GL850
- Genesys - GL3523
- Genesys - GL3590
- Genesys - GL3227
- TI - TUSB1064RNQR
- Realtek - RTL8153B
- Realtek - ALC4042
- 1 - LED Indicators
- White On: Power
- Yellow On: Link Detected
- Yellow Flashing: Activity
- Green On: 1Gbps
- Yellow On: 100Mbps
- Package Height
- 3.7 in [94.0 mm]
- Package Length
- 10.6 in [27.0 cm]
- Shipping (Package) Weight
- 3.0 lb [1.4 kg]
- Package Width
- 5.9 in [15.0 cm]
- Maximum Digital Resolutions
- Triple Display:
- 4096 x 2160 30Hz (DisplayPort 1.4 HBR3 with DSC)
- 1920 x 1080 60Hz (DisplayPort 1.4 HBR3 without DSC)
- 1600 x 900 60Hz (DisplayPort 1.2 HBR2)
- Dual Display:
- 4096 x 2160 60Hz (DisplayPort 1.4 HBR3 with DSC)
- 2560 x 1440 60Hz (DisplayPort 1.4 HBR3 without DSC)
- 1920 x 1080 60Hz (DisplayPort 1.2 HBR2)
- Single Display:
- 4096 x 2160 60Hz (DisplayPort 1.4 HBR3 with DSC)
- 3840 x 2160 60Hz (DisplayPort 1.4 HBR3 without DSC)
- 3840 x 2160 30Hz (DisplayPort 1.2 HBR2)
- GPU CAPABILITIES: Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays (laptop screen may be disabled when connected to three monitors)
- Memory Media Type
- SD/MMC (Secure Digital/Multimedia Card)
- PXE
- Yes
- MTBF
- 215,990 hours
- Color
- Black & Space Gray
- Product Height
- 1.2 in [30.0 mm]
- Product Length
- 8.3 in [21.0 cm]
- Weight of Product
- 10.6 oz [300.0 g]
- Product Width
- 3.5 in [90.0 mm]
- Cable Length
- 39.4 in [100 cm]
- Power Source
- AC Adapter Included
- Power Delivery
- 100W
- Input Voltage
- 100 - 240 AC
- Plug Type
- M
- OS Compatibility
- Windows 10
- Windows 8.1
- Chrome OS 78.x
- System and Cable Requirements
- A Windows-based laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB-C Power Delivery and DP alt mode)
- Note
- Ensure your laptop's drivers, firmware, and operating system are up to date prior to using the docking station. For a multi-monitor configuration, the Windows laptop must support MST
- 1 - Included in Package
- USB-C Dock
- USB-C Cable (1 m)
- Quick-Start Guide
- 2 - Included in Package
- Power Cable NA/JP & ANZ
