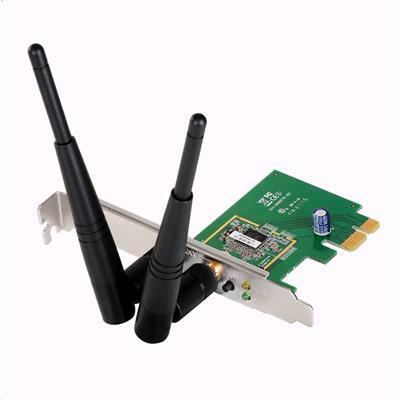

The Edimax EW-7612PIn V2 N300 Wireless PCI Express Adapter is an easy way to add Wi-Fi connectivity to your desktop computer. Built with the 802.11n standard, 2T2R MIMO technology, and two high-gain 3dBi detachable antennas, this wireless PCIe adapter allows for fast and stable wireless networking with data speeds of up to 300Mbps. It can be easily set up with the bundled EZmax multi-language setup wizard, and it comes with a low-profile bracket for installation on small computers.
- Complies with 802.11b/g/n wireless standards
- Wireless data rates up to 300Mbps
- Features EZmax multi-language setup wizard
- Wireless speed up to 12 times faster and coverage 5 times further
- Features a hardware WPS (Wi-Fi Protected Setup) button
- Includes a low-profile bracket for small computers
Wireless 802.11n Standard (Data Rates Up to 300Mbps)
The Edimax EW-7612PIn V2 allows for increased wireless coverage and higher data transmission rates. The latest wireless technology is built into this device to broaden its wireless coverage by 5 times and to reduce dead spots within the wireless range. The EW-7612PIn V2 complies with wireless IEEE 802.11b/g/n standards and can reach data transmission rates of up to 300Mbps when connected to wireless 802.11n devices. It also extends its wireless signal distance, and provides more reliable wireless connections than standard IEEE 802.11b/g wireless networks.
First-Class Reliability
The EW-7612PIn V2’s exceptional chipset offers increased bandwidth and more functionality than other PCI network adapters. This adapter is specifically designed to utilize the full bandwidth capacity of the PCI Express bus, thus eliminating collisions and latencies that exist with current 32-bit and 64-bit PCI bus architectures.
Wi-Fi Protected Setup (WPS) Button
The Edimax EW-7612PIn V2 features a convenient WPS button. Users can set up an encrypted wireless connection simply by pressing the WPS button on this adapter and a WPS-enabled wireless access point. This one-click WPS button helps users set up a secure wireless network in less than a minute.
High-Gain 3dBi Detachable Antennas for Improved Wireless Performance
The EW-7612PIn V2 comes with two high-gain 3dBi detachable antennas, which enable it to achieve better signal quality compared to common wireless adapters. The antennas’ detachable design also gives users the flexibility of using the antennas with extension cables for optimal antenna placement.
Interfaces
1 x PCI Express interface
1 x Link LED
1 x Tx/Rx LED
1 x Hardware WPS button
2 x RP-SMA connector
2 x High-gain 3dBi detachable antenna
Standards
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
Data Rates
- 11b: 1/2/5.5/11Mbps
- 11g:6/9/12/24/36/48/54Mbps
- 11n (20MHz): MCS0-15 (up to 144Mbps)
- 11n (40MHz): MCS0-15 (up to 300Mbps
Frequency Band
2.4000 to 2.4835GHz
(Industrial Scientific Medical Band)
Output Power
- 11n:12dBm±1.5dBm
- 11g: 12dBm±1.5dBm
- 11b: 16dBm±1.5dBm
Temperature
Operating: 32 - 103F (0-40C)
Storage: -4 - 149F (-20 - 65C)
Wireless Security
- 64/128-bit WEP, WPA, WPA2 & IEEE 802.1x
- Hardware & Software WPS configuration
Installation
- Multi-language EZmax Setup Wizard
Humidity
- Operating: 10 - 90% (non-condensing)
- Storage: max. 95% (non-condensing)
System Requirements
- Windows/XP/Vista/7/8
Dimensions
- 22 x 121 x 88 mm (without antenna)
Certifications
- CE, FCC
