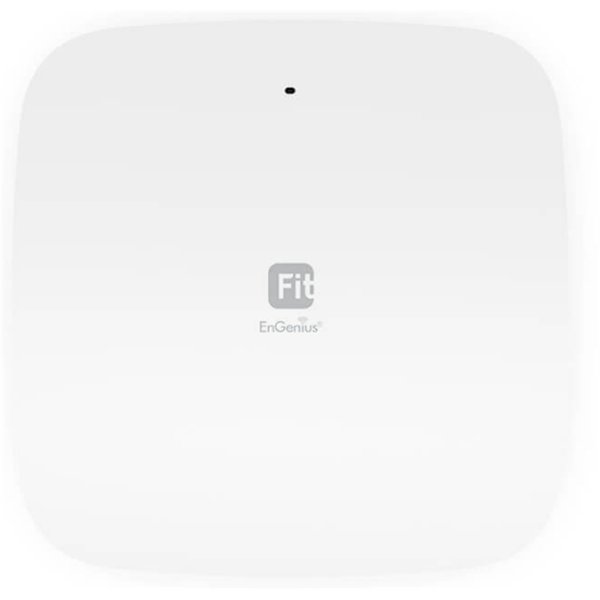

EnGenius EWS356-FIT EnGenius Fit 2x2 Indoor Wireless Wi-Fi 6 Access Point
- Brand
- EnGenius
- Manufacturer Part Number
- EWS356-FIT
- Standards
- 802.11a/b/g/n/ac/ax
- Antenna
- 2 x 2.4 GHz: 4 dBi
- 2 x 5 GHz: 5 dBi
- Physical Interface
- 1 x 10/100/1000 BASE-T
- DC12V
- Reset/Reboot button
- LED Indicators
- 1 x Multi-color LED
- Power Source
- PoE 802.3af
- DC12V
- Maximum Power Consumption
- 10.7W
- Operating Frequency
- Dual-Radio Concurrent 2.4 GHz & 5 GHz
- Operation Modes
- Managed mode: AP, AP Mesh, Mesh
- Frequency Radio
- 2.4 GHz: 2400 MHz ~ 2482 MHz
- 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
- Transmit Power
- Up to 21 dBm on 2.4 GHz
- Up to 21 dBm on 5 GHz
- (Maximum power is limited by regulatory domain)
- Radio Chains
- 2 × 2:2
- SU-MIMO Capability
- Two (2) spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with HE40 bandwidth to a 2×2 wireless client device under the 2.4GHz radio.
- Two (2) spatial stream Single User (SU) MIMO for up to 2,400 Mbps wireless data rate with HE160 to a 2×2 wireless device under the 5GHz radio.
- MU-MIMO Capability
- Two (2) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
- Two (2) spatial streams Multiple (MU)-MIMO up to 574 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
- Supported Data Rates (Mbps)
- 802.11ax:
- 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
- 5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 36, 48, 54
- 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
- 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
- Supported Radio Technologies
- 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
- 802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- Channelization
- 802.11ax supports high-efficiency throughput (HE) -HE 20/40/160 MHz
- 802.11ac supports very high throughput (VHT) -VHT 20/40/80 MHz
- 802.11n supports high throughput (HT) -HT 20/40 MHz 802.11n supports high throughput under the 2.4GHz radio -HT40 MHz (256-QAM)
- 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
- Supported Modulation
- 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
- 802.11b: BPSK, QPSK, CCK
- Max Concurrent User
- 128 per radio
- Deployment Options
- Stand-Alone (Individually Managed)
- FitXpress
- FitController
- Temperature Range
- Operating: 32°F~104°F (0°C~40°C)
- Storage: -40°F~176°F (-40°C~80°C)
- Humidity (non-condensing)
- Operating: 90% or less
- Storage: 90% or less
- Weight
- 380g
- Length
- 160 mm
- Width
- 160 mm
- Height
- 30 mm
