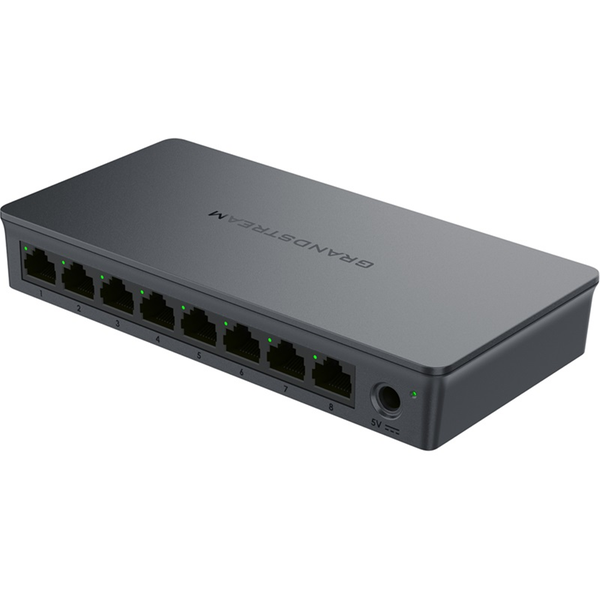

Grandstream GWN7711 8-Port Gigabit L2 Managed Switch - 1GbE x8
Grandstream GWN7711 Layer 2 Lite Managed Switch 8-port PoE
Hardware The GWN7711(P) series are Layer 2 Lite managed network switches designed to help small-to-medium businesses build scalable, secure, and smart business networks that are easy to deploy and manage through the cloud. These switches support VLAN for flexible and advanced traffic segmentation, QoS for network traffic prioritization, IGMP Snooping to optimize network performance, and robust security features to defend against potential attacks. The GWN7711P model specifically offers 4 PoE ports with smart dynamic PoE output to power devices like IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints. It also supports 24V DC passive PoE-out mode, offering even more flexibility for powering network devices. Both models are designed for easy management through a local web user interface or via Grandstream Device Management System (GDMS) for cloud-based control. With support for desktop and wall-mount installations, the GWN7711(P) series are a perfect fit for hotels, home offices, small-to-medium businesses, and more. Thanks to their comprehensive suite of switching features, flexible PoE options, and easy cloud management, the GWN7711(P) series deliver reliable performance for small-to-medium sized deployments. - 8 Gigabit Ethernet ports- Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models- Supports Loop Detection, Cable Test and Port Mirror to quickly locate network faults- Whisper Quiet: fan-less- Convenient and intelligent management through the Web UI and the cloud (GDMS)- Broadcast/Multicast/Unicast Storm Control to monitor traffic levels- Built-in QoS allows for prioritization of network traffic
- Brand
- Grandstream
- Manufacturer Part Number
- GWN7711
- Network Protocol
- IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
- Gigabit Ethernet Ports
- 8
- PoE Out Ports
- /
- Power Supply
- External 5VDC/0.6A
- PoE Output
- /
- Max Total PoE Output Power
- /
- Maximum Output Power per PoE Port
- /
- Auxiliary Ports
- 1x Reset Pinhole
- Forwarding Mode
- Store-and-forward
- Total non-blocking throughput
- 8Gbps
- Switching Capability
- 16Gbps
- Jumbo Frame
- 2K/3K/4K/5K/6K/7K/8//9K/12K/15K
- Forwarding Mode
- 11.9Mpps
- Packet Buffer
- 4Mb
- MAC
- 8K MAC address capacity
- Support MAC address search
- VLAN
- 4K VLANs
- Port-based VLAN, 802.1Q VLAN
- LAG
- 4
- Multicast
- IGMP Snooping, Report Message Suppression
- QoS
- Auto prioritization of the incoming port of the packet
- Priority Mapping
- Queue scheduling, including SP, WRR, WFQ
- Supports port priority, 802.1p priority and DSCP priority
- Bandwidth control
- Storm control
- Rate limit
- DHCP
- DHCP client
- Maintenance
- Backup and restore, system reboot, factory reset, firmware upgrade, monitoring including port statistics, port
- mirroring, cable test and loop prevention, ping and pong watchdog
- Security
- Storm control
- Port VLAN isolation
- Filtering MAC adress
- Kensington Security Slot (Kensington Lock) support
- Mounting
- Desktop/Wall-mount
- LED Indicators
- Per Port: Link/Activity - Green
- GWN7711P Port 1-4: PoE power state - Yellow
- Per Device: Power - Green
- Environmental
- Operating Temperature: 0 to 40 °C (32 to 104 °F)
- Storage Temperature: -20 to 60 °C (-4 to 140 °F)
- Operating Humidity: 10% to 90% Non-condensing
- Storage Humidity: 10% to 90% Non-condensing
- Compliance
- FCC, CE, RCM, IC
- Enclosure
- Plastic
- Dimensions (LxWxH)
- 164 x 80 x 30 mm
- Weight
- 0.17 kg
