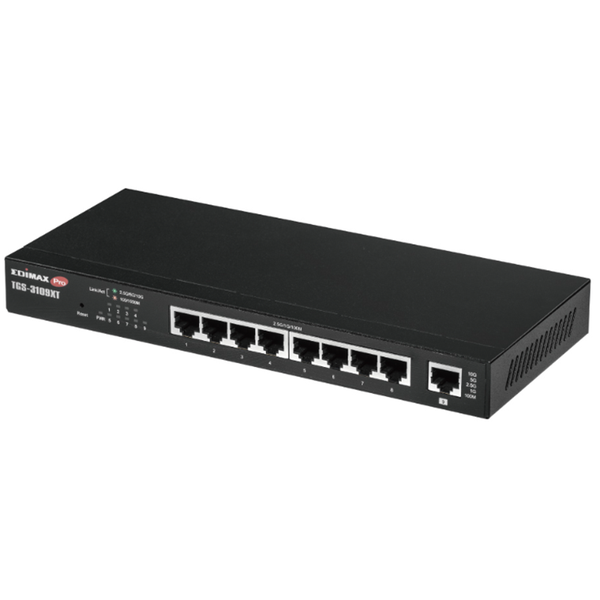

Edimax TGS-3109XT 8 Port 2.5GbE Web Smart Switch with 1x 10GbE Multi-Gigabit
The EDIMAX Pro TGS-3109XT is a web-smart switch with 8x2.5GbE and 1x10GbE ports. The 10GbE port is a Multi-Gigabit 5-Speed that provides either 100Mbps, 1Gbps, 2.5Gbps, 5Gbps or 10Gbps. The switch offers powerful and reliable network connectivity, providing sufficient bandwidth and fast speed demanding applications such as data transferring, backup, video conferencing, IP surveillance, and Wi-Fi 6/6E/7 APs.
With user-friendly smart web-based management utility features, showing outstanding performance and high efficiency that offers essential features such as QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention. The TGS3109XT is a compact yet useful switch, ideal for network connectivity in the home, small office, small-and-medium business and enterprise environments.
- 8 x 2.5GbE and 1 x 10GbE Multi-Gigabit 5-Speed (100M/1G/2.5G/5G/10G) RJ45 port
- No need to upgrade cabling infrastructure doubles network bandwidth up to 2.5GbE by leveraging existing CAT5E cabling infrastructure
- Web-based setup interface enables easy configuration and management
- Supports smart management features including QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention and more
- Supports 60Gbps backplane bandwidth, 44.64Mpps forwarding rate, 4K MAC address table and 12KB jumbo frame
- Fanless, quiet, compact and durable wall-mountable metal chassis design
HARDWARE
Ports
8 x RJ45 2.5Base-T 2.5 Gigabit Ports
1 x RJ45 10GBase-X 10 Gigabit Uplink Port
Buttons
Reset Button
LED Indicators
PWR: System Power Status
Link/Act: Connection and Transmission Status
Power Input
External Power Supply (DC12V/1A)
Mounting
Desktop / Wall-mount
Housing
Metal
Fan
Fanless
Dimensions
240 (W) x 105 (D) x 27 (H) mm
(9.45 (W) x 4.13 (D) x 1.06 (H) inches)
Weight
713g (1.58lb)
PERFORMANCE
Switching Capacity / Backplane
60Gbps
Forwarding Rates
Max. 44.64Mpps (64-byte Package Size)
MAC Address Table
4K
Jumbo Frames
12KB
Packet Buffer
8.1Mb
SMART FEATURES
Quality of Service (QoS)
Port-based QoS
IEEE802.1p QoS
4 Priority Queues
Scheduling Algorithms
VLAN
Up to 10 VLANs
802.1Q Tag-based VLAN
Port Trunking
IEEE 802.3ad LACP Trunk-Static Trunk
IGMP Snooping
IGMP v1/v2/v3 Snooping
Block unknown multicast traffic
Multicast Groups: 128
Port Mirroring
Port Mirroring Traffic Direction:
Both (Ingress and Egress)
Ingress
Egress
Security
Broadcast Storm Control
Management
User Interface: Web-based management
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB
Loop Detection/Prevention
OTHERS
Standard
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3bz 2.5GBase-T 2.5G Ethernet
IEEE 802.3an 10GBase-T 10 Gigabit Ethernet
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1Q Virtual LANs VLANs
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3az Energy Efficient Ethernet
Environmental Condition
Tempertatue:
Operating: 0 ~ 40? (32~104°F)
Storage: -40 ~ 70? (-40~158°F)
Humidity:
Operating: 10 ~ 90% (Non-condensing)
Storage: 10 ~ 90% (Non-condensing)
Certifications
FCC, CE
