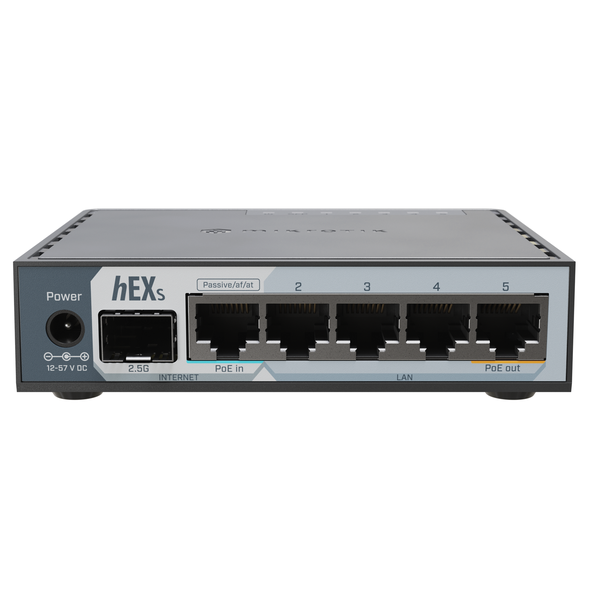

MikroTik E60iUGS hEX S 5 Port Gigabit Ethernet Router with a 2.5 Gbps SFP Port - E60iUGS
MikroTik hEX S 5 Port Gigabit Ethernet Router with a 2.5 Gbps SFP Port.
The new hEX S is a compact, truly budget-friendly device that does a little bit of everything - and does it fast. Whether you're building a smart home, running a local lab, or just want a clean, powerful wired setup, this is your new Ethernet essential.
With 5× Gigabit Ethernet ports (including PoE-in on port #1 and PoE-out on port #5), plus a 2.5 Gigabit SFP cage, this compact router can adapt to many roles. And unlike most ISP boxes, you can assign any port as WAN, LAN, or bridge - full flexibility right out of the box. That's just the beginning. RouterOS v7 gives you advanced routing, VLANs, bonding, traffic shaping, and more so you can build the wired network you've always wanted.
- 2.5 Gbps SFP Uplink
- 5 Gigabit Ethernet plus Bonding support
- PoE In and Out support
- USB 3 for storage and file sharing
- Flexible powering from 12V to 57VDC
General
MPN
E60iUGS
Architecture
ARM
CPU
EN7562CT
CPU core count
2
CPU nominal frequency
950 MHz
Switch chip model
EN7562CT
RouterOS license
4
Operating System
RouterOS v7
Size of RAM
512 MB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 100'000 hours at 25C
Tested ambient temperature
-40°C to 70°C
IPsec hardware acceleration
Yes
Powering
Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
12-57 V
Max power consumption
23 W
Max power consumption without attachments
5 W
PoE in
802.3af/at
Cooling type
Passive
PoE in input Voltage
18-57 V
PoE-out
PoE-out ports
Ether5
PoE out
Passive PoE up to 57V
Max out per port output (input 18-30 V)
0.5 A
Max out per port output (input 30-57 V)
0.5 A
Ethernet10/100/1000 Ethernet ports5
1
FiberSFP ports
1 (2.5G supported)
Peripherals
Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB 3.0 type A
Max USB current (A)
1
Other
CPU temperature monitor
Yes
PCB temperature monitor
Yes
Voltage Monitor
Yes
Mode button
Yes
Certification & ApprovalsCertification
CE, EAC, ROHS
IP
20
