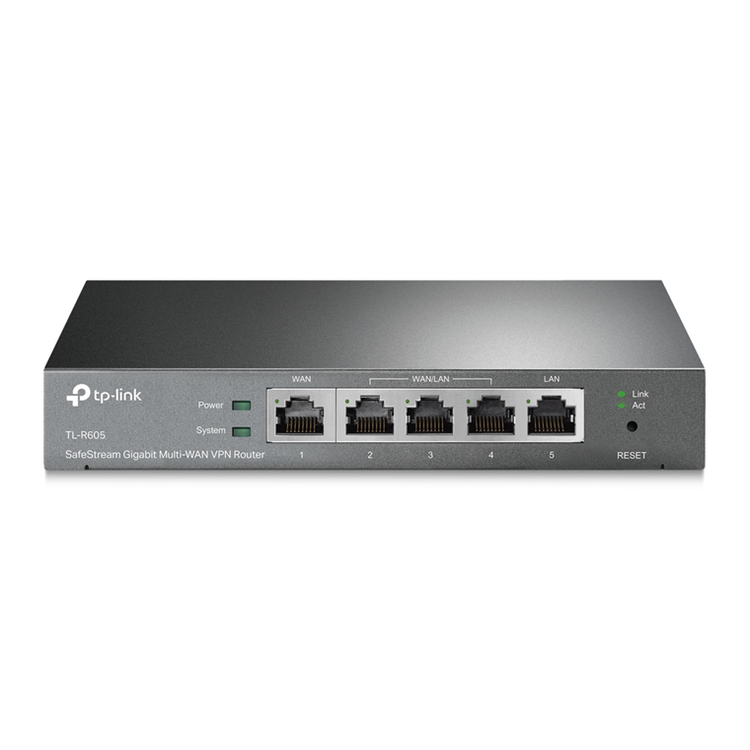

TL-R605 SafeStream Gigabit Multi-WAN VPN Router - Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.- Centralised Management: Cloud access and Omada app for ultra convenience and easy management.- Five Gigabit Ports: High-speed wired connectivity.- Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.- Highly Secure VPN: Supports up to 20x LAN-to-LAN IPsec, 16x OpenVPN*, 16x L2TP, and 16x PPTP VPN connections.- Abundant Security Features: Advanced firewall policies, DoS defence,IP/MAC/URL filtering, and more security functions protect your network and data. Omada SDN-The Smarter Cloud Solution for Business Networking As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, TL-R605 allows for remote and centralised management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience. Up to Three WAN Gigabit Ports &; One USB WAN for Mobile Broadband Two freely interchangeable ports allow the router to support up to three WAN ports for various Internet access requirements. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.Mobile broadband via 4G/3G modem by connecting to the USB port is also supported for WAN backup. Highly Secure VPN TL-R605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 20x LAN-to-LAN IPsec, 16x OpenVPN*, 16x L2TP, and 16x PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications travelling over the internet.
Internet Access Management Strategy Standardize users' online behaviour and easily specify the internet access rights and strategies of the employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Easy Management with the Omada App Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
Hospitality TP-Link Omada SDN allows hotels to build the reliable, cost-effective wireless networks that drive progress and keep guests happy and coming back for another stay. - Full WiFi coverage and wired connections- Flexible guest control- Seamless roaming
Education Due to its reliable, scalable, and secure network solution, TP-Link has been widely acknowledged by global customers in the Education market ranging from infant schools with a few APs up to colleges and universities with hundreds of APs. - Easy management- High-density WiFi- Full WiFi coverage and wired connections
Branch Location TP-Link Omada offers enterprise-level VPN, real-time network monitoring, and quick network troubleshooting to meet the requirements of headquarters and branches. - VPN- Easy management- Network monitoring and troubleshooting
- Standards and Protocols
- IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
- TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
- Interface
- 1 Fixed Gigabit WAN Port
- 2 Fixed Gigabit LAN Ports
- 2 Changeable Gigabit WAN/LAN Ports
- 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup‡)
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100O STP (Max 100m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100O STP (Max 100m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
- Button
- Reset Button
- Power Supply
- External 9V/0.85A DC Adapter
- Flash
- PI 16MB
- DRAM
- 128 MB
- LED
- PWR, SYS, WAN, LAN
- Dimensions ( W x D x H )
- 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
- Concurrent Session
- 25,000
- IPsec VPN Throughput
- 41.5 Mbps
- WAN Connection Type
- Static/Dynamic IP
- PPPoE
- PPTP
- L2TP
- DHCP
- DHCP Server/Client
- DHCP Address Reservation
- Multi-net DHCP*
- Multi-IP Interfaces*
- *Multi-IP Interfaces and Multi-Net DHCP are supported only in Controller Mode
- MAC Clone
- Modify WAN/LAN MAC Address*
- *LAN MAC Address can be modified only in Standalone Mode.
- IPTV
- IGMP v2/v3 Proxy
- IPv6
- Developing*
- *IPv6 is being developed and will be updated in the following software versions
- VLAN
- 802.1Q VLAN
- ACL
- IP/Port/Protocol/Domain Name Filtering
- Advanced Routing
- Static Routing
- Policy Routing
- Bandwidth Control
- IP/Port-based Bandwidth Control
- Guarantee & Limited Bandwidth
- Load Balance
- Intelligent Load Balance
- Application Optimized Routing
- Link Backup (Timing*, Failover)
- Online Detection
- *The function is supported only in Standalone Mode.
- NAT
- One-to-One NAT*
- Multi-Net NAT
- Virtual Server
- Port Triggering*
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
- *These function are supported only in Standalone Mode.
- Security
- SPI Firewall
- VPN Passthrough
- FTP/H.323/PPTP/SIP/IPsec ALG
- DoS Defence, Ping of Death
- Local Management
- Session Limit
- IP-based Session Limit
- IPsec VPN
- 20 IPsec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- IKEv1/v2*
- MD5, SHA1 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
- *These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller
- PPTP VPN
- PPTP VPN Server
- 10 PPTP VPN Clients
- 16 Tunnels
- PPTP with MPPE Encryption
- L2TP VPN
- L2TP VPN Server
- 10 L2TP VPN Clients
- 16 Tunnels
- L2TP over IPSec
- OpenVPN
- OpenVPN Server*
- 10 OpenVPN Clients*
- 16 OpenVPN Tunnels*
- *OpenVPN requires the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller
- Attack Defense
- TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
- Filtering
- WEB Group Filtering*
- URL Filtering
- Web Security*
- *These functions are supported only in Standalone Mode.
- ARP Inspection
- Sending GARP Packets*
- ARP Scanning*
- IP-MAC Binding*
- *These functions are supported only in Standalone Mode.
- Access Control
- Source/Destination IP Based Access Control
- Web Authentication
- No Authentication
- Simple Password*
- Hotspot(Local User / Voucher* / SMS* / Radius*)
- External Radius Sever
- External Portal Sever*
- Facebook*
- *These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller
- Omada App
- Yes
- Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Service
- Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
- Cloud Access
- Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Maintenance
- Time Setting
- Diagnostic
- Firmware Upgrade
- Factory Defaults/Reboot
- Backup&Restore
- System Log
- Remote Management
- Statistics
- Controller Settings
- SNMP
- Management Features
- Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
- ZTP (Zero-Touch Provisioning)*
- *Zero-Touch Provisioning is supported only when using Omada Cloud-Based Controller.
- Certification
- CE, FCC, RoHS
- Package Contents
- TL-R605
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
- System Requirements
- Microsoft® Windows® 10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
- Environment
- Operating Temperature: 0-40C (32-104F);
- Storage Temperature: -40-70C (-40-158F)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
