- Network Type
- 4G
- FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
- TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
- 3G
- DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
- Speed
- Download Speed 150 Mbps
- Upload Speed 50 Mbps
- SIM Type
- 1× Nano SIM Card
- Interface
- 1× 100 Mbps WAN/LAN Port (PoE In)
- 1× Nano SIM Card Slot
- 1 × DC Port
- Buttons
- 1× Reset Button
- Power
- 12V/1A DC
- 24V/0.5A Passive PoE
- 44-57V/0.35A 802.3af
- Dimensions (W x D x H)
- 8.9 x 3.9 x 2.2 in (226.6 x 100 x 54.7mm)
- Antennas
- 2 × Detachable LTE Antennas
- Wireless Standards
- IEEE 802.11b/g/n
- Frequency
- 2.4 GHz
- Signal Rate
- 300 Mbps
- Reception Sensitivity
- 11g 54M: -74 dBm
- 11n HT20: -73 dBm
- 11n HT40: -70 dBm
- Wireless Functions
- Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
- Wireless Security
- WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
- Security
- DoS, IPv4 SPI Firewall, IP and MAC Address Binding
- Operating Modes
- 3G/4G Router, Wireless Router
- WAN Type
- Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
- Management Features
- Local Management, Remote Management
- DHCP
- Server, DHCP Client List, Address Reservation
- Port Forwarding
- ALG, Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS
- TP-Link, DynDns, NO-IP
- Protocols
- IPv4, IPv6″
- Guest Network
- 2.4 GHz guest network
- Administration
- Upgrade Firmware, Factory Default, System Log, Diagnostic Tools
- Network Services Enabled by Default
- Web Server
- Manage and configure device through web (HTTP/HTTPS)
- Port: 80/443″
- Protocol: TCP
- DHCP Server
- IP address assignment (DHCP)
- Port: 67″
- Protocol: UDP
- DNS
- Port: 53″
- Protocol: TCP
- App management
- Manage and configure device through app
- Port: 22″
- Protocol: TCP
- Port: 20002″
- Protocol: TCP
- CWMP
- CPE WAN Management Protocol
- Port: 7547″
- Protocol: TCP
- Package Content

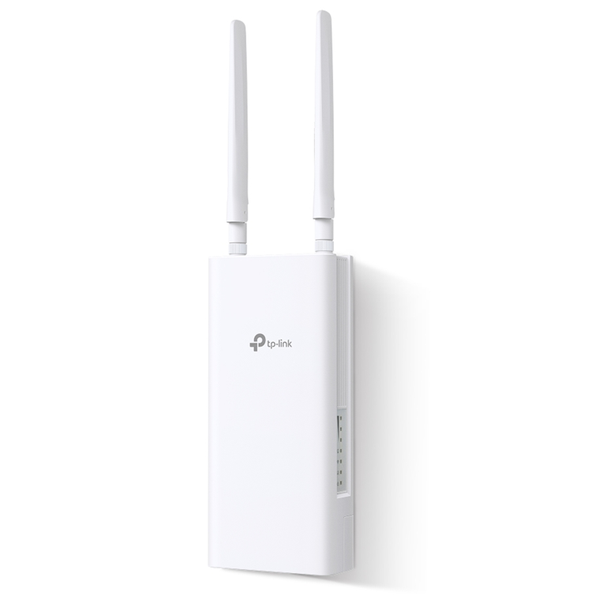

- 1× TL-MR100-Outdoor Unit
- 1× 10-meter RJ45 Ethernet Cable
- 1× PoE Adapter
- 1× AC Power Cord
- 1× Quick Installation Guide
- Window/Pole/Wall Mounting Kits
- Requirements
- Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser
- *You are recommended to use the latest version
- Certifications
- CE, RoHS
- Environment
- Operating Temperature: -30°C~60°C (-22°F~140°F)
- Storage Temperature: -40°C~70°C (-40 °F~158 °F)
- Operating Humidity: 10%~90% RH
- Storage Humidity: 5%~90% RH
