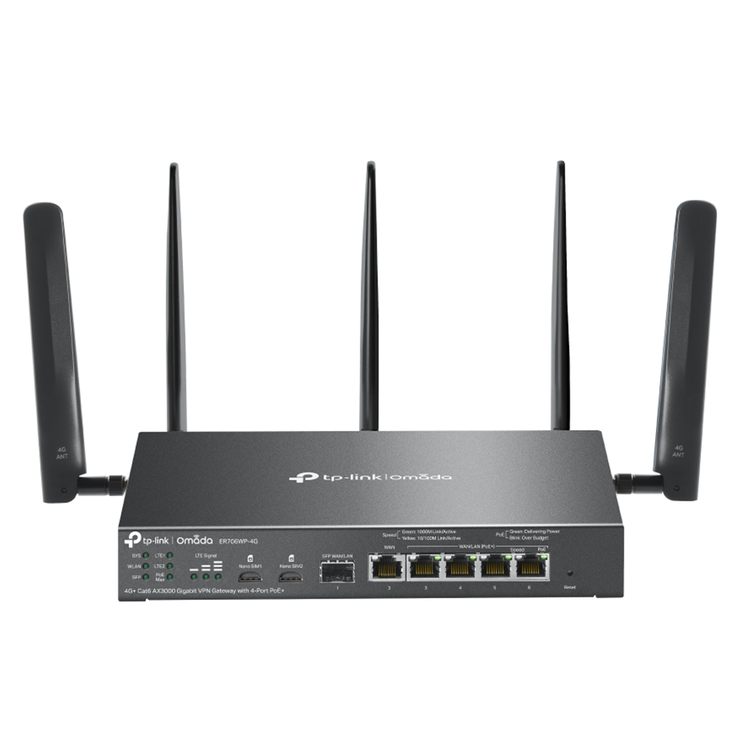

TP-Link Omada ER706WP-4G 4G CAT6 / WiFi 6 AX3000 Gigabit Multi-WAN PoE Gateway (45W)
Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway with 4-Port PoE+ - Support 4G+ Cat6*: Insert a Nano SIM card to enjoy up to 300 Mbps (Not compatible with AT&;T's Text &; Data plans** in the US).- AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz***- 5 Gigabit Ethernet Ports: Provide high-speed wired connectivity.- 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.- Centralized Management: Cloud access and the Omada app for easy management.- Omada Mesh: Seamlessly connects to EAPs that support mesh technology.*- High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.
- Network Type
- LTE Band of EU:
- - 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/
- 900/800/700/1450 MHz)
- - 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
- - 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
- (2100/1800/850/900 MHz)
- Carrier Aggregation of EU:
- B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
- B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
- B5+B5/B7/B38/B40/B41
- B7+B7/B8/B20/B28/B32
- B8+B32/B38/B40/B41
- B20+B32/B38/B40
- B28+B32/B38/B40/B41
- B38+B38
- B40+B40
- B41+B41
- SIM Type
- 2× Nano SIM Card( (4G+ Cat6)
- Frequency
- - Downlink: 300 Mbps;
- - Uplink: 50 Mbps
- DPI
- Application control via DPI / Updated app library
- IDS/IPS
- Signature-based IPS/IDS threat detection
- Access Control
- Source/Destination IP Based Access Control
- Filtering
- - Web Group Filtering†
- - URL Filtering
- - Web Security†
- ARP Inspection
- - Sending GARP Packets
- - ARP Scanning†
- - IP-MAC Binding
- Attack Defense
- - TCP/UDP/ICMP Flood Defense
- - Block TCP Scan (Stealth FIN/Xmas/Null)
- - Block Ping from WAN
- Interface
- - 1 Gigabit SFP WAN/LAN Port
- - 1 Gigabit WAN Port
- - 4 Gigabit LAN/WAN Ports
- Network Media
- - 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
- - 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
- - 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
- Button
- Reset Button
- Power Supply
- 4 Ports PoE+ Output, 45 W PoE Budget
- Wi-Fi Frequency & Signal Rate
- - 2.4 GHz: 574 Mbps
- - 5 GHz: 2402 Mbps (HE160)
- Flash
- 256 MB NAND
- DRAM
- 512 MB DDR4
- LED
- SYS, WLAN, SFP, LTE1, LTE2, PoE Max, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act, PoE)
- Dimensions ( W x D x H )
- 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)
- Antenna
- - Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
- - LTE: Two 4.0dBi omnidirectional detachable antennas
- Mounting
- Desktop/Wall-Mounting/Rackmount
- Max. Power Consumption
- 64.9W with PoE Max; 19.8W without PoE
- IPS Throughput
- - TCP: 229 Mbps
- - UDP: 188 Mbps
- DPI Throughput
- - TCP: 933 Mbps
- - UDP: 927 Mbps
- GRE
- - Unencrypted: 545.3Mbps
- - Encrypted: 282.6Mbps
- WireGuard VPN
- 387.7Mbps
- Concurrent Session
- 150,000
- New Sessions /Second
- 5,100
- NAT (Static IP)
- 947.1Mbps / 940.1Mbps
- NAT(DHCP)
- 949.2Mbps / 941.1Mbps
- NAT(PPPoE)
- 942.6Mbps / 941.1Mbps
- NAT (L2TP)
- 875.4Mbps / 892.0Mbps
- NAT (PPTP)
- 881.2Mbps / 895.8Mbps
- IPsec VPN Throughput
- - ESP-SHA1-AES256: 652.2Mbps
- - ESP-SHA256-AES256: 654.4Mbps
- - ESP-SHA384-AES256: 646.5Mbps
- - ESP-SHA512-AES256: 670.5 Mbps
- OpenVPN
- 115.5Mbps
- L2TP VPN Throughput
- - Unencrypted: 990.0Mbps
- - Encrypted: 475.0Mbps
- PPTP VPN Throughput
- - Unencrypted: 1177.9Mbps
- - Encrypted: 177.4Mbps
- SSL VPN Throughput
- 122.5Mbps
- 66 Byte Packet Forwarding Rate
- 1,453,489 pps / 1,453,488 pps
- 1,518 Byte Packet forwarding rate
- 81274 pps / 91275 pps
- Advanced Features
- - Seamless Roaming
- - Mesh (with EAP that supports Mesh)
- - OFDMA
- - Beamforming
- - MU-MIMO
- - Rate Limit: Based on SSID/Client
- - Airtime Fairness
- - Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
- - Multiple SSIDs: 16 in total (8 per radio)
- Guest Network
- Support
- WAN Connection Type
- - Static IP
- - Dynamic IP
- - PPPoE (supports MRU Configuration)
- - PPTP
- - L2TP
- MAC Clone
- Modify WAN Address
- DHCP
- - DHCP Server
- - DHCPv6 PD Server (only in Standalone Mode)
- - DHCP Options Customization
- - DHCP Address Reservation
- - Multi-IP Interfaces
- - Multi-Net DHCP
- SMS
- Receive / Send SMS
- IPv6
- StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
- VLAN
- 802.1Q VLAN
- IPTV
- IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
- Access Control
- IP/Port/Protocol/Domain Name Filtering
- Advanced Routing
- - Static Routing
- - Policy Routing
- - RIP†
- - OSPF†
- Bandwidth Control
- IP-Based Bandwidth Control
- Load Balance
- - Intelligent Load Balance
- - Application Optimized Routing
- - Link Backup(Timing, Failover)
- - Online Detection
- NAT
- - One-to-One NAT
- - Multi-Net NAT
- - Virtual Server
- - Port Triggering†
- - NAT-DMZ
- - FTP/H.323/SIP/IPSec/PPTP ALG
- - UPnP
- Session Limit
- IP-Based Session Limit
- GRE
- Only in Standalone Mode
- SSL VPN
- 50 Tunnels
- IPsec VPN
- - 100 IPSec VPN Tunnels
- - LAN-to-LAN, Client-to-LAN
- - Main, Aggressive Negotiation Mode
- - DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- - IPsec Failover
- - IKE v1/v2
- - MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
- - NAT Traversal (NAT-T)
- - Dead Peer Detection (DPD)
- - Perfect Forward Secrecy (PFS)
- PPTP VPN
- - PPTP VPN Server
- - PPTP VPN Client (10)
- - 50 Tunnels
- - PPTP with MPPE Encryption
- L2TP VPN
- - L2TP VPN Server
- - L2TP VPN Client (10)
- - 50 Tunnels
- - L2TP over IPSec
- OpenVPN
- - OpenVPN Server
- - OpenVPN Client (5)
- - 55 OpenVPN Tunnels
- - "Certificate + Account" Mode
- - Full Mode
- WireGuard VPN
- - 20 Tunnels
- Web Authentication
- - No Authentication
- - Simple Password§
- - Hotspot (Local User / Voucher§ / SMS§ / Radius§)
- - External Radius Sever
- - External Portal Sever§
- - LDAP
- Omada App
- Yes.
- Centralized Management
- - Omada Cloud-Based Controller
- - Omada Hardware Controller (OC300)
- - Omada Hardware Controller (OC200)
- - Omada Software Controller
- Cloud Access
- Yes.
- Service Dynamic
- DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
- Maintenance
- - Web Management Interface
- - Remote Management
- - Export & Import Configuration
- - SNMP v1/v2c/v3
- - Diagnostics (Ping & Traceroute)†
- - NTP Synchronize†
- - Port Mirroring
- - CLI (only in Standalone Mode)
- - Syslog Support
- Zero-Touch Provisioning
- Yes. Require the use of Omada Cloud-Based Controller.
- Management Features
- - Automatic Device Discovery
- - Intelligent Network Monitoring
- - Abnormal Event Warnings
- - Unified Configuration
- - Reboot Schedule
- - Captive Portal Configuration
- Certification
- CE, FCC, RoHS
- Package Content
- - ER706WP-4G
- - Power Adapter
- - Quick Installation Guide
- System Requirements
- - Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
- - MAC OS, NetWare, UNIX or Linux
- Environment
- - Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- - Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- - Operating Humidity: 10% to 90% non-condensing
- - Storage Humidity: 5% to 90% non-condensing
