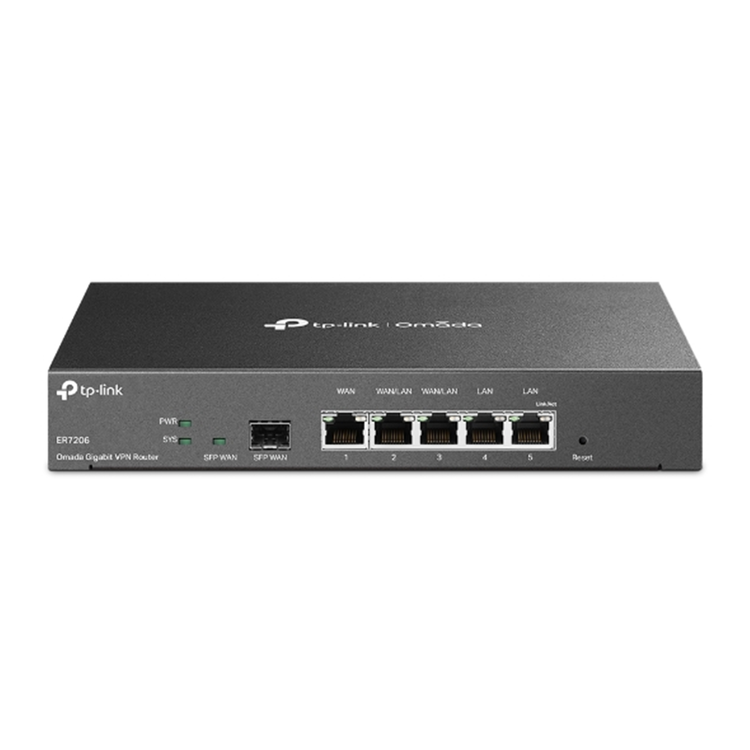

ER7206 Omada Gigabit VPN Router -
Integrated into Omada SDN Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring. Centralized Management Cloud access and Omada app for ultra convenience and easy management. Gigabit Ports 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity. Up to 4 WAN Ports 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage. Highly Secure VPN Supports up to 100x LAN-to-LAN IPsec, 50x OpenVPN*, 50x L2TP, and 50x PPTP VPN connections. Abundant Security Features Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
- Standards and Protocols
- IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
- TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
- Interface
- 1 Fixed Gigabit SFP WAN Port
- 1 Fixed Gigabit RJ45 WAN Port
- 2 Fixed Gigabit RJ45 LAN Ports
- 2 Changeable Gigabit RJ45 WAN/LAN Ports
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
- EIA/TIA-568 100O STP (Max 100m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100m)
- EIA/TIA-568 100O STP (Max 100m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
- Button
- Reset Button
- Power Supply
- 100-240 V~50/60 Hz
- Flash
- SPI 4MB + NAND 128MB
- DRAM
- 512MB
- LED
- PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
- Dimensions ( W x D x H )
- 8.9 × 5.2 × 1.4 in.(226 × 131 × 35 mm)
- Concurrent Session
- 150,000
- IPsec VPN Throughput
- 291.6 Mbps
- WAN Connection Type
- Static/Dynamic IP
- PPPoE
- PPTP
- L2TP
- MAC Clone
- Modify WAN/LAN MAC Address
- DHCP
- DHCP Server
- DHCP Address Reservation
- Multi-IP Interfaces*
- Multi-Net DHCP*
- VLAN
- 802.1Q VLAN
- IPTV
- IGMP v2/v3 Proxy
- ACL
- IP/Port/Protocol/Domain Name Filtering
- Advanced Routing
- Static Routing
- Policy Routing
- Bandwidth Control
- IP/Port-based Bandwidth Control
- Guarantee & Limited Bandwidth
- Load Balance
- Intelligent Load Balance
- Application Optimized Routing
- Link Backup (Timing, Failover)
- Online Detection
- NAT
- One-to-One NAT
- Multi-Net NAT
- Virtual Server
- Port Triggering
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
- Security
- SPI Firewall
- VPN Passthrough
- FTP/H.323/PPTP/SIP/IPsec ALG
- DoS Defence, Ping of Death
- Local Management
- Session Limit
- IP-based Session Limit
- Filtering
- WEB Group Filtering
- URL Filtering
- Web Security
- ARP Inspection
- Sending GARP Packets
- ARP Scanning
- IP-MAC Binding
- Attack Defense
- TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
- Access Control
- Source/Destination IP Based Access Control
- Omada App
- Yes
- Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access
- Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Service
- Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
- Maintenance
- Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute)
- NTP Synchronize
- Syslog Support
- Management Features
- Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
- ZTP (Zero-Touch Provisioning)
- Certification
- CE, FCC, RoHS
- Package Contents
- ER7206
- Power Cord
- Quick Installation Guide
- Operating Temperature
- 0-40 C (32-104 F)
- Storage Temperature
- -40-70 C (-40-158 F)
- Operating Humidity
- 10-90% RH non-condensing
- Storage Humidity
- 5-90% RH non-condensing
