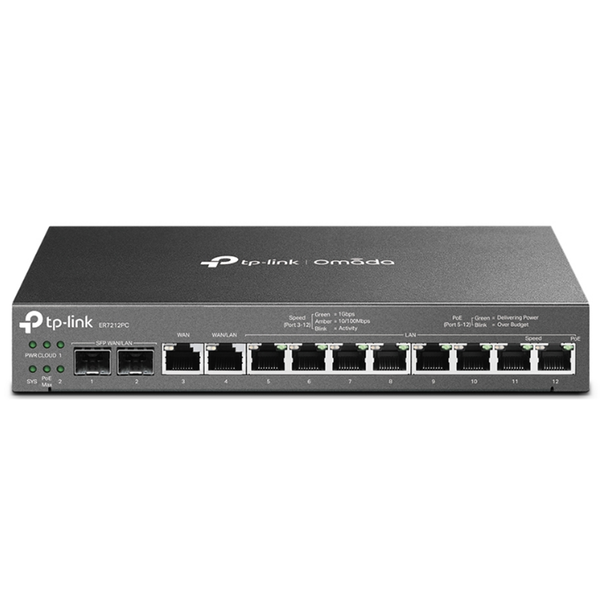

TP-Link Omada ER7212PC 3-In-1 Gigabit Multi-WAN PoE Cloud Gateway
3-in-1 Router, More Than A Router The 3-in-1 ER7212PC presents a one-stop solution for home and small business networking. With a single compact box, users can replace their router, hardware controller, and PoE+ switch setup. There is no need to manually configure various network devices one by one, you can perform unified deployment through ER7212PC. All you need is one device. Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage Equipped with multiple ports, ER7212PC satisfies various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Easy Installation, Quiet Heat Dissipation A clean, well-organized, and quiet network environment is at your fingertips. - The compact and minimalist design makes it suitable for your configuration in various spaces, whether it's the corner of office desks or the ceiling of a store. - Fanless design offers noiseless heat dissipation to your shops or offices. High-Security and High-Performance VPN ER7212PC supports pass-through traffic and multiple VPN protocols, including OpenVPN, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. Robust Security Features
- Standards and Protocols
- IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
- TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
- Interface
- 2 Gigabit SFP WAN/LAN ports
- 1 Gigabit WAN port
- 1 Gigabit LAN/WAN port
- 8 Gigabit LAN ports
- Network Media
- - 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
- EIA/TIA-568 100O STP (Max 100 m)
- - 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
- EIA/TIA-568 100O STP (Max 100 m)
- - 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
- Fan Quantity
- Fanless
- Button
- Reset Button
- Power Supply
- 53.5VDC/2.43A Adapter
- PoE Budget
- 8 ports PoE+ output, 110 W PoE Budget
- Flash
- 8Mb Nor + 4 GB EMMC
- DRAM
- 1 GB DDR3
- Dimensions ( W x D x H )
- 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
- Protection
- 4 kV surge protection
- Enclosure
- Steel
- Mounting
- Desktop/Wall-mount
- Concurrent Session
- 24,980
- New Sessions /Second
- 1,900
- NAT (Static IP)
- 935.5 Mbps / 942.1 Mbps
- NAT(DHCP)
- 940.2 Mbps / 941.7 Mbps
- NAT(PPPoE)
- 913.1 Mbps / 935.2 Mbps
- NAT (L2TP)
- 545.0 Mbps / 912.7 Mbps
- NAT (PPTP)
- 523.0 Mbps / 912.8 Mbps
- IPsec VPN Throughput (AES256)
- 168.5 Mbps
- OpenVPN
- 34 Mbps
- L2TP VPN Throughput
- - Unencrypted: 845.3 Mbps
- - Encrypted: 333.2 Mbps
- PPTP VPN Throughput
- - Unencrypted: 1012.6 Mbps
- - Encrypted: 401.4 Mbps
- 66 Byte Packet forwarding rate
- 154,069 pps / 156,977 pps
- 1,518 Byte Packet forwarding rate
- 81,193 pps / 81,193 pps
- WAN Connection Type
- - Static IP
- - Dynamic IP
- - PPPoE
- - PPTP
- - L2TP
- DHCP
- - DHCP Server
- - DHCP Address Reservation
- - Multi-IP Interfaces
- - Multi-Net DHCP
- IPv6
- support
- VLAN
- 802.1Q VLAN
- IPTV
- IGMP v2/v3 Proxy
- Advanced Routing
- - Static Routing
- - Policy Routing
- Bandwidth Control
- IP/Port-based Bandwidth Control
- Load Balance
- - Intelligent Load Balance
- - Application Optimized Routing
- - Link Backup
- - Online Detection
- NAT
- - Multi-Net NAT
- - Virtual Server
- - NAT-DMZ
- - FTP/H.323/SIP/IPSec/PPTP ALG
- - UPnP
- Session Limit
- IP-based Session Limit
- IPsec VPN
- - 20 IPSec VPN Tunnels
- - LAN-to-LAN, Client-to-LAN
- - Main, Aggressive Negotiation Mode
- - AES128, AES192, AES256 Encryption Algorithm
- - IKE v1/v2
- - SHA1, SHA2 Authentication Algorithm
- - NAT Traversal (NAT-T)
- - Dead Peer Detection (DPD)
- - Perfect Forward Secrecy (PFS)
- PPTP VPN
- - PPTP VPN Server
- - PPTP VPN Client (10)
- - 16 Tunnels
- - PPTP with MPPE Encryption
- L2TP VPN
- - L2TP VPN Server
- - L2TP VPN Client (10)
- - 16 Tunnels
- - L2TP over IPSec
- OpenVPN
- - OpenVPN Server
- - OpenVPN Client (10)§
- - 16 OpenVPN Tunnels
- Filtering
- URL Filtering
- Attack Defense
- - TCP/UDP/ICMP Flood Defense
- - Block TCP Scan (Stealth FIN/Xmas/Null)
- - Block Ping from WAN
- Access Control
- Source/Destination IP Based Access Control
- Web Authentication
- - No Authentication
- - Simple Password
- - Hotspot (Local User / Voucher / SMS / Radius)
- - External Radius Sever
- - External Portal Sever
- Omada App
- Yes
- Cloud Access
- Yes
- Service
- Dynamic DNS (Dyndns, No-IP)
- Maintenance
- - Web Management Interface
- - Remote Management
- - Export & Import Configuration
- - SNMP v1/v2c/v3
- - Syslog Support
- Management Features
- - Automatic Device Discovery
- - Intelligent Network Monitoring
- - Abnormal Event Warnings
- - Unified Configuration
- - Reboot Schedule
- - Captive Portal Configuration
- - Management up to 1 Router, 2 Switches and 10 EAPs
- Certification
- CE, FCC, RoHS
- Package Contents
- - ER7212PC
- - Power Adapter
- - Power Cord
- - Quick Installation Guide
- System Requirements
- - Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
- - MAC OS, NetWare, UNIX or Linux
- Environment
- - Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
- - Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- - Operating Humidity: 10% to 90% non-condensing
- - Storage Humidity: 5% to 90% non-condensing
