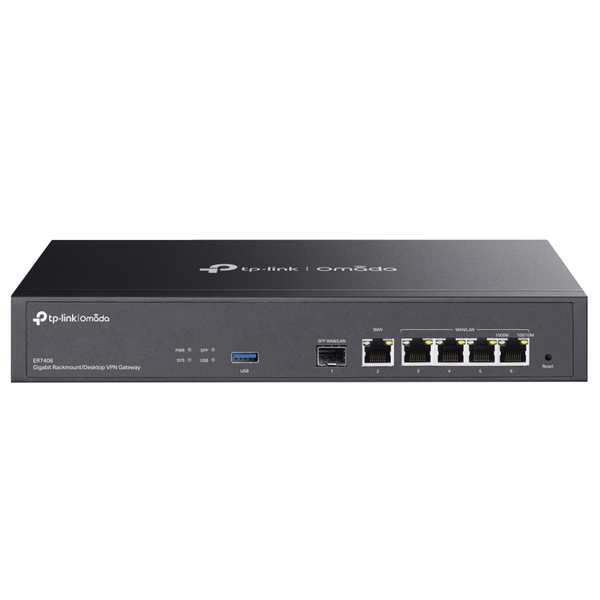

TP-Link Omada ER7406 Gigabit Multi-WAN VPN Gateway (Rackmountable)
Omada Gigabit Rackmount/Desktop VPN Gateway - 1× Gigabit SFP WAN/LAN port - 5× Gigabit RJ45 ports (1× WAN, 4× WAN/LAN) - 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle) - Load Balancing on up to 5 WAN ports raises the utilisation rate of multi-line broadband - High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN &; OpenVPN - Centralised cloud management via the web or the Omada app* - DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security. - Rackmount/Desktop Software Defined Networking (SDN) with Cloud Access Remotely manage your access points, switches, and gateways across multiple sites all from a single interface. High-Security and High-Performance VPN SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN &; OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home. DPI (Deep Packet Inspection) Easily specify internet access rights and strategies via DPI (Deep Packet Inspection), IP/MAC/URL Filtering and Access Control List (ACL). IDS/IPS The integrated IDS/IPS engine bolsters threat detection and defense. Additionally, there is an embedded, regularly updated signature database for attack prevention. DoS Defense Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
- Access Control
- Source/Destination IP Based Access Control
- Filtering
- - WEB Group Filtering§
- - URL Filtering
- - Web Security§
- ARP Inspection
- - Sending GARP Packets
- - ARP Scanning§
- - IP-MAC Binding
- Attack Defense
- - TCP/UDP/ICMP Flood Defense
- - Block TCP Scan (Stealth FIN/Xmas/Null)
- - Block Ping from WAN
- Standards and Protocols
- - IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
- - TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
- Interface
- - 1 Gigabit SFP WAN/LAN Port
- - 1 Gigabit WAN Port
- - 4 Gigabit LAN/WAN Ports
- - 1 USB 3.0 Port (supports USB LTE dongle and USB storage)
- Network Media
- - 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
- - 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
- - 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
- Fan Quantity
- Fanless
- Button
- Reset Button
- Power Supply
- 100-240VAC, 50/60Hz
- Flash
- 128 MB NAND
- DRAM
- 512 MB DDR4
- LED
- PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
- Dimensions ( W x D x H )
- 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
- Protection
- 4 kV surge protection
- Enclosure
- Steel
- Mounting
- - Desktop
- - Rackmountable
- Max Power Consumption
- - 7.5 W (with USB 3.0 connected)
- - 4.5 W (without USB 3.0 connected)
- IPS Throughput
- TCP: 229 Mbps;
- UDP: 188 Mbps
- DPI Throughput
- TCP: 933 Mbps;
- UDP: 927 Mbps
- GRE
- - Unencrypted: 611.9 Mbps
- - Encrypted: 325.0 Mbps
- WireGuard VPN
- 341.3 Mbps
- Concurrent Session
- 150,000
- New Sessions /Second
- 5,300
- NAT (Static IP)
- 945.3 Mbps / 940.5 Mbps
- NAT(DHCP)
- 939.6 Mbps / 940.9 Mbps
- NAT(PPPoE)
- 943.6 Mbps / 940.9 Mbps
- NAT (L2TP)
- 880.1 Mbps / 859.0 Mbps
- NAT (PPTP)
- 855.0 Mbps / 907.2 Mbps
- IPsec VPN Throughput
- - ESP-SHA1-AES256: 617.1 Mbps
- - ESP-SHA256-AES256: 592.8 Mbps
- - ESP-SHA384-AES256: 592.4 Mbps
- - ESP-SHA512-AES256: 604.5 Mbps
- OpenVPN
- 139.1 Mbps
- L2TP VPN Throughput
- - Unencrypted: 977.4 Mbps
- - Encrypted: 334.6 Mbps
- PPTP VPN Throughput
- - Unencrypted: 1064.1 Mbps
- - Encrypted: 206.8 Mbps
- SSL VPN Throughput
- 131.6 Mbps
- 66 Byte Packet forwarding rate
- 1,453,489 pps / 1,453,488 pps
- 1,518 Byte Packet forwarding rate
- 81,279 pps / 81,275 pps
- WAN Connection Type
- - Static IP
- - Dynamic IP
- - PPPoE(supports MRU Configuration)
- - PPTP
- - L2TP
- MAC Clone
- Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)
- DHCP
- - DHCP Server
- - DHCPv6 PD Server (only in Standalone Mode)
- - DHCP Options Customization
- - DHCP Address Reservation
- - Multi-IP Interfaces
- - Multi-Net DHCP
- IPv6
- StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
- VLAN
- 802.1Q VLAN
- IPTV
- IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
- Advanced Routing
- - Static Routing
- - Policy Routing
- - RIP (available in Standalone Mode)
- - OSPF (available in Standalone Mode)
- Bandwidth Control
- IP-based Bandwidth Control
- Load Balance
- - Intelligent Load Balance
- - Application Optimized Routing
- - Link Backup (Timing, Failover)
- - Online Detection
- NAT
- - One-to-One NAT
- - Multi-Net NAT
- - Port Forwarding
- - Port Triggering§
- - NAT-DMZ
- - FTP/H.323/SIP/IPSec/PPTP ALG
- - UPnP
- Session Limit
- IP-based Session Limit
- GRE
- v (Only in Standalone Mode)
- SSL VPN
- 50 Tunnels
- IPsec VPN
- - 100 IPSec VPN Tunnels
- - LAN-to-LAN, Client-to-LAN
- - Main, Aggressive Negotiation Mode
- - DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- - IPsec Failover
- - IKE v1/v2
- - MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
- - NAT Traversal (NAT-T)
- - Dead Peer Detection (DPD)
- - Perfect Forward Secrecy (PFS)
- PPTP VPN
- - PPTP VPN Server
- - PPTP VPN Client (10)**
- - 50 Tunnels
- - PPTP with MPPE Encryption
- L2TP VPN
- - L2TP VPN Server
- - L2TP VPN Client (10)**
- - 50 Tunnels
- - L2TP over IPSec
- OpenVPN
- - OpenVPN Server
- - OpenVPN Client (5)**
- - 55 OpenVPN Tunnels
- - "Certificate + Account" Mode
- - Full Mode
- Web Authentication
- - No Authentication
- - Simple Password*
- - Hotspot (Local User /Voucher*/ SMS/Radius*)
- - External Radius Server
- - External Portal Sever<*
- - LDAP§
- Omada App
- Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Centralized Management
- - Omada Cloud-Based Controller
- - Omada Hardware Controller
- - Omada Software Controller
- Cloud Access
- Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Service
- Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
- Maintenance
- - Web Management Interface
- - Remote Management
- - Export & Import Configuration
- - SNMP v1/v2c/v3
- - Diagnostics (Ping & Traceroute) (only in Standalone Mode)
- - NTP Synchronize (only in Standalone Mode)
- - Port Mirroring
- - CLI (only in Standalone Mode)
- - Syslog Support
- Zero-Touch Provisioning
- Yes. Requires the use of Omada Cloud-Based Controller.
- Management Features
- - Automatic Device Discovery*
- - Batch Configuration*
- - Batch Firmware Upgrading*
- - Intelligent Network Monitoring*
- - Abnormal Event Warnings*
- - Unified Configuration*
- - Reboot Schedule*
- Certification
- CE, FCC, RoHS
- Package Contents
- - ER7406
- - Power Cord
- - Quick Installation Guide
- - Rackmount Kit
- System Requirements
- - Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
- - MAC OS, NetWare, UNIX or Linux
- Environment
- - Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)
- - Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- - Operating Humidity: 10% to 90% non-condensing
- - Storage Humidity: 5% to 90% non-condensing
