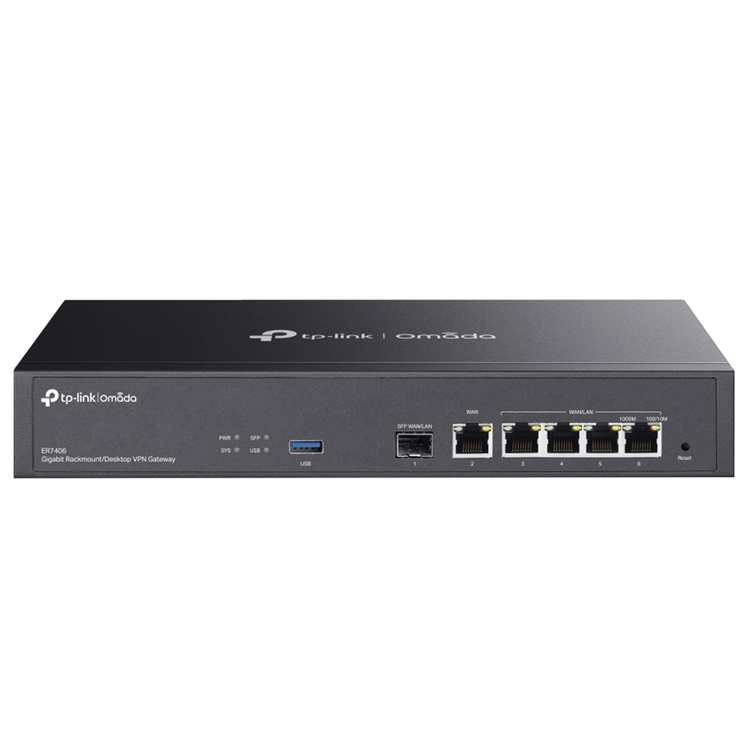

Omada Gigabit Rackmount/Desktop VPN Gateway
- 1× Gigabit SFP WAN/LAN port
- 5× Gigabit RJ45 ports (1× WAN, 4× WAN/LAN)
- 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
- Load Balancing on up to 5 WAN ports raises the utilisation rate of multi-line broadband
- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralised cloud management via the web or the Omada app*
- DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security.
- Rackmount/Desktop
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
DPI (Deep Packet Inspection)
Easily specify internet access rights and strategies via DPI (Deep Packet Inspection), IP/MAC/URL Filtering and Access Control List (ACL).
IDS/IPS
The integrated IDS/IPS engine bolsters threat detection and defense. Additionally, there is an embedded, regularly updated signature database for attack prevention.
DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
SECURITY
Access Control
Source/Destination IP Based Access Control
Filtering
- WEB Group Filtering§
- URL Filtering
- Web Security§
ARP Inspection
- Sending GARP Packets
- ARP Scanning§
- IP-MAC Binding
Attack Defense
- TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols
- IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
- TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface
- 1 Gigabit SFP WAN/LAN Port
- 1 Gigabit WAN Port
- 4 Gigabit LAN/WAN Ports
- 1 USB 3.0 Port (supports USB LTE dongle and USB storage)
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity
Fanless
Button
Reset Button
Power Supply
100-240VAC, 50/60Hz
Flash
128 MB NAND
DRAM
512 MB DDR4
LED
PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensions ( W x D x H )
11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
Protection
4 kV surge protection
Enclosure
Steel
Mounting
- Desktop
- Rackmountable
Max Power Consumption
- 7.5 W (with USB 3.0 connected)
- 4.5 W (without USB 3.0 connected)
PERFORMANCE
IPS Throughput
TCP: 229 Mbps;
UDP: 188 Mbps
DPI Throughput
TCP: 933 Mbps;
UDP: 927 Mbps
GRE
- Unencrypted: 611.9 Mbps
- Encrypted: 325.0 Mbps
WireGuard VPN
341.3 Mbps
Concurrent Session
150,000
New Sessions /Second
5,300
NAT (Static IP)
945.3 Mbps / 940.5 Mbps
NAT(DHCP)
939.6 Mbps / 940.9 Mbps
NAT(PPPoE)
943.6 Mbps / 940.9 Mbps
NAT (L2TP)
880.1 Mbps / 859.0 Mbps
NAT (PPTP)
855.0 Mbps / 907.2 Mbps
IPsec VPN Throughput
- ESP-SHA1-AES256: 617.1 Mbps
- ESP-SHA256-AES256: 592.8 Mbps
- ESP-SHA384-AES256: 592.4 Mbps
- ESP-SHA512-AES256: 604.5 Mbps
OpenVPN
139.1 Mbps
L2TP VPN Throughput
- Unencrypted: 977.4 Mbps
- Encrypted: 334.6 Mbps
PPTP VPN Throughput
- Unencrypted: 1064.1 Mbps
- Encrypted: 206.8 Mbps
SSL VPN Throughput
131.6 Mbps
66 Byte Packet forwarding rate
1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate
81,279 pps / 81,275 pps
BASIC FUNCTIONS
WAN Connection Type
- Static IP
- Dynamic IP
- PPPoE(supports MRU Configuration)
- PPTP
- L2TP
MAC Clone
Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)
DHCP
- DHCP Server
- DHCPv6 PD Server (only in Standalone Mode)
- DHCP Options Customization
- DHCP Address Reservation
- Multi-IP Interfaces
- Multi-Net DHCP
IPv6
StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
Advanced Routing
- Static Routing
- Policy Routing
- RIP (available in Standalone Mode)
- OSPF (available in Standalone Mode)
Bandwidth Control
IP-based Bandwidth Control
Load Balance
- Intelligent Load Balance
- Application Optimized Routing
- Link Backup (Timing, Failover)
- Online Detection
NAT
- One-to-One NAT
- Multi-Net NAT
- Port Forwarding
- Port Triggering§
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG
- UPnP
Session Limit
IP-based Session Limit
VPN
GRE
v (Only in Standalone Mode)
SSL VPN
50 Tunnels
IPsec VPN
- 100 IPSec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- IPsec Failover
- IKE v1/v2
- MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
PPTP VPN
- PPTP VPN Server
- PPTP VPN Client (10)**
- 50 Tunnels
- PPTP with MPPE Encryption
L2TP VPN
- L2TP VPN Server
- L2TP VPN Client (10)**
- 50 Tunnels
- L2TP over IPSec
OpenVPN
- OpenVPN Server
- OpenVPN Client (5)**
- 55 OpenVPN Tunnels
- "Certificate + Account" Mode
- Full Mode
AUTHENTICATION
Web Authentication
- No Authentication
- Simple Password*
- Hotspot (Local User /Voucher*/ SMS/Radius*)
- External Radius Server
- External Portal Sever<*
- LDAP§
MANAGEMENT
Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Service
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance
- Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute) (only in Standalone Mode)
- NTP Synchronize (only in Standalone Mode)
- Port Mirroring
- CLI (only in Standalone Mode)
- Syslog Support
Zero-Touch Provisioning
Yes. Requires the use of Omada Cloud-Based Controller.
Management Features
- Automatic Device Discovery*
- Batch Configuration*
- Batch Firmware Upgrading*
- Intelligent Network Monitoring*
- Abnormal Event Warnings*
- Unified Configuration*
- Reboot Schedule*
OTHERS
Certification
CE, FCC, RoHS
Package Contents
- ER7406
- Power Cord
- Quick Installation Guide
- Rackmount Kit
System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
- MAC OS, NetWare, UNIX or Linux
Environment
- Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)
- Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 90% non-condensing
