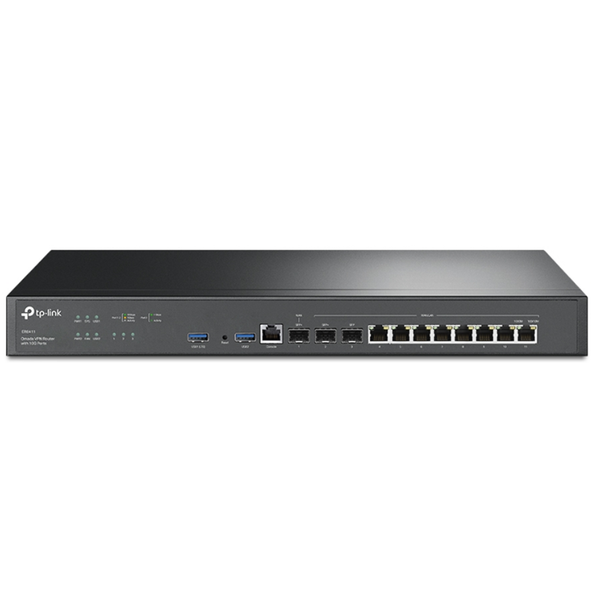

TP-Link Omada ER8411 10G Multi-WAN VPN Gateway (Rackmountable)
High-Capacity Performance with Quad-Core 2.2 GHz CPU Manage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier-class reliability for enterprise networking. Maximise the 10G Broadband with Omada Enterprise Gateway Maximised 10G Broadband with the Omada Enterprise Gateway Build your lightning-fast network with Omada ER8411 - an enterprise VPN router with 10G ports. It surpasses the need for high-speed, reliable, and safe enterprise networks, ideal for large-scale deployments such as offices, schools, and hotels. 10× WAN Ports &; One USB WAN for Mobile Broadband Up to 10× WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements.*1 Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup. High-Security and High-Performance VPN ER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.*2 The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels. Seamless Integration into Omada SDN The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralised cloud management and create a highly scalable network-all controlled from a single interface.
- Interface
- - 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
- - 1× 1GE SFP WAN/LAN Ports
- - 8× 1GE RJ45 WAN/LAN Ports
- - 1× RJ45 Console Ports
- - 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
- Button
- Reset Button
- Power Supply
- Redundant Dual Power Supplies (100-240 VAC, 50/60 Hz)
- Flash
- 4MB SPI NOR + 256 MB NAND
- DRAM
- 4 GB DDR4
- LED
- PWR, SYS, WAN, LAN, USB, FAN
- Dimensions ( W x D x H )
- 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
- Max Power Consumption
- - 26.36 W (with USB 3.0 connected)
- - 19.12 W (without USB 3.0 connected)
- Concurrent Session
- 2,300,000
- New Sessions /Second
- 20,000
- NAT (Static IP)
- - Upload: 9445.82 Mbps
- - Download: 9449.26 Mbps
- NAT(DHCP)
- - Upload: 9426.83 Mbps
- - Download: 9426.20 Mbps
- NAT(PPPoE)
- - Upload: 9413.96 Mbps
- - Download: 9102.01 Mbps
- NAT (L2TP)
- - Upload: 4230.62 Mbps
- - Download: 4169.53 Mbps
- NAT (PPTP)
- - Upload: 3933.86 Mbps
- - Download: 3821.97 Mbps
- 64 Byte Packet Forwarding Rate
- - Upload: 1080 Mbps
- - Download: 1030 Mbps
- IPsec VPN Throughput
- - SHA1-AES256: 2140.45 Mbps
- - SHA2-AES256: 2080.20 Mbps
- OpenVPN
- 1665.64 Mbps
- L2TP VPN Throughput
- - Unencrypted: 5013.50 Mbps
- - Encrypted: 2274.74 Mbps
- SSL VPN Throughput
- 1511.10 Mbps
- WAN Connection Type
- - Static/Dynamic IP
- - PPPoE
- - PPTP
- - L2TP
- - 6to4 Tunnel
- - Pass-Through
- - Mobile Broadband: 4G/3G modem for backup via USB port
- MAC Clone
- Modify WAN/LAN MAC Address*4
- DHCP
- - DHCP Server/Client
- - DHCP Address Reservation
- - Multi-net DHCP
- - Multi-IP Interfaces
- IPv6
- WAN Connection
- VLAN
- 802.1Q VLAN
- IPTV
- IGMP v2/v3 Proxy
- ACL
- IP/Port/Protocol/Domain Name Filtering
- Advanced Routing
- - Static Routing
- - Policy Routing
- Bandwidth Control
- - IP/Port-based Bandwidth Control
- - Guarantee & Limited Bandwidth
- Load Balance
- - Intelligent Load Balance
- - Application Optimized Routing
- - Link Backup (Timing*5, Failover)
- - Online Detection
- NAT
- - One-to-One NAT*5
- - Multi-Net NAT
- - Virtual Server
- - Port Triggering*5-
- - NAT-DMZ
- - FTP/H.323/SIP/IPSec/PPTP ALG
- - UPnP
- Security
- - SPI Firewall
- - VPN Passthrough
- - FTP/H.323/PPTP/SIP/IPsec ALG
- - DoS Defence, Ping of Death
- - Local Management
- Session Limit
- IP-based Session Limit
- SSL VPN
- - SSL VPN Server
- - SSL VPN Client
- - 500 SSL VPN Tunnels
- IPsec VPN
- - 300 IPSec VPN Tunnels
- - LAN-to-LAN, Client-to-LAN
- - Main, Aggressive Negotiation Mode
- - DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm
- - IKE v1/v2
- - MD5, SHA1 Authentication Algorithm
- - NAT Traversal (NAT-T)
- - Dead Peer Detection (DPD)
- - Perfect Forward Secrecy (PFS)
- PPTP VPN
- - PPTP VPN Server
- - PPTP VPN Client (32)*6
- - 300 Tunnels (Shared with L2TP)
- - PPTP with MPPE Encryption
- L2TP VPN
- - L2TP VPN Server
- - L2TP VPN Client (32)*6
- - 300 Tunnels (Shared with PPTP)
- - L2TP over IPSec
- OpenVPN
- - OpenVPN Server
- - OpenVPN Client (10)*6
- - 110 OpenVPN Tunnels
- Package Contents
- - Omada 10G Multi-WAN Security Gateway ER8411
- - Power Cord
- - Rack-Mount Kit
- - Quick Installation Guide
- System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
- Environment
- - Operating Temperature: 0-40 ? (32-104 ?);
- - Storage Temperature: -40-70 ? (-40-158 ?)
- - Operating Humidity: 10-90% RH non-condensing
- - Storage Humidity: 5-90% RH non-condensing
