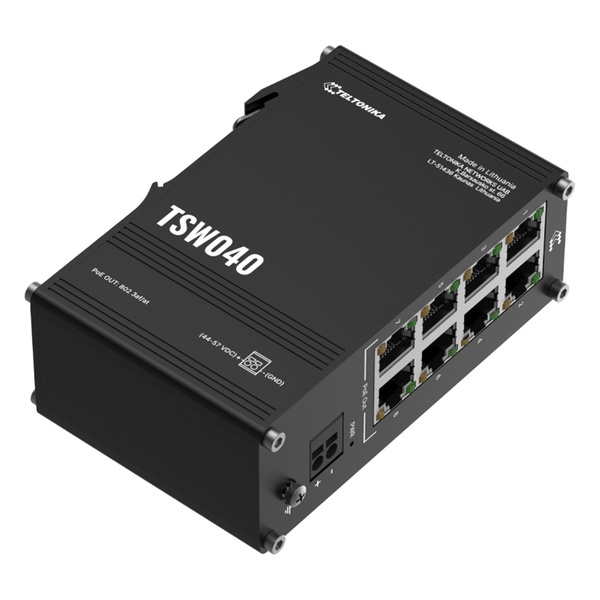

Teltonika TSW040 Unmanaged Industrial Ethernet PoE+ Switch (240W)
Teltonika TSW040 8 Port 10/100 PoE+ Switch with Integrated DIN Rail Mounting Teltonika TSW040 8 Port 10/100 PoE+ Switch with Integrated DIN Rail Mounting. The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC. - Plug and Play, no configuration needed- Integrated DIN rail bracket and surface mounting options- Anodized aluminium housing and panels- 8 PoE 802.3af/at ports- 30W Power per Port- 240W PoE Budget
- Product code
- TSW040
- Ports
- 8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
- IEEE 802.3 series standards
- 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
- Profinet
- Profinet Class A conformance (available with optional order code)
- PoE ports
- Port 1 - 8
- PoE standards
- 802.3af and 802.3at compliant PSE ports, over spare pairs - Mode B
- PoE Max Power per Port (at PSE)
- 30 W
- Total PoE Power Budget (at PSE)
- 240 W
- Bandwidth (Non-blocking)
- 20 Gbps
- Packer buffer
- 128 KB
- MAC address table size
- 2K entries
- Jumbo frame support
- 9216 bytes
- Connector
- 2-pin industrial DC power socket
- Input voltage range
- 7 - 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND
- PoE-out input voltage range
- 44 - 57 VDC
- Power consumption
- Idle: 1 W / Max: 2 W / PoE Max: 246 W
- Status LEDs
- 1 x Power LED, 16 x ETH status LEDs
- Power
- 1 x 2-pin industrial DC power socket
- Other Physical Interfaces
- 1 x Grounding screw
- Casing material
- Anodized aluminum housing and panels
- Dimensions (W x H x D)
- 113.1 x 41.2 x 74.6 mm
- Mounting options
- Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
- Weight
- 280 g
- Operating temperature
- -40 °C to 75 °C
- Operating humidity
- 5% to 95% non-condensing
- Ingress Protection Rating
- IP30
