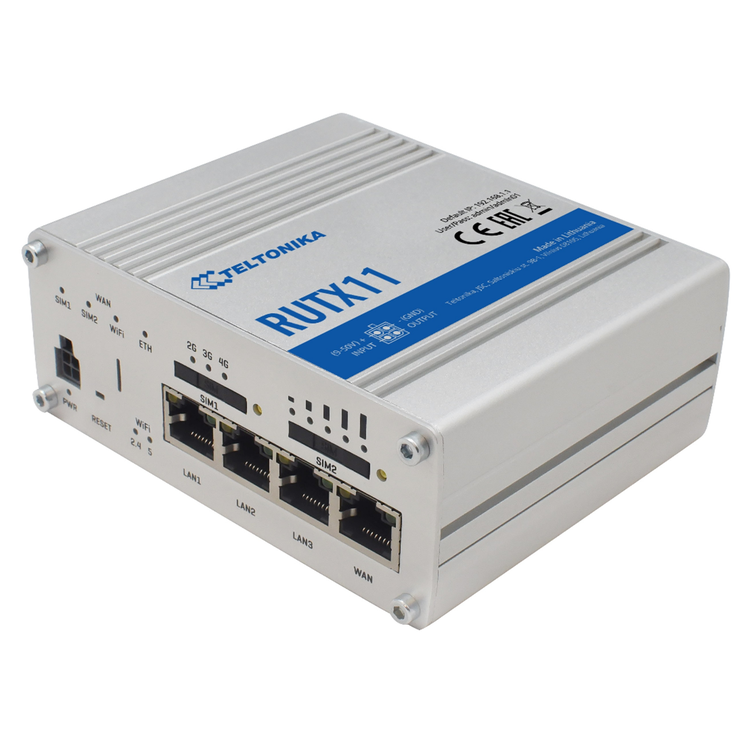

RUTX11 is the most feature rich among all the RUTX series devices. Wide range of internal hardware interfaces allows this device to be used in power hungry Industrial applications where speed and robustness is at the heart of solution. 4G (LTE) – Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gbit Ethernet ports allows seamless data transfer experience.
Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition. Would that be Enterprise office of power hungry Digital signage with 8k HDTV solution, RUTX11 can handle it all. In addition Bluetooth LE allows sensors to be connected directly to router, thus minimizing overall solution ecosystem.
- LTE Cat 6 with speeds up to 300 Mbps
- Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
- Dual-SIM with auto Failover, Backup WAN and other SW features
- Gigabit Ethernet with speeds up to 1000 Mbps
- Teltonika Remote Management System compatible
- RutOS – easy to use, secure and feature rich Operating System
MOBILE
Mobile module
4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
SIM switch (planed)
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status
Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET (planed), EMAIL to SMS (planed), SMS to Email (planed), SMS to HTTP (planed), SMS to SMS (planed), scheduled SMS (planed), SMS autoreply (planed), SMPP (planed)
Black/White list
Operator black/white list
Multiple PDN (planed)
Possibility to use different PDNs for multiple network access and services
Band management
Band lock, Used band status display
WIRELESS
Wireless mode
802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi security
WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ESSID
ESSID stealth mode
ETHERNET
WAN
1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN
3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
BLUETOOTH
Bluetooth
LE Bluetooth low energy (LE) for short range communication
NETWORK
Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
NetSnapper (optional)
Mobile connection management, data compression VPN client (not available in standard FW)
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMNP, MQTT
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring
Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall
Port forwards, traffic rules, custom rules
DHCP
Static and dynamic IP allocation, DHCP Relay, Relayd
QoS
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS
Supported >25 service providers, others can be configured manually
Network backup
VRRP (planed), Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover
Load balancing
Balance your Internet traffic over multiple WAN connections
SSHFS (optional)
Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY
Authetication
Pre-shared key, digital certificates, X.509 certificates
Firewall
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN
Port based and tag based VLAN separation
Mobile quota control
Set up custom data limits for both SIM cards
WEB filter
Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control
Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN
Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec
IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE
GRE tunnel
PPTP, L2TP
Client/Server services can run simultaneously
Stunnel (planed)
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN
Method of building scalable IPsec VPNs
MONITORING & MANAGEMENT
WEB UI
HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA
Firmware update from server, automatic notification
SSH
SSH (v1, v2)
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
TR-069 (planed)
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
SNMP
SNMP (v1, v2, v3), SNMP trap
JSON-RPC
Management API over HTTP/HTTPS
Modbus (planed)
Modbus TCP status/control, master and slave modes
MQTT
MQTT Broker, MQTT publisher
RMS
Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
CPU
Quad-core ARM Cortex A7, 717 MHz
RAM
256 MB, DDR3
FLASH memory
256 MB SPI Flash
FIRMWARE / CONFIGURATION
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW/configuration from server
RMS
Update FW/configuration for multiple devices
Keep settings
Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system
RutOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++
Development tools
SDK package with build environment provided (planed)
LOCATION TRACKING
GNSS
GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates
GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA
NMEA 0183
Server software
Supported server software: TAVL, RMS
Mobile Network Geolocation
Get approximate device location on RMS based on mobile cell tower position (without using GPS)
Geofencing
Configurable multiple geofence zones
USB
Data rate
USB 2.0
Applications
Samba share (planed), custom scripts (planed)
External devices
Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats
FAT, FAT32, NTFS
INPUT/OUTPUT
Input
1 x Digital Input
Output
1 x Digital Output
Events
SMS, Email, RMS
POWER
Connector
4 pin industrial DC power socket
Input voltage range
9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive)
Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards
Power consumption
11 W Max
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet
4 x RJ45 ports, 10/100/1000 Mbps
I/Os
1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs
3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED
SIM
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power
4 pin DC connector
Antennas
2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS
USB
USB A port for external devices
Reset
Factory reset button
PHYSICAL SPECIFICATION
Casing material
Full aluminium housing
Dimensions
115 mm x 95 mm x 44 mm (H x W x D)
Weight
456 g
Mounting options
DIN rail (can be mounted on two sides), flat surface placement
Operating Environment
Operating temperature
-40 C to 75 C
Operating humidity
10 % to 90 % non-condensing
Ingress Protection Rating
IP30
