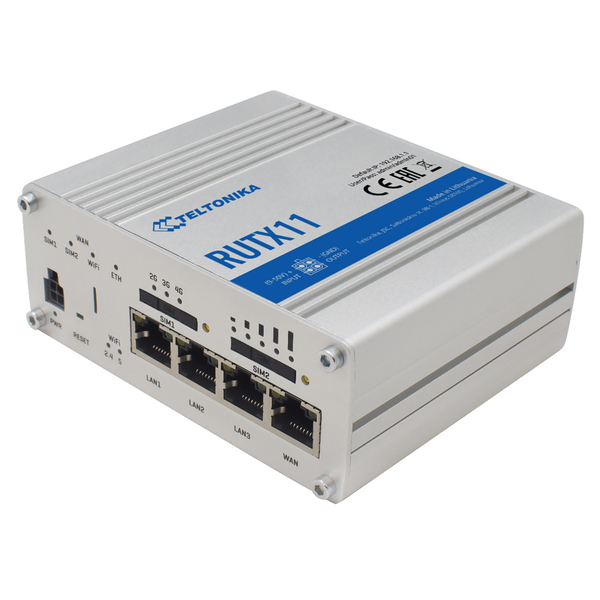

Teltonika RUTX11 4G LET CAT6 AC867 WiFi 5 Industrial Router
RUTX11 is the most feature rich among all the RUTX series devices. Wide range of internal hardware interfaces allows this device to be used in power hungry Industrial applications where speed and robustness is at the heart of solution. 4G (LTE) - Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gbit Ethernet ports allows seamless data transfer experience. Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition. Would that be Enterprise office of power hungry Digital signage with 8k HDTV solution, RUTX11 can handle it all. In addition Bluetooth LE allows sensors to be connected directly to router, thus minimizing overall solution ecosystem. - LTE Cat 6 with speeds up to 300 Mbps- Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps- Dual-SIM with auto Failover, Backup WAN and other SW features- Gigabit Ethernet with speeds up to 1000 Mbps- Teltonika Remote Management System compatible- RutOS - easy to use, secure and feature rich Operating System
- Mobile module
- 4G (LTE) - Cat 6 up to 300 Mbps, 3G - Up to 42 Mbps
- SIM switch (planed)
- 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
- Status
- Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
- SMS
- SMS status, SMS configuration, send/read SMS via HTTP POST/GET (planed), EMAIL to SMS (planed), SMS to Email (planed), SMS to HTTP (planed), SMS to SMS (planed), scheduled SMS (planed), SMS autoreply (planed), SMPP (planed)
- Black/White list
- Operator black/white list
- Multiple PDN (planed)
- Possibility to use different PDNs for multiple network access and services
- Band management
- Band lock, Used band status display
- Wireless mode
- 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
- WiFi security
- WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
- ESSID
- ESSID stealth mode
- WAN
- 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- LAN
- 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- Bluetooth
- LE Bluetooth low energy (LE) for short range communication
- Routing
- Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
- NetSnapper (optional)
- Mobile connection management, data compression VPN client (not available in standard FW)
- Network protocols
- TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMNP, MQTT
- VoIP passthrough support
- H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring
- Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall
- Port forwards, traffic rules, custom rules
- DHCP
- Static and dynamic IP allocation, DHCP Relay, Relayd
- QoS
- Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS
- Supported >25 service providers, others can be configured manually
- Network backup
- VRRP (planed), Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover
- Load balancing
- Balance your Internet traffic over multiple WAN connections
- SSHFS (optional)
- Possibility to mount remote file system via SSH protocol (not available in standard FW)
- Authetication
- Pre-shared key, digital certificates, X.509 certificates
- Firewall
- Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention
- DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN
- Port based and tag based VLAN separation
- Mobile quota control
- Set up custom data limits for both SIM cards
- WEB filter
- Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
- Access control
- Flexible access control of TCP, UDP, ICMP packets, MAC address filter
- OpenVPN
- Multiple clients and a server can run simultaneously, 12 encryption methods
- OpenVPN Encryption
- DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
- IPsec
- IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
- GRE
- GRE tunnel
- PPTP, L2TP
- Client/Server services can run simultaneously
- Stunnel (planed)
- Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code
- DMVPN
- Method of building scalable IPsec VPNs
- WEB UI
- HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
- FOTA
- Firmware update from server, automatic notification
- SSH
- SSH (v1, v2)
- SMS
- SMS status, SMS configuration, send/read SMS via HTTP POST/GET
- TR-069 (planed)
- OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- SNMP
- SNMP (v1, v2, v3), SNMP trap
- JSON-RPC
- Management API over HTTP/HTTPS
- Modbus (planed)
- Modbus TCP status/control, master and slave modes
- MQTT
- MQTT Broker, MQTT publisher
- RMS
- Teltonika Remote Management System (RMS)
- CPU
- Quad-core ARM Cortex A7, 717 MHz
- RAM
- 256 MB, DDR3
- FLASH memory
- 256 MB SPI Flash
- WEB UI
- Update FW from file, check FW on server, configuration profiles, configuration backup
- FOTA
- Update FW/configuration from server
- RMS
- Update FW/configuration for multiple devices
- Keep settings
- Update FW without losing current configuration
- Operating system
- RutOS (OpenWrt based Linux OS)
- Supported languages
- Busybox shell, Lua, C, C++
- Development tools
- SDK package with build environment provided (planed)
- GNSS
- GPS, GLONASS, BeiDou, Galileo and QZSS
- Coordinates
- GNSS coordinates via WebUI, SMS, TAVL, RMS
- NMEA
- NMEA 0183
- Server software
- Supported server software: TAVL, RMS
- Mobile Network Geolocation
- Get approximate device location on RMS based on mobile cell tower position (without using GPS)
- Geofencing
- Configurable multiple geofence zones
- Data rate
- USB 2.0
- Applications
- Samba share (planed), custom scripts (planed)
- External devices
- Possibility to connect external HDD, flash drive, additional modem, printer
- Storage formats
- FAT, FAT32, NTFS
- Input
- 1 x Digital Input
- Output
- 1 x Digital Output
- Events
- SMS, Email, RMS
- Connector
- 4 pin industrial DC power socket
- Input voltage range
- 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
- PoE (passive)
- Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards
- Power consumption
- 11 W Max
- Ethernet
- 4 x RJ45 ports, 10/100/1000 Mbps
- I/Os
- 1 Digital Input, 1 Digital Output on 4 pin power connector
- Status LEDs
- 3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED
- SIM
- 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
- Power
- 4 pin DC connector
- Antennas
- 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS
- USB
- USB A port for external devices
- Reset
- Factory reset button
- Casing material
- Full aluminium housing
- Dimensions
- 115 mm x 95 mm x 44 mm (H x W x D)
- Weight
- 456 g
- Mounting options
- DIN rail (can be mounted on two sides), flat surface placement
- Operating temperature
- -40 C to 75 C
- Operating humidity
- 10 % to 90 % non-condensing
- Ingress Protection Rating
- IP30
