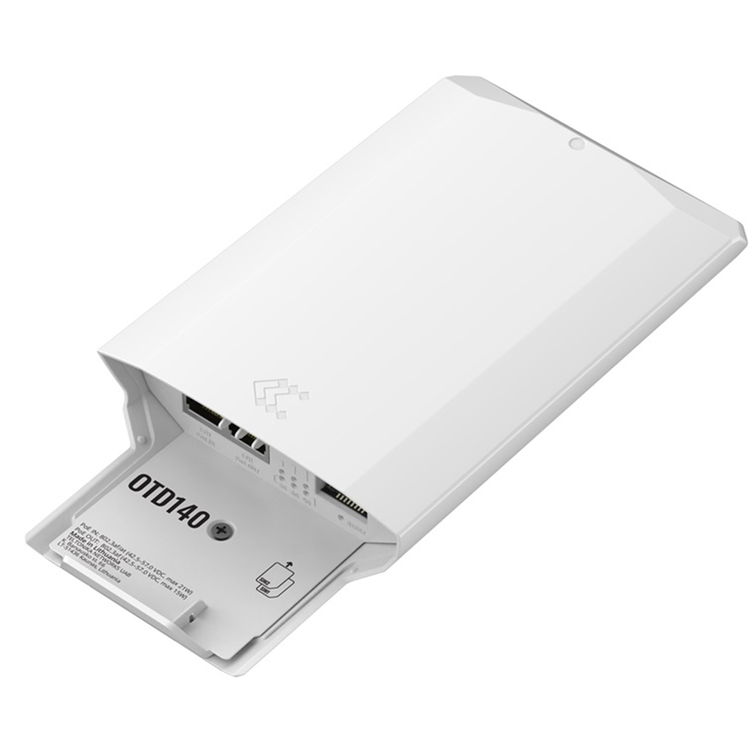

Teltonika OTD140 Outdoor Ethernet to 4G LTE IoT gateway with built in omni directional antenna. The OTD140 outdoor router features a dedicated and durable IP55 plastic housing and an integrated mounting bracket, making this outdoor 4G router easy to deploy and capable of withstanding outdoor environmental conditions. Beyond that, this outdoor router is equipped with LTE Cat 4 connectivity, compatibility with RMS for remote management capabilities, and two PoE-in/out Ethernet ports.
- IP55 durability for outdoor deployment
- 4G LTE (CAT4)
- Dual SIM with auto failover and other switching scenarios
- 1 x PoE-in and 1 x PoE-out port
MPN
OTD140
CPU
Mediatek, 580 MHz, MIPS 24KEc
RAM
128 MB
FLASH storage
16 MB
Ethernet
2 x RJ45 ports, 10/100 Mbps
Status LEDs
3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs
SIM
2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Supported Bands
4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, 4G (LTE-TDD): B38, B40, B41
Power
RJ45, PoE In, 42.5 – 57.0 VDC
Antennas
2 x Internal antennas
Antennas specifications
1 x 698 - 960 / 1710 - 2690MHz, 50 O, gain 3 dBi, omnidirectional, 1 x 698 - 960 / 1710 - 2690MHz, 50 O, gain 4.5 dBi, omnidirectional
Reset
Reboot/User default reset/Factory reset button
Mobile module
4G (LTE) - LTE Cat 4 150 Mbps DL, 50 Mbps UL; 3G - 21 Mbps DL, 5.76 Mbps UL; 2G - 236.8 kbps DL, 236.8 kbps UL
SIM switch
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status
IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD
Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list
Operator black/white list (by country or separate operators)
Band management
Band lock, Used band status displa
APN
Auto APN
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
Passthrough
Router assigns its mobile WAN IP address to another device on LAN
LAN
2 x ETH ports (can be configured as WAN), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
PoE In ports
1 x PoE In; 802.3af/at, 42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
PoE Out ports
1 x PoE Out; 802.3af and 802.3at Alternative B
PoE Max Power Out
24 W Max (power supply unit dependent
Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall
Port forward, traffic rules, custom rules
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
Firewall
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN
Port and tag-based VLAN separation
Access control
Flexible access control of SSH, Web interface, CLI and Telnet
VPN
OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
MONITORING & MANAGEMENT
WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, RMS
Casing material
Plastic (PC+ASA)
Dimensions (W x H x D)
110 x 49.30 x 235 mm
Weight
855 g
Mounting options
Mounting Bracket (for vertical flat surface or pole mounting)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP55
Regulatory
CE, UKCA, EAC, UCRF, RCM
