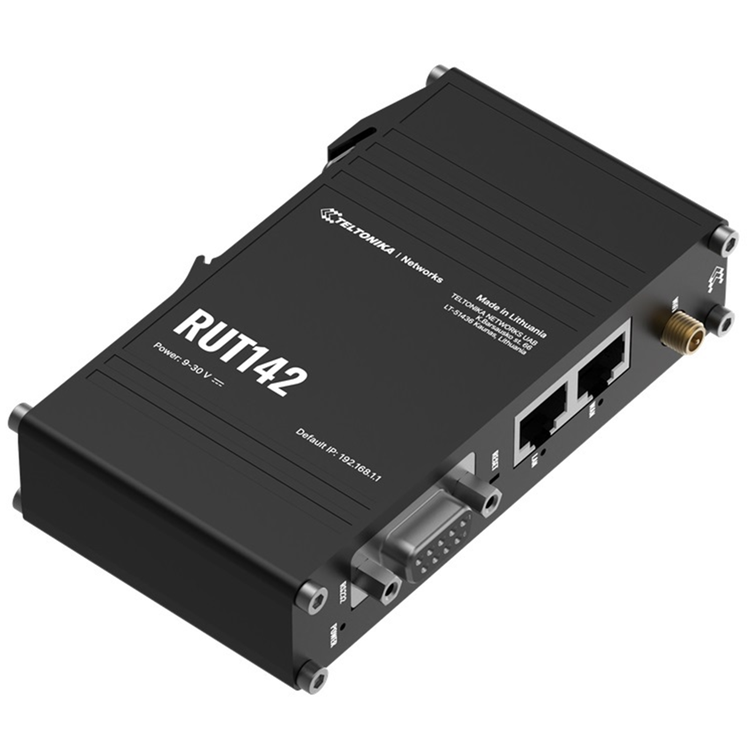

Teltonika RUT142 DIN Rail Mount Industrial Ethernet Wi-Fi Router. The RUT142 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with the RS232 serial interface, two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.
- 2 x 10/100 Mbps Ethernet ports, Wi-Fi 4
- RS232 for serial communication
- Integrated DIN rail bracket and a 3-pin power connector
- RMS Remote management, access & VPN services
CPU
Mediatek, 580 MHz, MIPS 24KEc
RAM
128 MB, DDR2
FLASH storage
16 MB serial NOR flash
WAN
1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN
1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Wireless mode
802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi security
WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall
Port forward, traffic rules, custom rules, TTL target customization
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN
Port and tag-based VLAN separation
VPN
OpenVPN, OpenVPN Encryption 27 Methods, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
OPC UA
Client, Server - TCP
Data To Server
HTTP(S), MQTT, Azure MQTT
Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data.
Monitoring and Management
WEB UI, FOTA, SSH, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
Power Connector
3-pos pluggable terminal block, 3-pin power connector
Input voltage range
9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max (Power Supply not Included)
PoE (passive)
Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption
Idle: < 1 W / Max: < 2 W
Status LEDs
1 x WAN type LED, 1 x LAN type LED, 1 x Power LED
Antennas
1 x RP-SMA for Wi-Fi
RS232
1 x DB9 socket
Reset
Reboot/User default reset/Factory reset button
Casing material
Aluminium housing
Dimensions (W x H x D)
113.10 x 25 x 68.6 mm
Weight
149.2 g
Mounting options
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
- CPU
- Mediatek, 580 MHz, MIPS 24KEc
- RAM
- 128 MB, DDR2
- FLASH storage
- 16 MB serial NOR flash
- WAN
- 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- LAN
- 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- Wireless mode
- 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
- Wi-Fi security
- WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
- Routing
- Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Network protocols
- TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
- VoIP passthrough support
- H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring
- Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall
- Port forward, traffic rules, custom rules, TTL target customization
- Authentication
- Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
- Firewall
- Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention
- DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN
- Port and tag-based VLAN separation
- VPN
- OpenVPN, OpenVPN Encryption 27 Methods, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
- OPC UA
- Client, Server - TCP
- Data To Server
- HTTP(S), MQTT, Azure MQTT
- Teltonika Networks Web API (beta) support
- Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data.
- Monitoring and Management
- WEB UI, FOTA, SSH, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
- Power Connector
- 3-pos pluggable terminal block, 3-pin power connector
- Input voltage range
- 9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max (Power Supply not Included)
- PoE (passive)
- Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
- Power consumption
- Idle: < 1 W / Max: < 2 W
- Status LEDs
- 1 x WAN type LED, 1 x LAN type LED, 1 x Power LED
- Antennas
- 1 x RP-SMA for Wi-Fi
- RS232
- 1 x DB9 socket
- Reset
- Reboot/User default reset/Factory reset button
- Casing material
- Aluminium housing
- Dimensions (W x H x D)
- 113.10 x 25 x 68.6 mm
- Weight
- 149.2 g
- Mounting options
- Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
- Operating temperature
- -40 °C to 75 °C
- Operating humidity
- 10% to 90% non-condensing
- Ingress Protection Rating
- IP30
