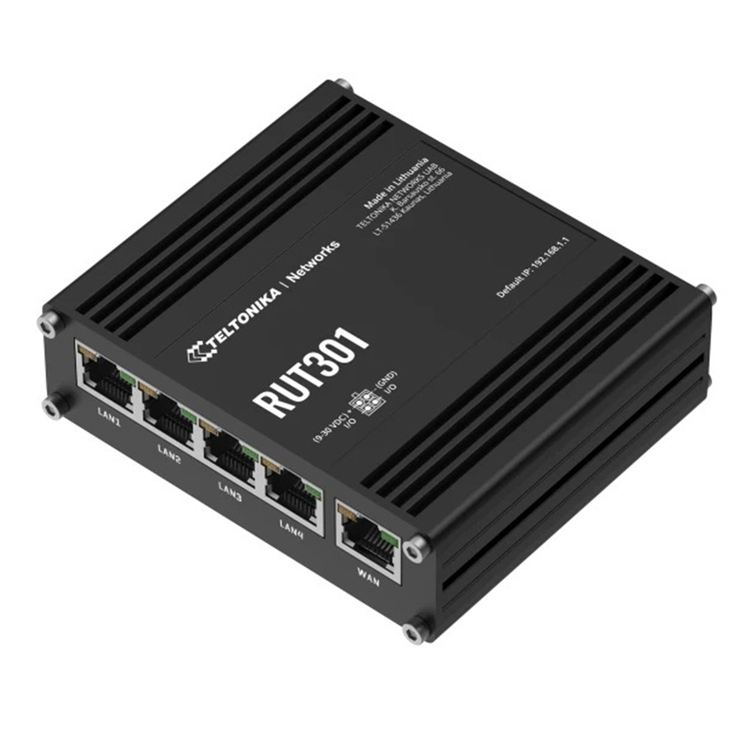

The RUT301 is one of the most cost-efficient industrial Ethernet routers in the IoT market, providing robust network connectivity with advanced security features. This Ethernet router comes with five Ethernet ports, two configurable digital I/Os, and a USB 2.0 port for easy compliance with industrial machinery, enterprise, or retail equipment. Additionally, the RUT301 has a pre-configured firewall and supports multiple industrial communication protocols. - 5 x Ethjavascript:void("help")ernet ports (10/100 Mbps), Digital I/Os, and USB 2.0- RMS For remote management, access &; VPN services- Pre-configured firewall and multiple VPN services- Industrial-grade design for withstanding harsh environments
- WAN
- 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
- LAN
- 4 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- Routing Static
- routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Network protocols
- TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
- VoIP passthrough support
- H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring
- Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall
- Port forward, traffic rules, custom rules
- Firewall status page
- View all your Firewall statistics, rules, and rule counters
- Ports management
- View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed
- Network topology
- Visual representation of your network, showing which devices are connected to which other devices
- DHCP
- Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
- QoS / Smart Queue Management (SQM)
- Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS
- Supported >25 service providers, others can be configured manually
- Network backup
- VRRP, Wired options, each of which can be used as an automatic Failover
- Load balancing
- Balance Internet traffic over multiple WAN connections
- SSHFS
- Possibility to mount remote file system via SSH protocol
- Authentication
- Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
- Firewall
- Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention
- DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN
- Port and tag-based VLAN separation
- WEB filter
- Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control
- Flexible access control of SSH, Web interface, CLI and Telnet
- VPN
- OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
- OPC UA Supported modes
- Client, Server (TCP)
- MODBUS
- Yes
- DATA TO SERVER
- HTTP(S), MQTT, Azure MQTT
- Modbus MQTT Gateway
- Allows sending commands and receiving data from MODBUS Server through MQTT broker
- DNP3 Supported modes
- Station, Outstation via TCP, USB
- DLMS Support
- Standard protocol for utility meter data exchange, Client via TCP, USB
- Teltonika Networks Web API support
- Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data.
- Cloud of Things
- Allows monitoring of: Device data, Mobile data, Network info, Availability
- Cumulocity
- Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP
- Azure IoT Hub
- Allows monitoring of: Wan IP, Number of bytes send/received, Model, Manufacturer, Serial, Revision, FW version and collected data of industrial devices
- CPU
- Mediatek, 580 MHz, MIPS 24KEc
- RAM
- 128 MB, DDR2
- FLASH storage
- 16 MB serial NOR flash
- Events
- Email, RMS
- I/O juggler
- Allows to set certain I/O conditions to initiate event
- Ethernet
- 5 x RJ45 ports, 10/100 Mbps
- I/O's
- 2 x Digital Input, 2 x Digital Output on 4-pin power connector
- Status LEDs
- 1 x WAN type LED, 4 x LAN status LEDs, 1 x Power LED
- Power
- 1 x 4-pin power connector
- USB
- 1 x USB A port for external devices
- Reset
- Reboot/User default reset/Factory reset button
- Operating temperature
- -40 °C to 75 °C
