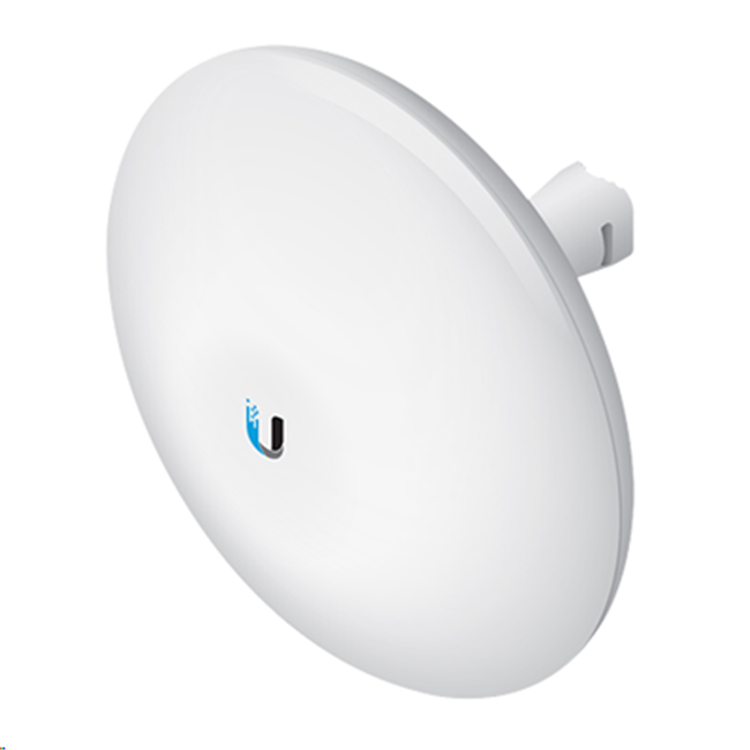

Ubiquiti NanoBeam NBE-5AC-Gen2 High-Performance airMAX ac Bridge,
High-Performance airMAX® ac BridgeIncorporating innovative industrial design with proprietary airMAX® ac technology, the NanoBeam® AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.Management Wi-Fi RadioThe NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.Improved Surge ProtectionThe NanoBeam® AC features enhanced protection against ESD events.Superior ProcessingUbiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.Incredible Antenna "Beam" PerformanceThe form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC's excellent beam directivity provides the best performance in high-noise environments.Advanced Software TechnologyUbiquiti's airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.Now with airOS®8airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
- Dimensions (Mount Included)
- 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
- Weight (Mount Included)
- 0.530 kg (1.17 lb)
- Power Supply
- 24V, 0.5A Gigabit PoE Adapter (Included)
- Max. Power Consumption
- 8.5W
- Gain
- 19 dBi
- Networking Interface
- 2x 10/100/1000 Ethernet Port (1x Passthrough)
- Wi-Fi for Management
- Processor Specs
- Atheros MIPS 74Kc, 720 MHz
- Memory
- 128 MB DDR2, 8 MB Flash
- LEDs
- Power, Ethernet, (4) Signal Strength
- Signal Strength
- LEDs Software-Adjustable to Correspond to Custom RSSI Levels
- Max. VSWR
- 1.5:1
- PtP Mode
- 10/20/30/40/50/60/80 MHz
- PtMP Mode
- 10/20/30/40 MHz
- Polarization
- Dual Linear
- Enclosure
- Outdoor UV Stabilized Plastic
- Mounting
- Pole-Mount (Kit Included), Wall-Mount
- Wind Loading
- 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
- Wind Survivability
- 200 km/h (125 mph)
- ESD/EMP Protection
- Air: ± 24 kV, Contact: ± 24 kV
- Operating Temperature
- -40 to 80° C (-40 to 176° F)
- Operating Humidity
- 5 to 95% Noncondensing
- Certifications
- CE, FCC, IC
- RoHS Compliance
- Yes
- Salt Fog Test
- IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
- Vibration Test
- IEC 68-2-6
- Temperature Shock Test
- IEC 68-2-14
- UV Test
- IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
- Wind-Driven Rain Test
- ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
