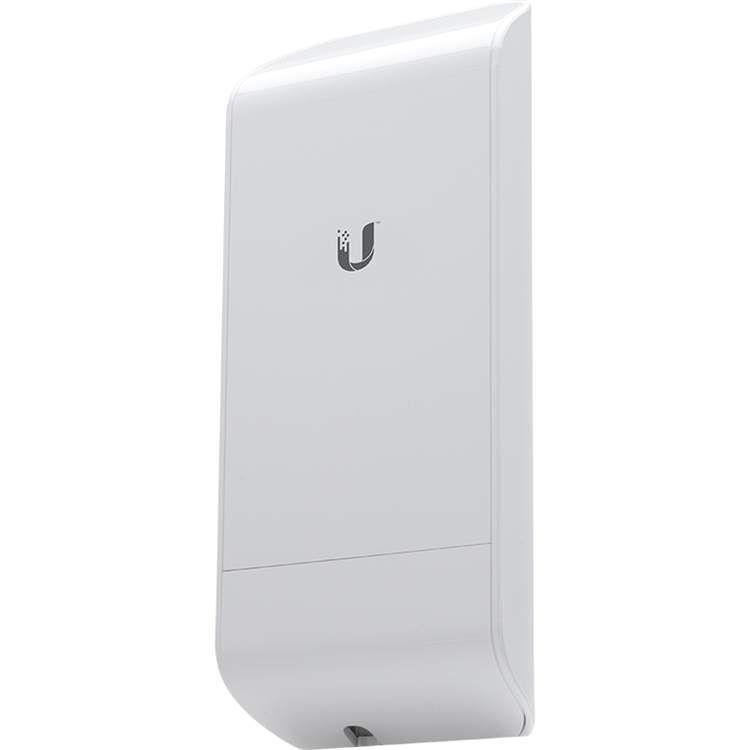

Ubiquiti NanoStation LocoM2 2.4GHz, 150+ Mbps, 5+ km, 1 x 10/100 Outdoor airMAX CPE
The Ubiquiti Nanostation LocoM2 is the perfect solution for creating a dedicated Point to Point or Point to Multipoint connection between locations where running an ethernet cable is not a viable option. The Ubiquiti Nanostation LocoM2 can also be used for extending wireless coverage outdoors or to remote buildings to provide direct Wi-Fi access to mobile devices.
Plug and Play Installation
The NanoStation®M requires no tools for assembly; only a single wrench is required for pole-mounting.
Performance Breakthrough
Up to 100Mbps real outdoor throughput and up to 1km+ range. Featuring 2x2 MIMO technology, the new Ubiquiti NanoStation links significantly faster and farther than ever before.
New Leading-Edge Industrial Design
The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new Ubiquiti NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.
Next-Gen Antenna Design
New Ubiquiti antenna array designs featuring 8dBi dual-polarity gain at 2.4GHz. Optimized cross-polarity isolation and in a compact form-factor.
AirOS V
Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.
What's In The Box
Dimensions
161 x 31 x 80 mm
Weight
180 g
Power Supply
(PoE) 24V, 0.5A 24V, 0.5A
Max. Power Consumption
5.5W 5.5W
Power Method
Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency
2412-2462 MHz
Gain
8.5 dBi
Networking Interface
(1) 10/100 Ethernet Port
Processor Specs
Atheros MIPS 24Kc, 400 MHz
Memory
32 MB SDRAM, 8 MB Flash
Frequency
2.4 GHz
Cross-pol Isolation
20 dB Minimum
Max. VSWR
1.4:1
Beamwidth
60° (H-pol) / 60° (V-pol) / 60° (Elevation)
Polarization
Dual Linear
Enclosure
Outdoor UV Stabilized Plastic
Mounting
Pole-Mount (Kit Included)
Operating Temperature
-30 to 75° C (-22 to 167° F)
Operating Humidity
5 to 95% Noncondensing
Wireless Approvals
FCC Part 15.247, IC RS210, CE
RoHS Compliance
Yes
Shock & Vibration
ETSI300-019-1.4
What's In the Box
- NanoStation
- Cable Tie
- PoE Adapter (24V, 0.5A) with Mounting Bracket
- Power Cord
- Quick Start Guide
