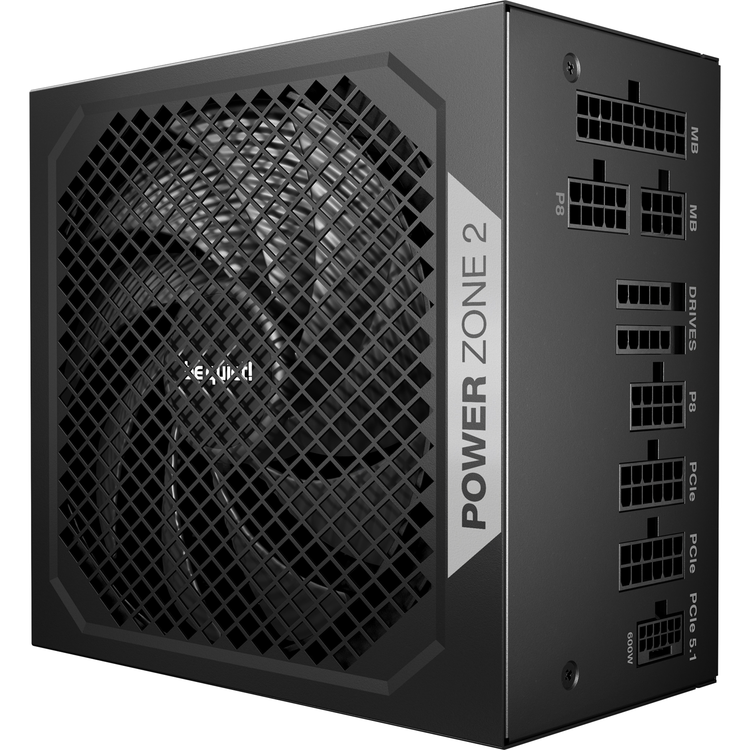

POWER ZONE 2 1000W - Exceptional efficiency for Gamers Power Zone 2 1000W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions. - 80 PLUS® Platinum and Cybenetics Platinum efficiency rating (up to 94.0%)- Semi-passive zero-RPM cooling- Fan runs on for 2-5 minutes to avoid frequent starting noise- Pure Wings 3 140mm fan for quiet and efficient cooling- 90° angled 12V-2x6 connector and PCIe 5.1/ATX 3.1 compatibility- Advanced voltage regulation and stability thanks to LLC technology- Unique look with an unmistakable mesh design- One massive high-performance 12V-rail PLATINUM CERTIFIED - Highly efficient operation Power Zone 2 1000W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.0%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.
SEMI-PASSIVE ZERO-RPM COOLING - Enjoy the silence A large Pure Wings 3 140mm fan is keeping Power Zone 2 1000W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.
PURE WINGS 3 FAN - Specially designed for Power Zone 2 No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 1000W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.
FUTURE-PROOF YOUR SYSTEM - With 90° angled 12V-2x6 connector in scope of delivery Power Zone 2 1000W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 1000W extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER - For massive transient loads Power Zone 2 offers 1000W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
HIGH-CLASS TECHNOLOGIES - All packed in a stunning design With its LLC topology, the Power Zone 2 1000W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 1000W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU's case for a long-lasting impression and an unparalleled look and feel.
- Model
- Power Zone 2 1000W
- Continuous power (W)
- 1000
- Peak power (W)
- 1070
- Form factor
- Version 3.1
- Form factor EPS 12V
- Version 2.92
- Topology
- LLC + SR + DC/DC
- Digitally controlled
- -
- Voltage (Vac)
- 100 - 240
- Frequency (Hz)
- 50 - 60
- Input current (A)
- 13 / 6.5
- Power factor at 100% load
- >0.98
- Modern standby
- Yes
- Power consumption in standby (W)
- <0.18
- Average life time (h / 25°C)
- >100,000
- Operating temperature up to (°C)
- 40
- 80 PLUS certification
- Platinum
- Efficiency (%) at 230V, 2% load
- 66.9
- Efficiency (%) at 230V, 10% load
- 89.8
- Efficiency (%) at 230V, 20% load
- 93.0
- Efficiency (%) at 230V, 50% load
- 94.0
- Efficiency (%) at 230V, 100% load
- 92.6
- Cybenetics Noise Rating
- A+
- Fan
- Pure Wings 3
- Fan size (mm)
- 140
- Bearing technology
- Rifle
- Motor technology
- 4-pole fan motor
- Max. fan speed (rpm)
- 2100
- dB(A) at 10% load
- 6.5
- dB(A) at 20% load
- 6.5
- dB(A) at 50% load
- 6.5
- dB(A) at 100% load
- 27.2
- Multi-rail operation (12V rails)
- -
- 12V single rail operation
- Yes
- Overclocking key
- -
- +3.3V (A)
- 20
- +5V (A)
- 20
- +12V1 (A)
- 83.3
- +12V2 (A)
- N/A
- +12V3 (A)
- N/A
- +12V4 (A)
- N/A
- +12V5 (A)
- N/A
- +12V6 (A)
- N/A
- -12V (A)
- 0.5
- +5Vsb (A)
- 3
- Max. combined power 12V (W)
- 999.6
- Max. combined power 12V-2x6 (W)
- 600
- Max. combined power 3.3V + 5V (W)
- 120
- Hold-up time at 100% load (ms)
- 22.7
- Hold-up time at 80% load (ms)
- 30.5
- Power good signal (ms)
- 100 - 150
- Modular cables
- Yes
- Sleeved cables
- Yes
- Flat cables
- Yes
- Maximum cable length (cm)
- 100
- Cable length to motherboard (cm)
- 60
- No. of cables
- 8
- ATX-Motherboard (20+4-pin)
- 1
- P4+4 (CPU)
- 1
- P8 (CPU)
- 1
- P4 (CPU)
- 1
- 12V-2x6 cables
- 1
- PCI-e 6+2-pin (GPU)
- 3
- PCI-e 6-pin (GPU)
- -
- SATA
- 7
- PATA
- 1
- FDD (Floppy)
- -
- OTP (over temperature protection)
- Yes
- OCP (over current protection)
- Yes
- OPP (over power protection)
- Yes
- SCP (short circuit protection)
- Yes
- OVP (over Voltage protection)
- Yes
- UVP (under Voltage protection)
- Yes
- SIP (Surge & Inrush protection)
- Yes
- BSMI
- -
- CB
- Yes
- CCC
- -
- CE
- Yes
- cRUus
- -
- cTUVus
- Yes
- CU
- Yes
- FCC
- Yes
- RCM
- -
- TÜV
- Yes
- UKCA
- Yes
- IRAM
- -
- Energy Star
- 8.0
- ErP
- Yes
- WEEE
- Yes
- RoHS
- Yes
- Triman
- Yes
- Thumb screws
- -
- Screws
- Yes
- Cable ties
- Yes
- Velcro cable ties
- -
- User manual languages
- DE, EN, FR, PL, ES, RU, UA
- OCK slot bracket with switch / OCK jumper
- -
- SFX-to-ATX adapter bracket
- -
- Dimensions without cable (L x W x H), (mm)
- 160 x 150 x 86
- Weight (kg)
- 2.82
- Color
- Black
