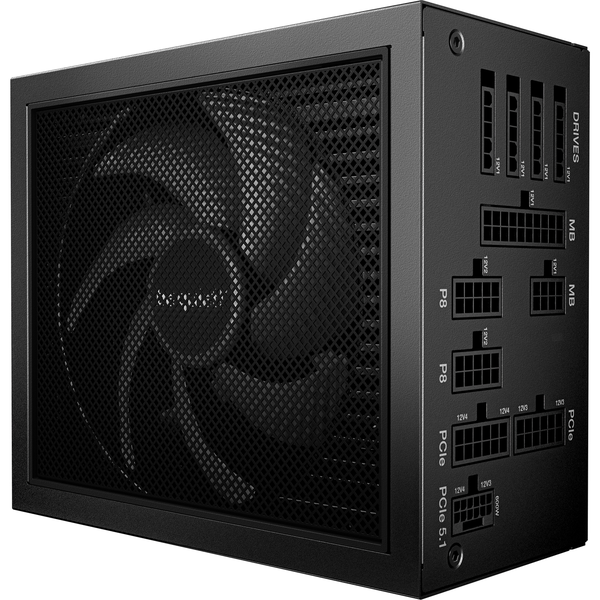

DARK POWER 14 1000W - No compromise silence and performance
Dark Power 14 1000W features a high-performance heat sink design with an integrated fan and can be operated in either active or semi-passive mode.
- 80 PLUS® Titanium and Cybenetics Titanium efficiency (up to 95.5%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2-pin connector
- Active and semi-passive cooling can be selected with the push of a button
- Aluminum heat sink to support the semi-passive cooling concept and improve longevity of the components
- Silent Wings fan for virtually inaudible operation
- Full bridge + Synchronous Rectifier + LLC technology provides unmatched signal stability and extremely high efficiency
THE HIGHEST EFFICIENCY POSSIBLE - I am Titanium!
Dark Power 14 1000W is certified with 80 PLUS® Titanium and Cybenetics Titanium for a stunning energy efficiency rating of up to 95.5%. This provides lots of benefits for a high-end system, including less power consumption and an overall cooler and quieter operation.
NEXT GEN - With ATX 3.1 compatibility
Dark Power 14 1000W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and perfect for current and future high-end systems.
PUSH THE BUTTON! - Switch effortlessly between active and semi-passive cooling
A button on the rear of the power supply allows switching between a balanced active cooling mode, where the Silent Wings fan spins all the time, or a semi-passive mode, where the fan does not spin under low load and only starts when additional cooling is required for more demanding operations. A post-ventilation setting keeps the fan spinning after cooling down for a short period of 2-5 minutes to prevent frequent and noisy starts and stops.
HEAT SINK AND INTEGRATED SILENT WINGS - Simply fan-tastic
A large heat sink connects to the parts of the power supply that need the most cooling and dissipates a large portion of the heat. Even though a Titanium efficiency power supply does not generate as much heat, active cooling is required to prevent overheating issues under high load. Nothing less than the very best fan of be quiet! cools Dark Power 14 1000W. Being integrated directly into the heat sink, this high-end fan is immune to vibrations and sits unshakably. A 6-pole fan motor and fluid-dynamic bearing ultimately make for exceptionally long lifetime and minimal power consumption.
READY FOR OVERCLOCKING - Maximum strength
Dark Power 14 1000W is particularly suitable for overclocking. With the simple push of a button, it is possible to manually switch between multi-rail and single-rail mode. This gives full overclocking control between the default four 12V-rail mode and the alternative massive single-rail operation.
PEAK TECHNOLOGY - Higher efficiency and lower ripple noise
Dark Power 14 1000W is state-of-the-art technology. With an Active Rectifier and full bridge LLC Technology it offers some of the most advanced technologies available, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
105°C CAPACITORS FROM JAPAN - Just the best
Each component in Dark Power 14 1000W is carefully selected. That is why we have exclusively used high-quality Japanese capacitors for this PSU. They are rated to 105°C, ensure stability, reliability, and a long operating life.
PERFECTLY MODULAR - As all things should be
Modular, sleeved cables measuring up to 120cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases.
General data
Model
DARK POWER 14 | 1000 W
Continuous power (W)
1000
Peak power (W)
1100
Form factor
ATX 3.1
Form factor EPS 12V
Version 2.92
Topology
Full bridge + LLC + SR + DC/DC
Digitally controlled
Yes
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input current (A)
7
Power factor at 100% load
>0.98
Modern standby
Yes
Power consumption in standby (W)
<0.15
Average life time (h / 25°C)
>100,000
Operating temperature up to (°C)
40
Efficiency
80 PLUS certification
Titanium
Cybenetics ETA
1
Efficiency (%) at 230V, 2% load
73.6
Efficiency (%) at 230V, 10% load
91.7
Efficiency (%) at 230V, 20% load
94.6
Efficiency (%) at 230V, 50% load
95.5
Efficiency (%) at 230V, 100% load
93.8
Fan and cooling technology
Cybenetics LAMBDA
A+
Fan
Silent Wings
Fan size (mm)
135
Bearing technology
FDB
Motor technology
6-pole fan motor
Max. fan speed (rpm)
2100
dB(A) at 10% load
8
dB(A) at 20% load
8
dB(A) at 50% load
8
dB(A) at 100% load
18.2
Output
Multi-rail operation (12V rails)
4
12V single rail operation
-
Overclocking key
Yes
+3.3V (A)
25
+5V (A)
24
+12V1 (A)
33
+12V2 (A)
33
+12V3 (A)
40
+12V4 (A)
40
+12V5 (A)
N/A
+12V6 (A)
N/A
-12V (A)
0.5
+5Vsb (A)
3
Max. combined power 12V (W)
996
Max. combined power 12V-2x6 (W)
600
Max. combined power 3.3V + 5V (W)
120
Hold-up time at 100% load (ms)
-
Hold-up time at 80% load (ms)
20.1
Power good signal (ms)
100 - 150
Cables and connectors
Modular cables
Yes
Sleeved cables
Yes
Flat cables
Yes
Maximum cable length (cm)
105
Cable length to motherboard (cm)
60
No. of cables
10
ATX-Motherboard (20+4-pin)
1
P4+4 (CPU)
1
P8 (CPU)
1
P4 (CPU)
-
12V-2x6 cables
1
PCI-e 6+2-pin (GPU)
4
PCI-e 6-pin (GPU)
-
SATA
13
PATA
2
FDD (Floppy)
-
Protection
OTP (over temperature protection)
Yes
OCP (over current protection)
Yes
OPP (over power protection)
Yes
SCP (short circuit protection)
Yes
OVP (over Voltage protection)
Yes
UVP (under Voltage protection)
Yes
SIP (Surge & Inrush protection)
Yes
Safety certification
BSMI
-
CB
Yes
CCC
-
CE
Yes
cRUus
-
cTUVus
Yes
CU
Yes
FCC
Yes
RCM
-
TÜV
Yes
UKCA
Yes
IRAM
-
Environmental directives
Energy Star
9.0
ErP
Yes
WEEE
Yes
RoHS
Yes
Triman
Yes
Scope of delivery
Thumb screws
-
Screws
Yes
Cable ties
Yes
Velcro cable ties
-
User manual languages
CN, DE, EN, ES, FR, IT, JP, PL, RU, TW, UA
OCK slot bracket with switch / OCK jumper
-
SFX-to-ATX adapter bracket
-
Casing
Dimensions without cable (L x W x H), (mm)
175 x 150 x 86
Weight (kg)
2.2
Color
Black
