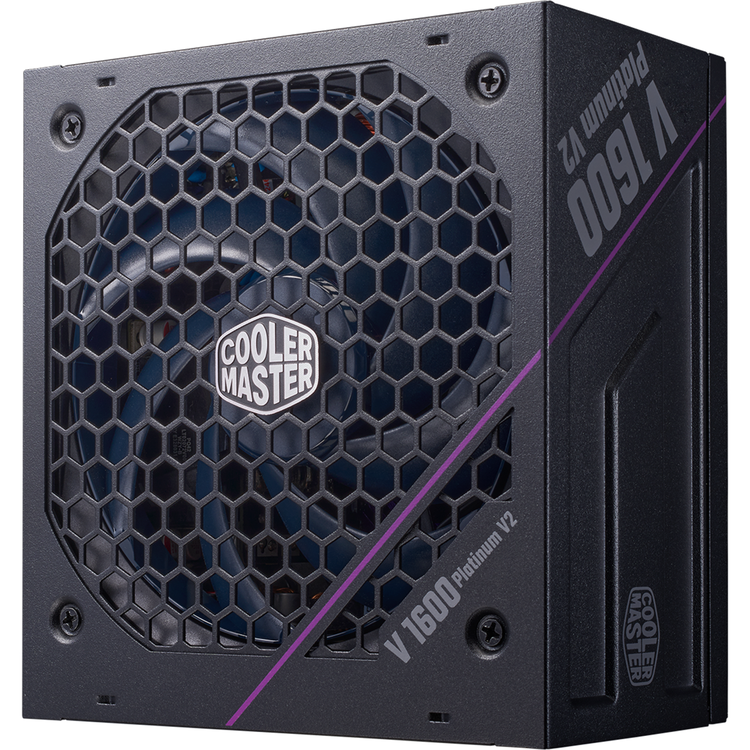

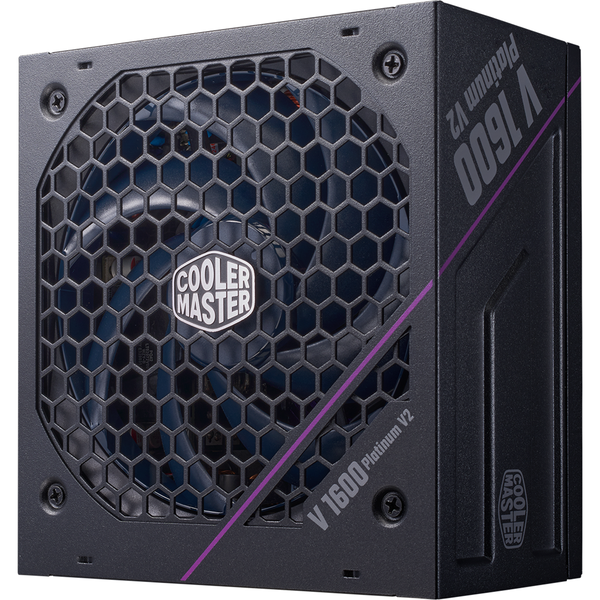

V PLATINUM 1600 V2
QUIETLY SUPREME
- Dual 40 series? GPU support
- ATX 3.1 support & two durable 90° 12V-2x6 cables
- Advanced heat dissipation
- Ultra-quiet Mobius fan
- 80 Plus Platinum certification
QUIETLY SUPREME
V Platinum V2 delivers silent operation, featuring an ultra-quiet Mobius fan, a protective conformal coating heatsink, smart thermal control, zero-RPM fan mode, fully modular cabling, and 80 Plus Platinum efficiency.
MOBIUS FAN ENHANCES THERMAL PERFORMANCE AND A LONGER LIFESPAN
An ultra-quiet Mobius fan featuring high-performance oil reflow, an innovative ring blade design, and accelerated pressure air vents provides improved noise levels and advanced thermal performance.
OIL FLOWS BACK TO THE SEALED BEARING, ENSURING CONSTANT LUBRICATION.
A loop dynamic bearing with a thick oil coating ensures stable performance, prolongs the fan's lifespan, and effectively reduces noise.
SILENT FAN PERFORMANCE WITH A ZERO SPEED MODE
A quieter, speedier fan features lower noise level output and improved airflow thanks to a higher RPM.
*All performance stats confirmed in 25°C ambient temperature testing.
ADVANCED HEAT DISSIPATION
Purple anodic-coated heat sink with bevel cut lowers average temperatures, compared to traditional heat sinks. Bevel cuts bring out the heat source more effectively, and after concentrating the flow field, benefiting the heat dissipation.
CERTIFIED EFFICIENCY
An interleaved PFC decreases power loss and improves efficiency by minimizing current, reducing interference, and reducing output capacitor ripple current.
TWO DURABLE 90° 12V-2X6 CABLES & ATX 3.1 SUPPORT
Includes ATX 3.1 support and two 90° 12V-2x6 connectors featuring more reliability, higher electrical durability, improved safety, and the capacity to deliver up to 600W per connector, totaling an impressive 1200W output to empower your GPU.
*All performance stats confirmed in 25°C ambient temperature testing.
FULLY MODULAR CABLING
A modular cable management design reduces clutter, increases airflow, and improves overall efficiency as well as thermal performance.
Model
MPZ-G002-AFAP
ATX Version
ATX 12V Ver. 3.1
PFC
Active PFC
Input Voltage
100-240V
Input Current
16-8A
Input Frequency
50-60Hz
Dimensions (L x W x H)
160 x 150 x 86 mm
Fan Size
135mm
Fan Bearing
LDB
Fan Speed
2400±10% RPM
Efficiency
= 92% @ Typical Load
80 PLUS Rating
80 PLUS Platinum
ErP 2014 Lot 3
Yes
Operating Temperature
0-50°C
Power Good Signal
100 - 150 ms
Hold Up Time
= 16ms
MTBF
>100,000 Hours
Protections
OPP, OVP, OTP, OCP, SCP, UVP, Surge and Inrush Protection
Regulatory
cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.)
ATX 24 Pin Connectors
1
EPS 4+4 Pin Connectors
1
EPS 8 Pin Connector
1
SATA Connectors
16
Peripheral 4 Pin Connectors
4
PCI-e 6+2 Pin Connectors
5
12V-2x6 Connectors
2
Series
V Platinum Series
80 Plus
Platinum
Modular
Fully Modular
Wattage
1600W
